FRIWO | UK

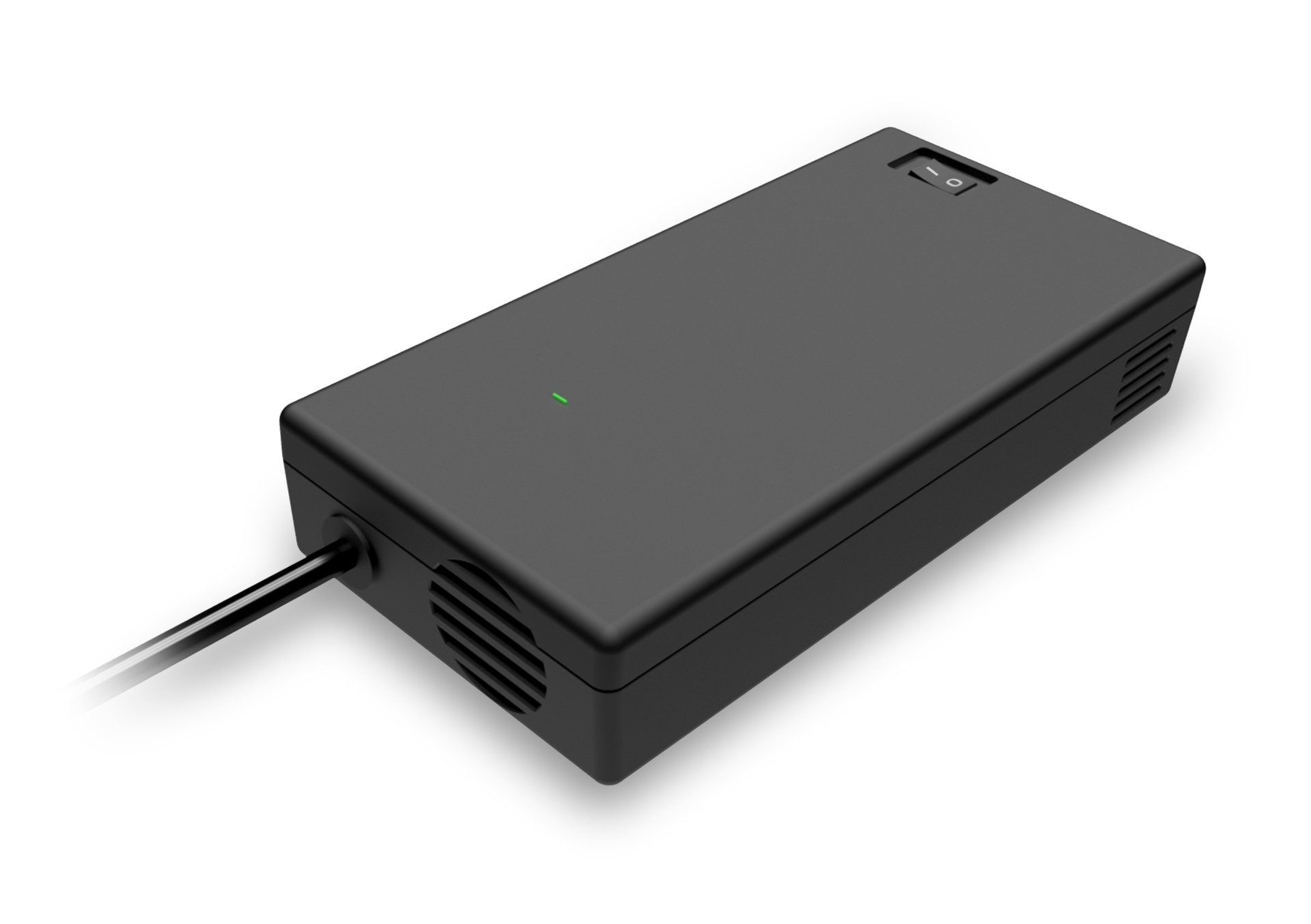

FSP400-KAAM1

FSP400 400W Medical Desktop Power Supply


FSP400-KxAM1


'x' Stands for output


D = 18V / 22.23A

A = 24V / 16.67A

K = 28V / 14.29A

E = 36V / 11.12A

F = 48V / 8.34A


Input Voltage:   90 - 264V AC (±10%)


Output voltage:   Various (see table below)


Frequency:   50 - 60Hz


Leakage Current:   ≤ 300µA


Efficiency:   > 85%

Medical Standard:   IEC60601-1


Safety Class:   I


Overload & Overvoltage protection


Continuously short circuit proof


RoHs Compliant

PSU Dimensions:   120 x 250 x 50 mm


Weight:   1.5Kg


Plug Connector:   AC C14 input


DC output:   Molex

AVAILABLE OUTPUTS
Model Number Output Voltage V Current A Ripple & Noise Efficiency @ 400W 115/230 VAC
FSP400-KDAM1 18 22.23 180 mV 85 / 89 %
FSP400-KAAM1 24 16.67 240 mV 86 / 89 %
FSP400-KKAM1 28 14.29 280 mV 86 / 89 %
FSP400-KEAM1 36 11.12 360 mV 86 / 89 %
FSP400-KFAM1 48 8.34 480 mV 87 / 89 %

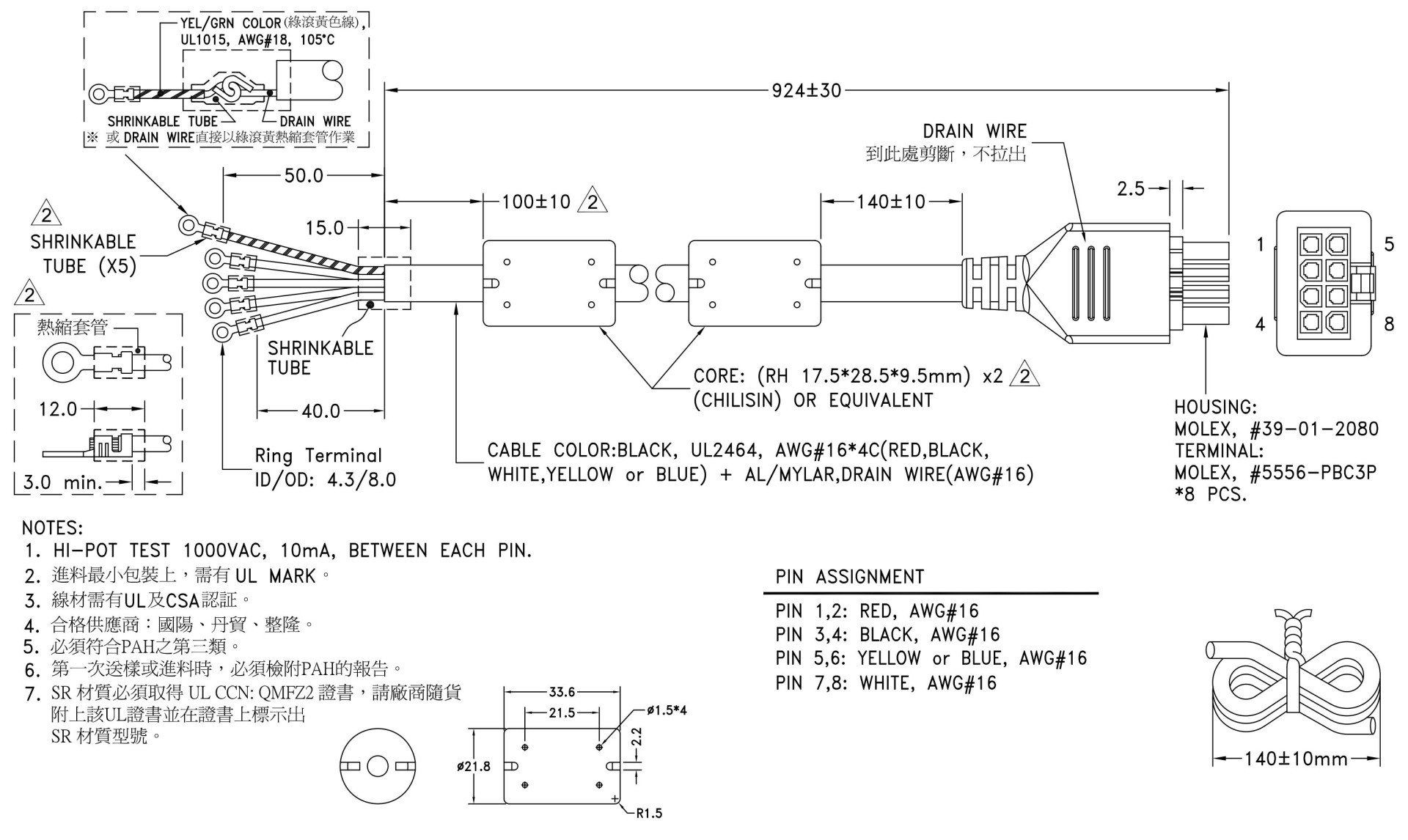

DC Output Cable Specification

A black and white drawing of a building with a lot of numbers on it
Required Accessories

For the operation of this device you need a C13 cord compatible with the C14 Socket.
