About our Lithium Ion Battery Packs
In addition to the UN38.3 approval, which is required for battery transport, selected battery solutions of the FRIWO standard portfolio have now also been approved in accordance with safety standard IEC 62133. This standard imposes high demands and tests in terms of safe operating of gas-tight batteries. Among other things, vibration and shock tests are conducted with a peak acceleration of 150gn.
Particularly battery packs for medical applications have to meet special requirements. A stable power supply for mobile and stationary applications must always be ensured, even under difficult conditions. Life-saving and life-sustaining devices such as defibrillators and respirators, for example, increasingly focus on lithium-ion technology with reliable battery solutions. As a consequence, specific standards
As a system supplier, Haredata offers both chargers and battery packs. In addition to our range of standard solutions, we can design and manufacture custom solutions for stationary and mobile applications. And they all carry the “Made in Germany” label.
FRIWO’s standard portfolio uses premium cells. Our battery packs are equipped with an appropriate protective circuit, which monitors the charging and discharging process, reducing the stress on cells and significantly extending the life of the pack. FRIWO also offers solutions with active cell balancing, to ensure maximum use of capacity. Combined with FRIWO chargers, this results in an optimally balanced overall system.
NEW!
Lithium Ion Battery Packs
New BAK Cells | Updated Approvals | Increased Capacity!
1S2P
Li-Ion Battery Pack
Configuration: 1 Series 2 Parallel
Nominal Voltage: 3.6V
Nominal Capacity: 5800mAh
Nominal Energy: 20.8Wh
2S1P
Li-Ion Battery Pack
Configuration: 2 Series 1 Parallel
Nominal Voltage: 7.2V
Nominal Capacity: 2900mAh
Nominal Energy: 20.8Wh
3S1P
Li-Ion Battery Pack
Configuration: 3 Series 2 Parallel
Nominal Voltage: 10.8V
Nominal Capacity: 2900mAh
Nominal Energy: 31.32Wh
3S2P
Li-Ion Battery Pack
Configuration: 3 Series 2 Parallel
Nominal Voltage: 10.8V
Nominal Capacity: 5800mAh
Nominal Energy: 62.64Wh
4S1P
Li-Ion Battery Pack
Configuration: 4 Series 1 Parallel
Nominal Voltage: 14.4V
Nominal Capacity: 2900mAh
Nominal Energy: 41.76Wh
7S3P
Li-Ion Battery Pack
Configuration: 7 Series 3 Parallel
Nominal Voltage: 25.2V
Nominal Capacity: 8700mAh
Nominal Energy: 219.24Wh
7S4P
Li-Ion Battery Pack
Configuration: 7 Series 4 Parallel
Nominal Voltage: 25.2V
Nominal Capacity: 11,600mAh
Nominal Energy: 292.32Wh
Need a Custom Battery Pack?
Can't find a pre-approved solution for you?
Have a OEM Requirement? Let us know!
PLEASE NOTE!
As Samsung gradually discontinues their previous lithium ion 18650 cells, a few of the packs listed below may not be accessible or may necessitate a specific MOQ.
To ensure long-term compatibility, we recommend checking out the newly approved BAK battery packs mentioned above!
Nominal Voltage: 3.7 V
Capacity: 5200 mAh
Nominal Voltage: 7.4 V
Capacity: 2600 mAh
Nominal Voltage: 11.1 V
Capacity: 2600 mAh
Nominal Voltage: 11.1 V
Capacity: 5200 mAh
Nominal Voltage: 14.6 V
Capacity: 2850 mAh
Nominal Voltage: 14.6 V
Capacity: 5700 mAh
Nominal Voltage: 18.25 V
Capacity: 2850 mAh
Nominal Voltage: 18.25 V
Capacity: 5700 mAh
Nominal Voltage: 25.55 V
Capacity: 2850 mAh
Nominal Voltage: 25.55 V
Capacity: 5700 mAh
Nominal Voltage: 29.2 V
Capacity: 2850 mAh
Nominal Voltage: 36.5 V
Capacity: 8550 mAh

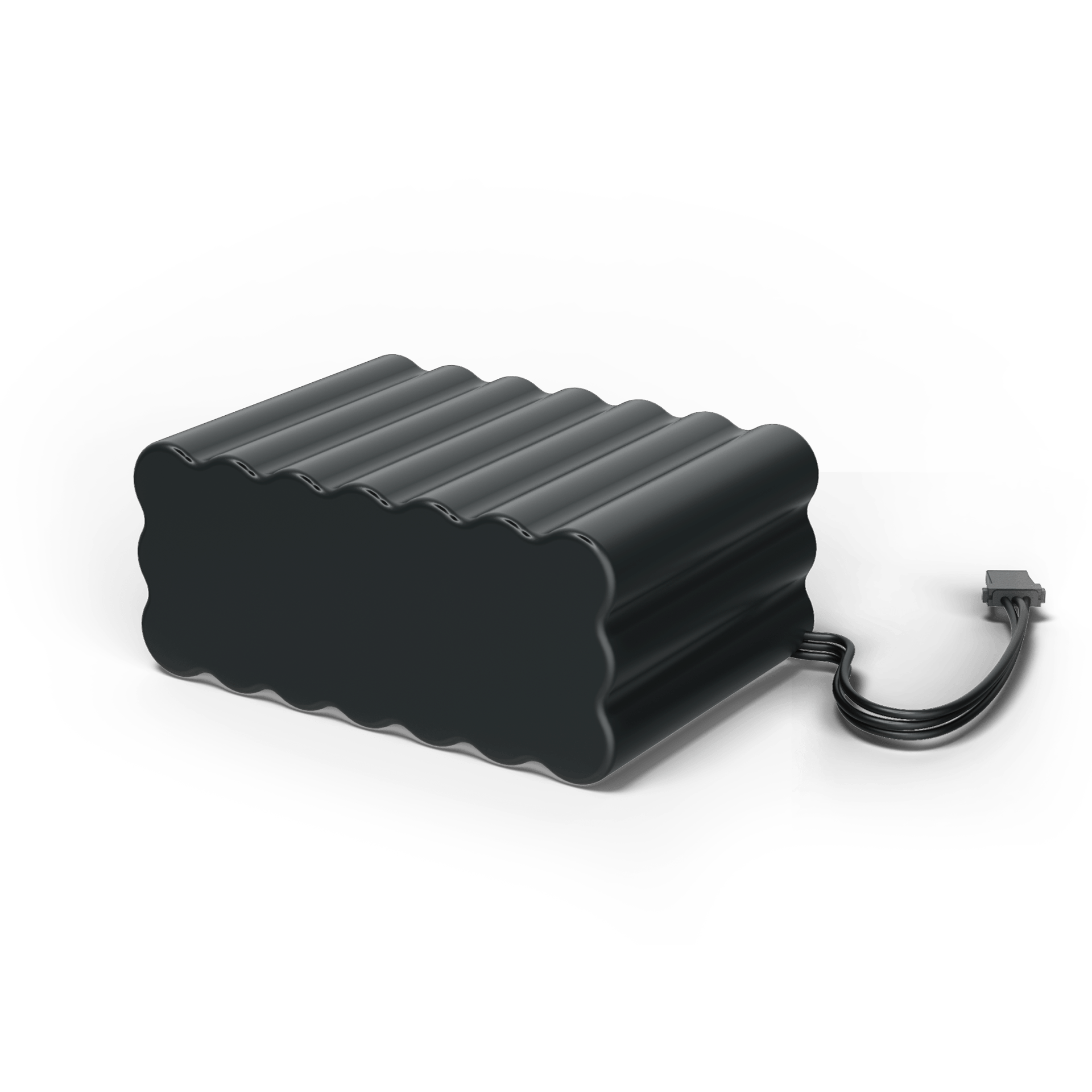

Check out our 7S3P Battery Pack
8700Ah Capacity with built in SMbus Communication!

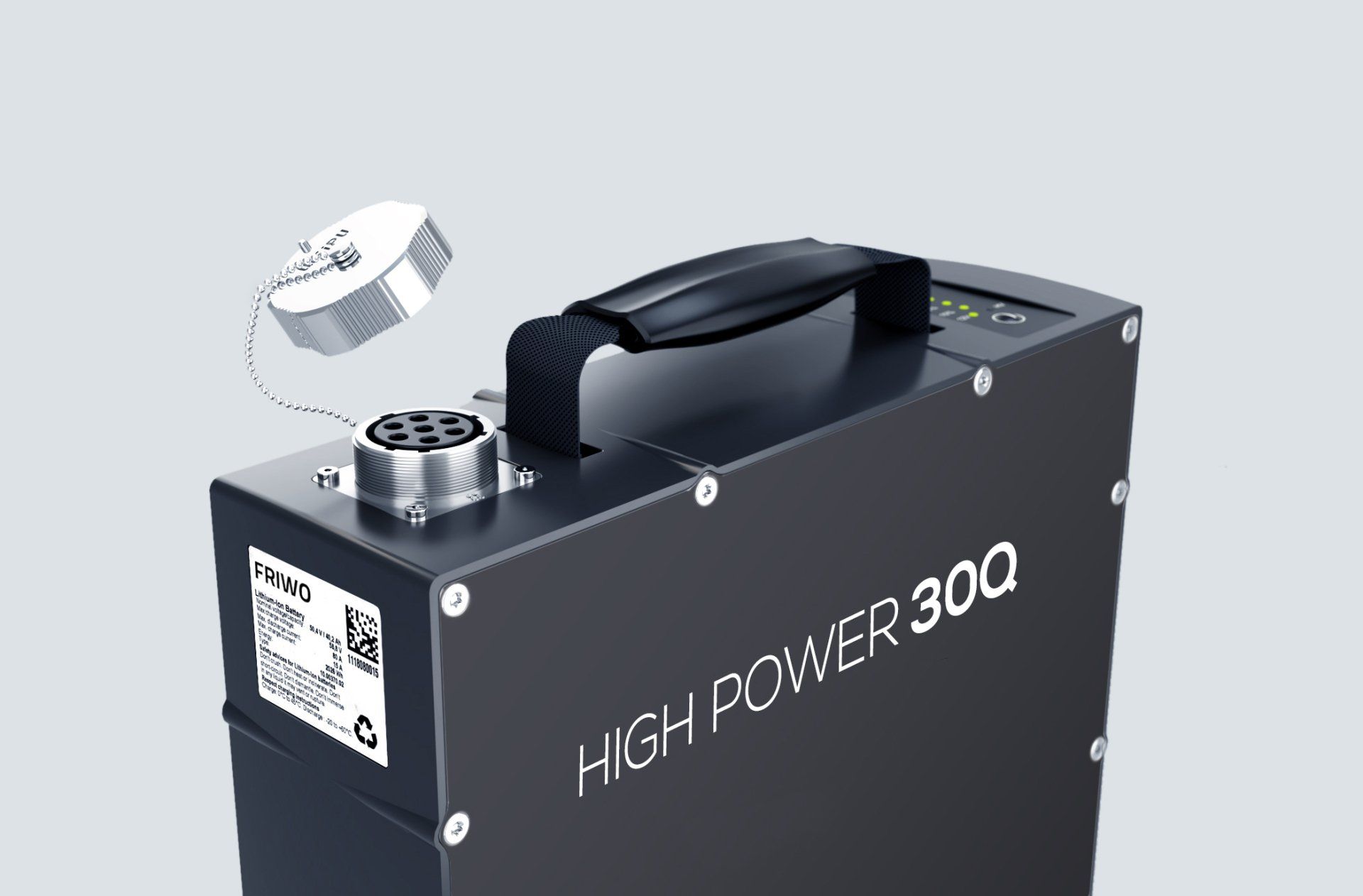

Lithium Ion Battery Canisters
- Perfect for Light Electric Vehicles -
Our battery packs provide the power for Europe’s largest scooter rental fleets, where the requirements and needs are extremely diverse.
Thanks to specially developed BMS electronics and associated software, we can react extremely flexibly to specific customer requirements and special functions.
This is where our battery packs have already proven their safe continuous operation and long durability over more than 5,000,000km and more than 150,000 hours of charging.
GEN2 IS HERE!
This new design features our BMS Gen2, capable of delivering more power for longer!
Encapsulated in our new watertight IP65 housing with built in heat sink, not only the aesthetics are an
upgrade the durability out performs the previous generation, perfect for demanding environments.
MORE POWER | MORE CONTROL | IP65 | UN38.3
AND MORE!
First Generation
EV Battery Packs
14S12P Li-Ion Battery Pack
ECO PACK - Samsung INR 18650 35E Cells
Energy: 2026 Wh
Nominal voltage: 50.4 V
Capacity: 40.2 Ah
Max. Discharge Current: 60 A / Peak 150 A
Standby: <0.1A
Digital input: Key switch (Enable)
Charger Communication: CAN-Bus
Diagnostic interface: USB, CAN
Dimensions: 268mm x 76mm x 378mm
Weight: 11kg
