SNAP IN DC CONNECTORS

Offering flexibility for your next design!

Our FOX series of power supplies come distribution lead, any of the connectors below can be fitted into socket in the polarity you require, location shown by the Orange arrow .

Friwo offers standard low voltage plug-in connections like coaxial and jack connectors, along with custom connecting cables. Wire diameter typically ranges from 24AWG to 16AWG, and both flat and round cables are suitable. The displayed plugs are just a sample of the full range available.

For custom designs or other dimensions, contact us for more options.

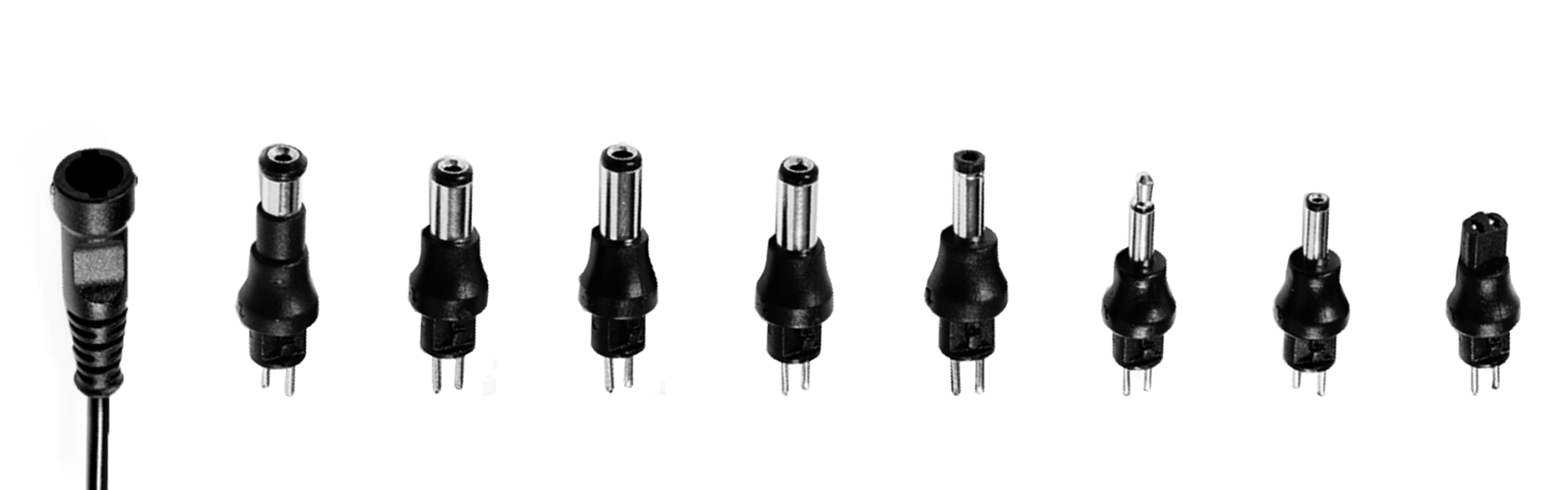

Straight DC Connectors

A bunch of different types of DC plugs are lined up in a row on a white background.

BARREL CONNECTORS

Ø Outer	Ø Inner	Length mm	Part No
3.5	1.3	9.5	1807699
4.0	1.7	9.5	1822557
4.0	1.7	11.0	1811994
4.8	1.7	9.5	1822559
5.5	2.1	9.5	1807700
5.5	2.1	11.5	1807701
5.5	2.1	14.0	1807697
5.5	2.5	9.5	1807698
5.5	2.5	11.5	1807702
5.5	3.3	9.5	1822561

DC JACK CONNECTORS

Ø Outer	Length mm	Part No
2.5	13	1807704
3.5	14	1807705

2-PIN TEXAS PLUG: 1807706

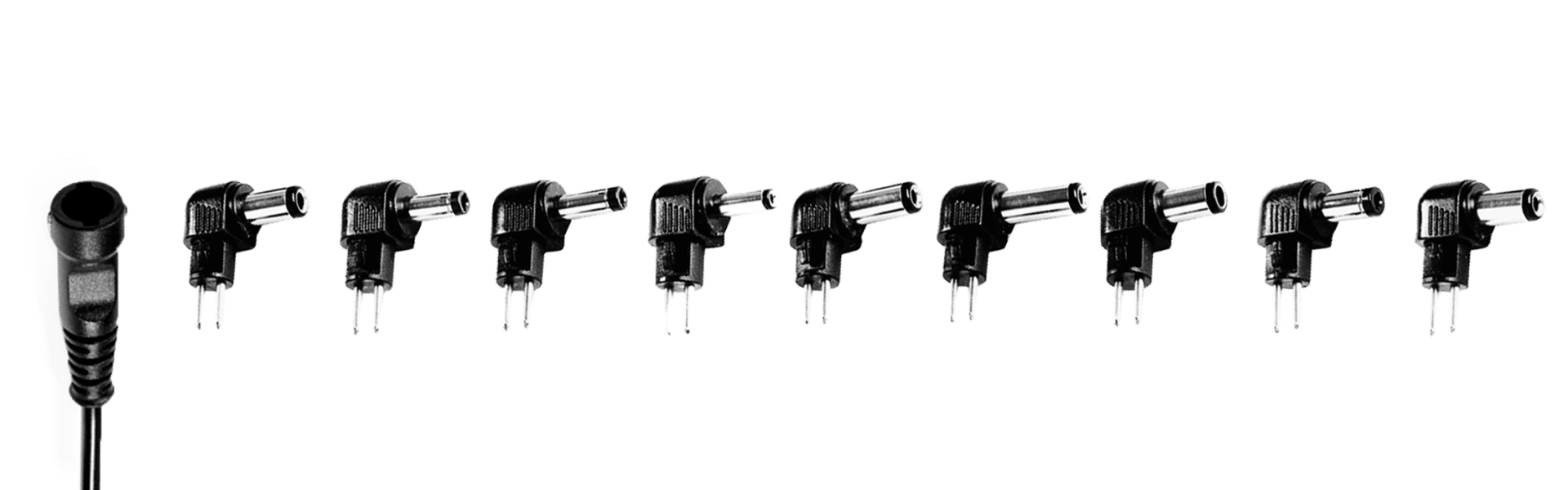

Right Angled DC Connectors

BARREL CONNECTORS

Ø Outer	Ø Inner	Length mm	Part No
3.5	1.3	9.5	1822478
4.0	1.7	9.5	1822558
4.0	1.7	11.0	1822482
4.8	1.7	9.5	1822560
5.5	2.1	9.5	1822479
5.5	2.1	11.5	1822480
5.5	2.1	14.0	1822476
5.5	2.5	9.5	1822477
5.5	2.5	11.5	1822481
5.5	3.3	9.5	1822562

ANGLED DC JACK CONNECTORS

Ø Outer	Length mm	Part No
2.5	13	1822484
3.5	14	1822485

2-PIN TEXAS PLUG: 1822486

HOW TO FIT THE CORRECT POLARITY...

Positive (+) Center

Negative (-) Center

Arrow on connector lines up with the socket and denotes outer barrel polarity

Slide title

Write your caption here

Button

Moulded DC Leads

All Snap-in DC plugs shown above are available as a moulded cable for that extra premium feel!

Also Available:

Mini USB
Micro USB
USB TYPE-C
Texas (2 & 3 Pole)

SEE HERE >>

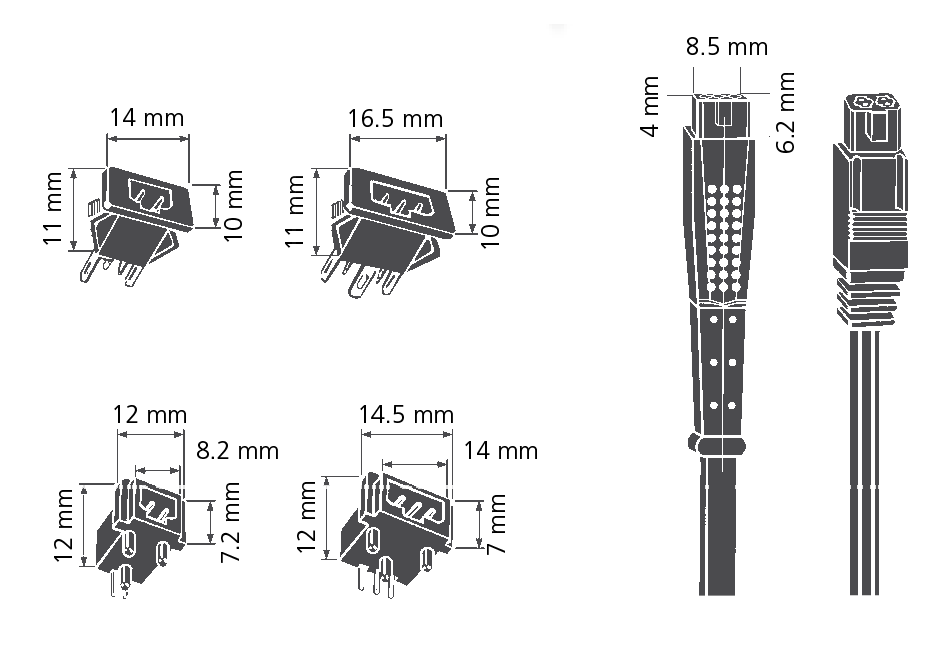

TEXAS Sockets
