PP Series Pb Charger
FW-Type: FW7118M
Medical Grade Fixed Plug Lead Acid Charger
MPP30 PB CHARGER

Input Voltage:   100 - 240V AC (±10%)


Output voltage:   Various (see table below)


Frequency:   50 - 60Hz


Leakage Current:   ≤ 100µA


Stand-by:   ≤ 0.1W


MTBF:   200,000 hours acc. Mil217F (based on calculations at 120Vac/60Hz & 230Vac/50Hz, ambient 25°C and 100% load)

(The MTBF are theoretically determined values, which does not guarantee the lifetime of the product or of the electrolytic capacitors)

Operating Temperature:   0 - 40°C


Storage Temperature:   -25 - 70°C


Operating Altitude:   3000m


Humidity:   10 - 90%


Standards:   IEC60335-2-29, IEC60601-1


Approvals:   EU, USA, AUS, JPN


Safety Class:   II


EMC:   EN 55022, EN 55024


Overload & Overvoltage protection


Continuously short circuit proof


DOE Level VI Efficiency

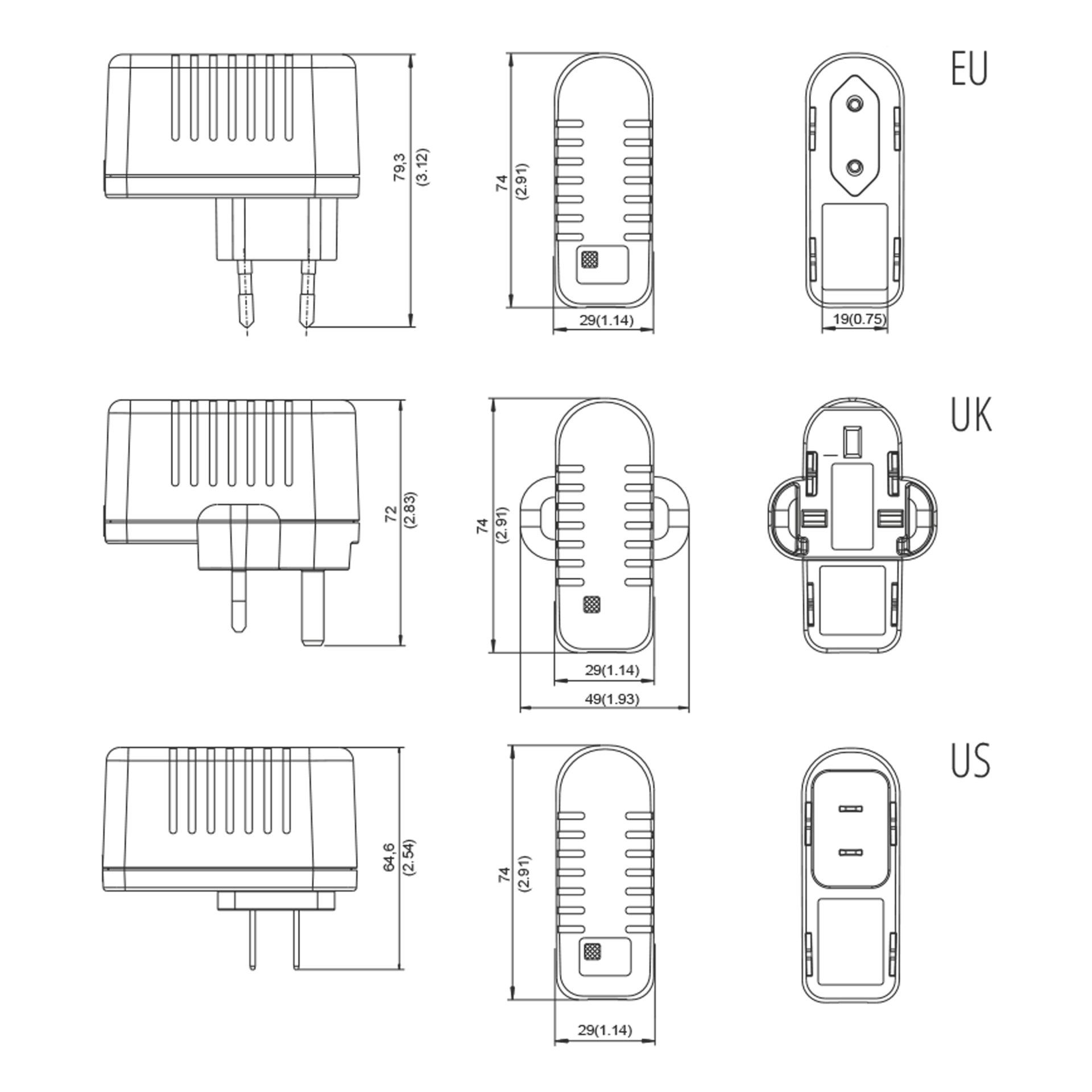

PSU Dimensions:   See above image


Weight:   Various


Casing:   Double Safety, Snapped & Welded


Plug Connector:   Fixed AC


DC output:   Secondary adapter system

View Accessories
AVAILABLE OUTPUTS
GET IN TOUCH FOR FURTHER INFORMATION AND DATASHEETS

Number of Cells Output Voltage V Current mA Fixed AC Plug FW Number Part Number
3 6 900 EU FW7118M/06/EU 1890125
3 6 900 UK FW7118M/06/UK 1824106
3 6 900 US FW7118M/06/US 1824107
6 12 900 EU FW7118M/12/EU 1824396
6 12 900 US FW7118M/12/US 1825090
Required Accessories

For the operation of this device you need a DC secondary adapter.

These can be found here: ACCESSORIES
