FRIWO | UK

UP30

FW-Type: FW7801.1

30 Watt Industrial Grade Water Proof Power Supply

A black and white line drawing of a factory.

Industrial / Home / Office Grade

It is a black and white icon of a power supply with UK plug.

Flush Mounted (In-Wall)

IP67 Rated Power Supply
A black power supply is sitting on a white surface
Tick

Efficiency Level VI

Tick

Overload Protection

Tick

Overvoltage Protection

Tick

Short Circuit Proof

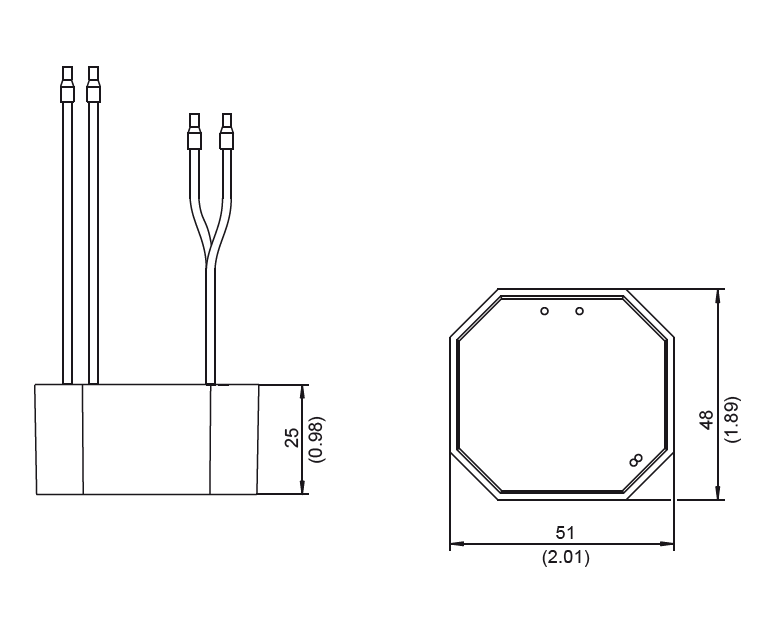

Dimensions

A black and white drawing of a power supply with measurements on a white background.

Technical Data

Input voltage 100 – 240 V ± 10 %
Frequency 50 – 60 Hz
Input current 580 mA
Leakage current ≤ 10 μA
Output voltage tolerance ± 5 %
MTBF 200.000 h*

* Mil217F based on calculations at 120 VAC / 60 Hz & 230 VAC / 50 Hz,

Ambient temperature 25°C, 100% load

Available Outputs

To access the respective datasheet, just click on the appropriate download button below.

12V 2500mA

FW7801.1

Part Number: 1961859

...V ...mA

Need a Custom Solution?

Just get in touch and see how we can help you!

Environmental specifications

Operating temperature 0 – 70° C
Humidity 10 – 95 %
Storage temperature -20 – 70° C

Safety specifications

Safety Standard IEC 61558-1-16
Approvals UK, EU
EMC EN 55011, EN 55014-1, EN 55014-2, EN 61000-6-2, EN 61000-6-3

Labels / Certifications

Further approvals possible after consultation.
