FRIWO | UK

UP12

FW-Type: FW7802

12 Watt Industrial Grade Water Proof Power Supply

A black and white line drawing of a factory.

Industrial / Home / Office Grade

It is a black and white icon of a power supply with UK plug.

Flush Mounted (In-Wall)

IP67 Rated Power Supply

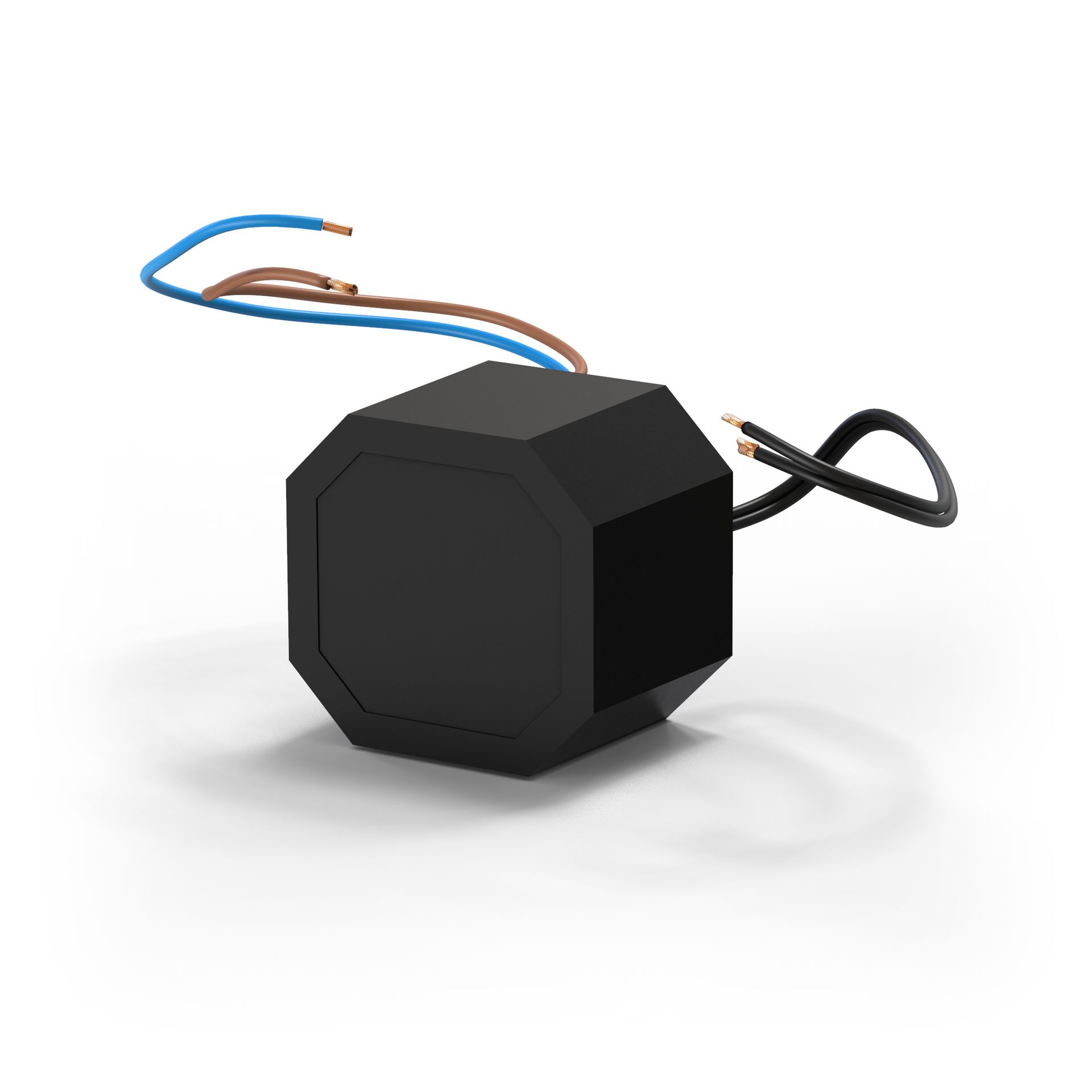

A black power supply is sitting on a white surface
Tick

Efficiency Level VI

Tick

Overload Protection

Tick

Overvoltage Protection

Tick

Short Circuit Proof

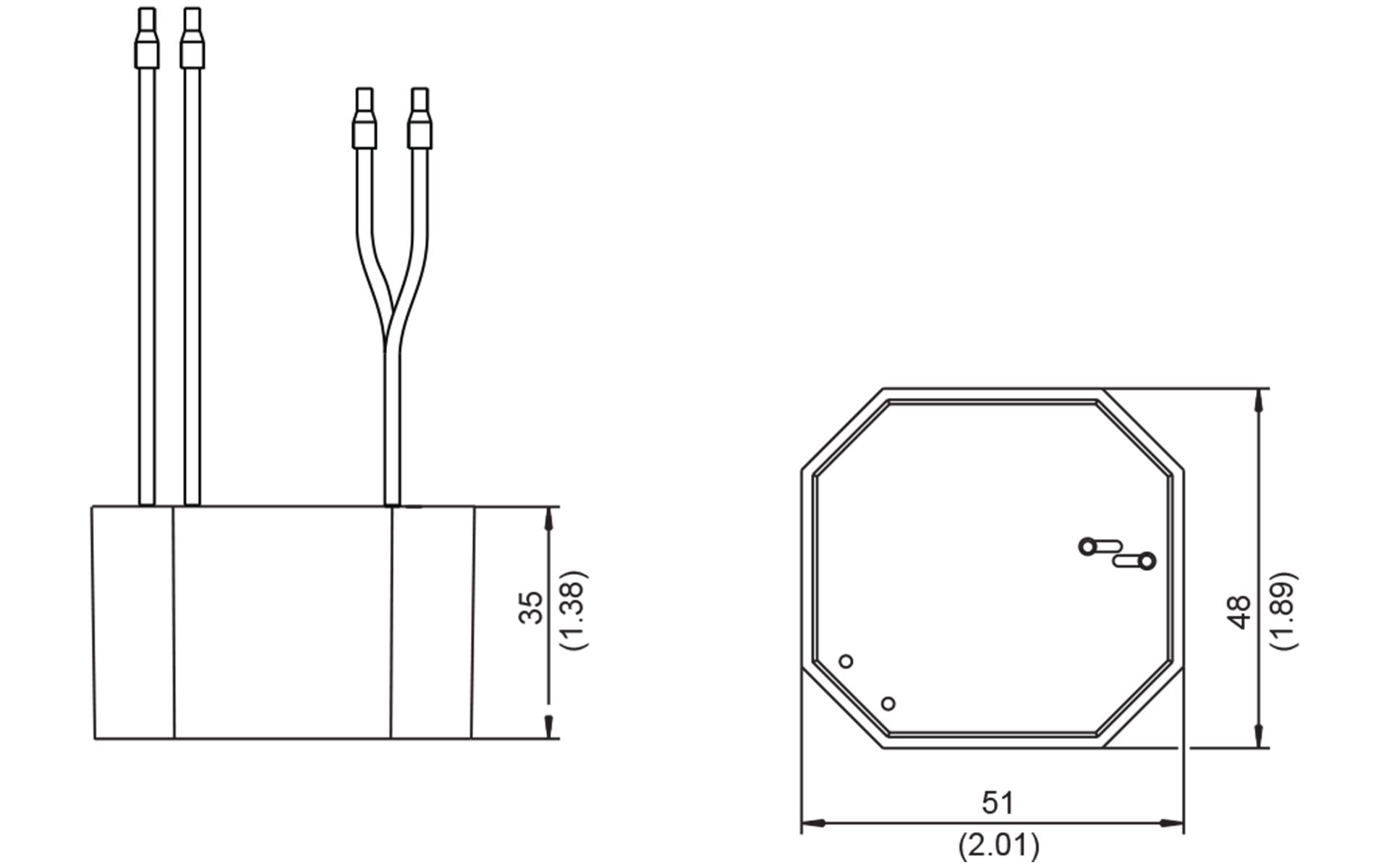

Dimensions

A black and white drawing of a power supply with measurements on a white background.

Technical Data

Input voltage 100 – 240 V ± 10 %
Frequency 50 – 60 Hz
Input current 300 mA
Leakage current ≤ 25 μA
Output voltage tolerance ± 5 %
MTBF 200.000 h*

* Mil217F based on calculations at 120 VAC / 60 Hz & 230 VAC / 50 Hz,

Ambient temperature 25°C, 100% load

Available Outputs

To access the respective datasheet, just click on the appropriate download button below.

12V 1000mA

FW7802/12

Part Number: 1891767

24V 500mA

FW7802/24

Part Number: 1891768

48V

NOT AVAILABLE

Please contact us for details

...V ...mA

Need a Custom Solution?

Just get in touch and see how we can help you!

Environmental specifications

Operating temperature 0 – 40° C
Humidity 10 – 95 %
Storage temperature -20 – 70° C

Safety specifications

Safety Standard IEC61558-1, IEC61558-2-16
Approvals UK, EU, USA
EMC EN 55011, EN 55014-1, EN 55014-2, EN 61000-6-2, EN 61000-6-3

Labels / Certifications

A black and white logo for uk ca on a white background.
A black and white ce logo on a white background.
A black and white logo for ENEC on a white background.
A black and white logo for SIQ on a white background.

Further approvals possible after consultation.


Want to know more about Safety Agencies & Markings?

VIEW BLOG

UP12 | Quote Request

Fill Out This Form And We Will Get In Touch!

Require any assistance?

Contact our experienced specialists to guide you through options and find the perfect solution to power your success!

Contact Us

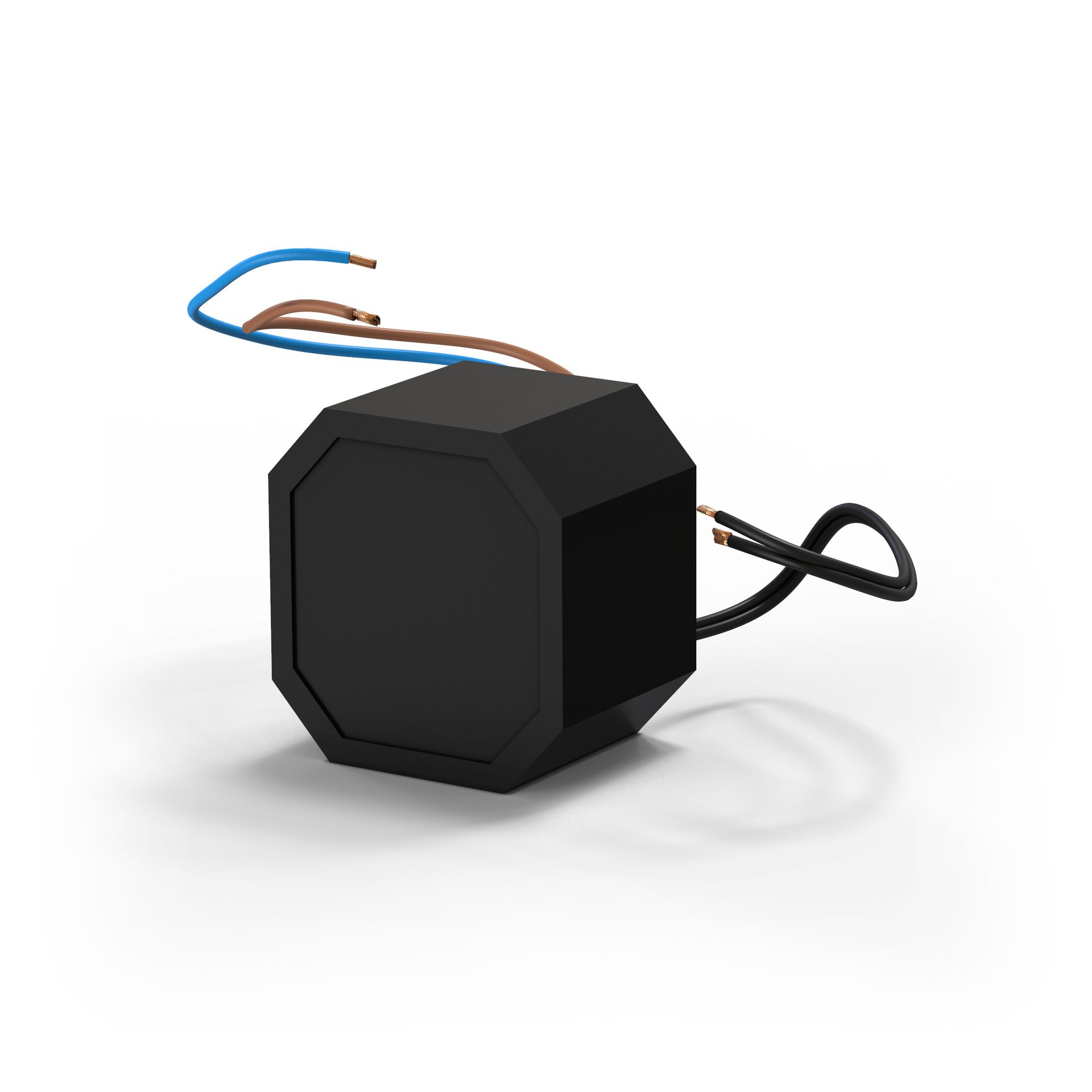

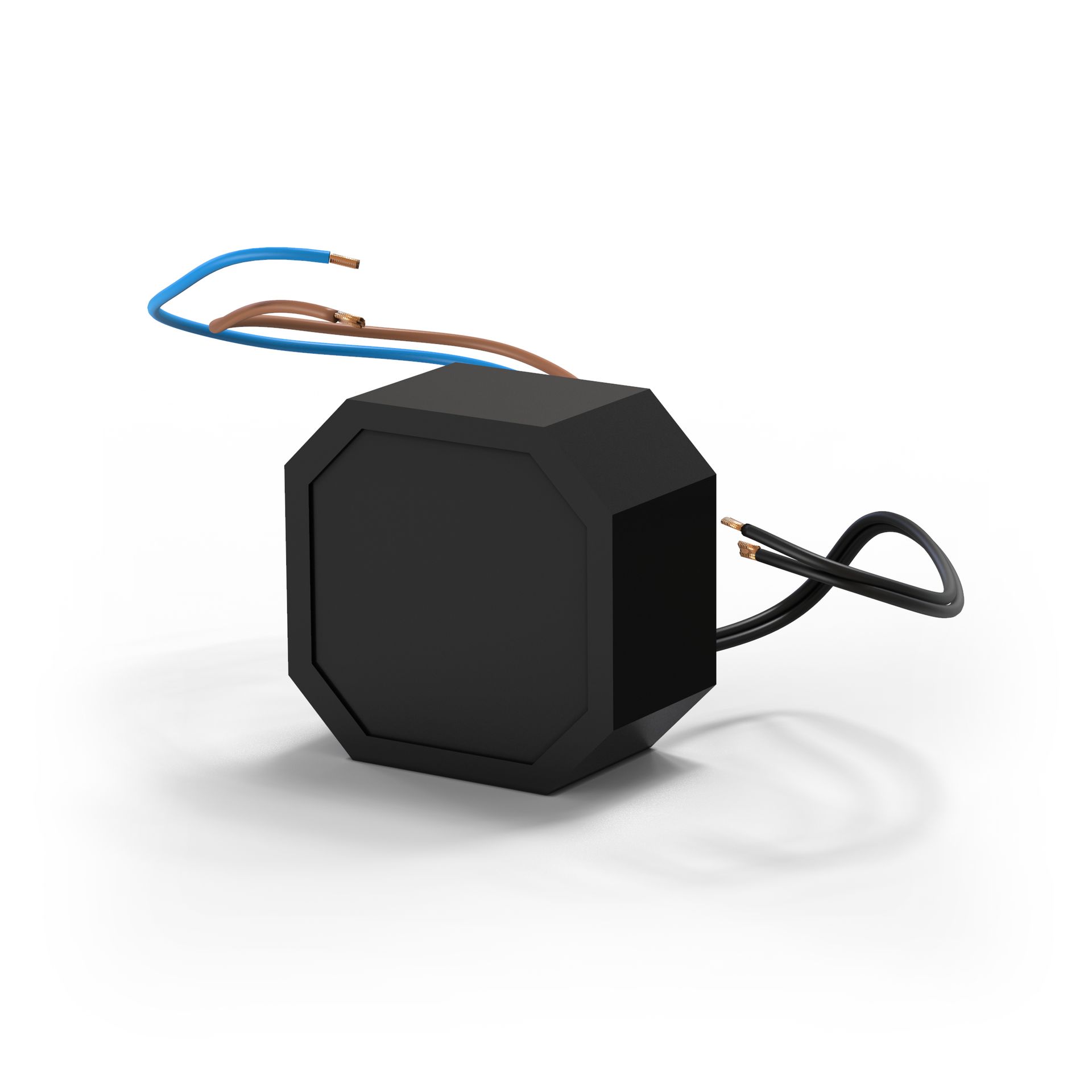

Units Available in this Range
