FRIWO FW8000 FOX12
DT150-M
FW-Type: DT150M

150 Watt Medical Grade Desktop Power Supply

Input Voltage:   100 - 240V AC (±10%)


Output voltage:   Various (see table below)


Frequency:   50 - 60Hz


Leakage Current:   ≤ 100µA


Stand-by:   ≤ 0.1W


MTBF:   200,000 hours acc. Mil217F (based on calculations at 120Vac/60Hz & 230Vac/50Hz, ambient 25°C and 100% load)

(The MTBF are theoretically determined values, which does not guarantee the lifetime of the product or of the electrolytic capacitors)

Operating Temperature:   0 - 40°C


Storage Temperature:   -40 - 70°C


Operating Altitude:   3000m


Humidity:   10 - 95%


Layout acc. to safety standard IEC 60601-1


Approvals EU, USA, AUS, JPN (FOX30-DM)


Safety class I


EMC EN 55024, EN 55032, EN 60601-1-2


Medical protection 2 x MOPP


Continuously short circuit proof


DOE Level VI Efficiency

PSU Dimensions:   62.0 x 210.0 x 38.5 mm


Weight:   622 g


Casing:   Double Safety, Snapped & Welded


AC Connector:    3 pole, IEC60320-C14


DC output:   Lead with coax connector 11.0 x 6.5 x 3.0 mm

AVAILABLE OUTPUTS
CLICK TILES BELOW TO DOWNLOAD RELEVANT DATASHEET
A blue 24v logo on a white background
A blue letter v with three dots on a white background.

CUSTOM OUTPUT

Available for OEM Projects

that meet the required MOQ

Button
Required Accessories

For the operation of this device you need a C13 cord compatible with the C14 Socket.


NEED SOME HELP?
Just get in touch & speak to one of our experts.

We will gladly guide you through our range and find the perfect product to power your success!
NEED A QUOTE?
Have you found the product for you? Then Great!

Just let us know the Part Number or FW Number, your required connector and we will do the rest!
NEED LESS POWER?
Use our Quick & Handy product selector below!
Down Arrow
FOX 6 POWER SUPPLY

FOX30-DM

CLICK TO VIEW

Button

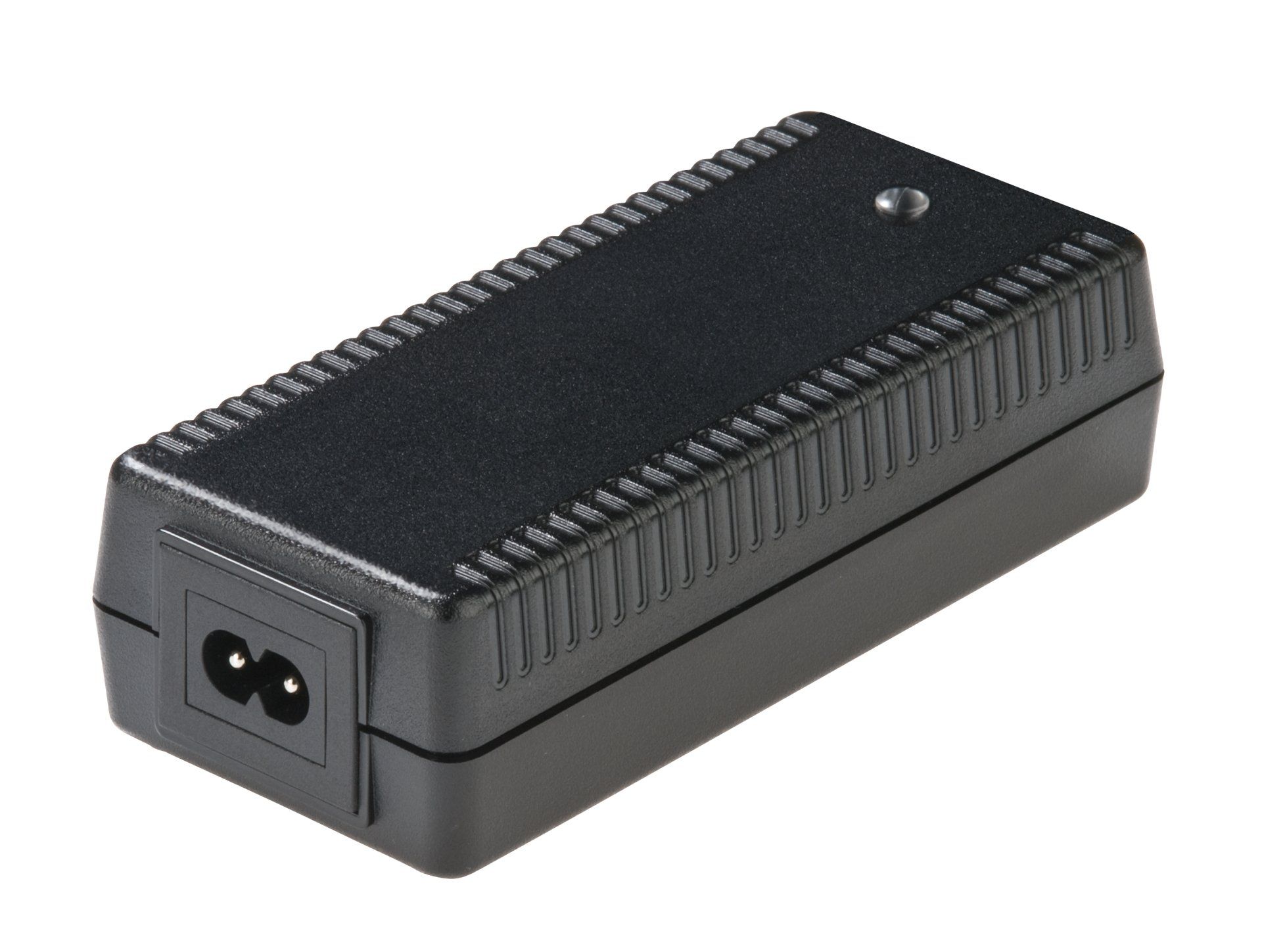

FOX 12 POWER SUPPLY

DT50-M

CLICK TO VIEW

Button

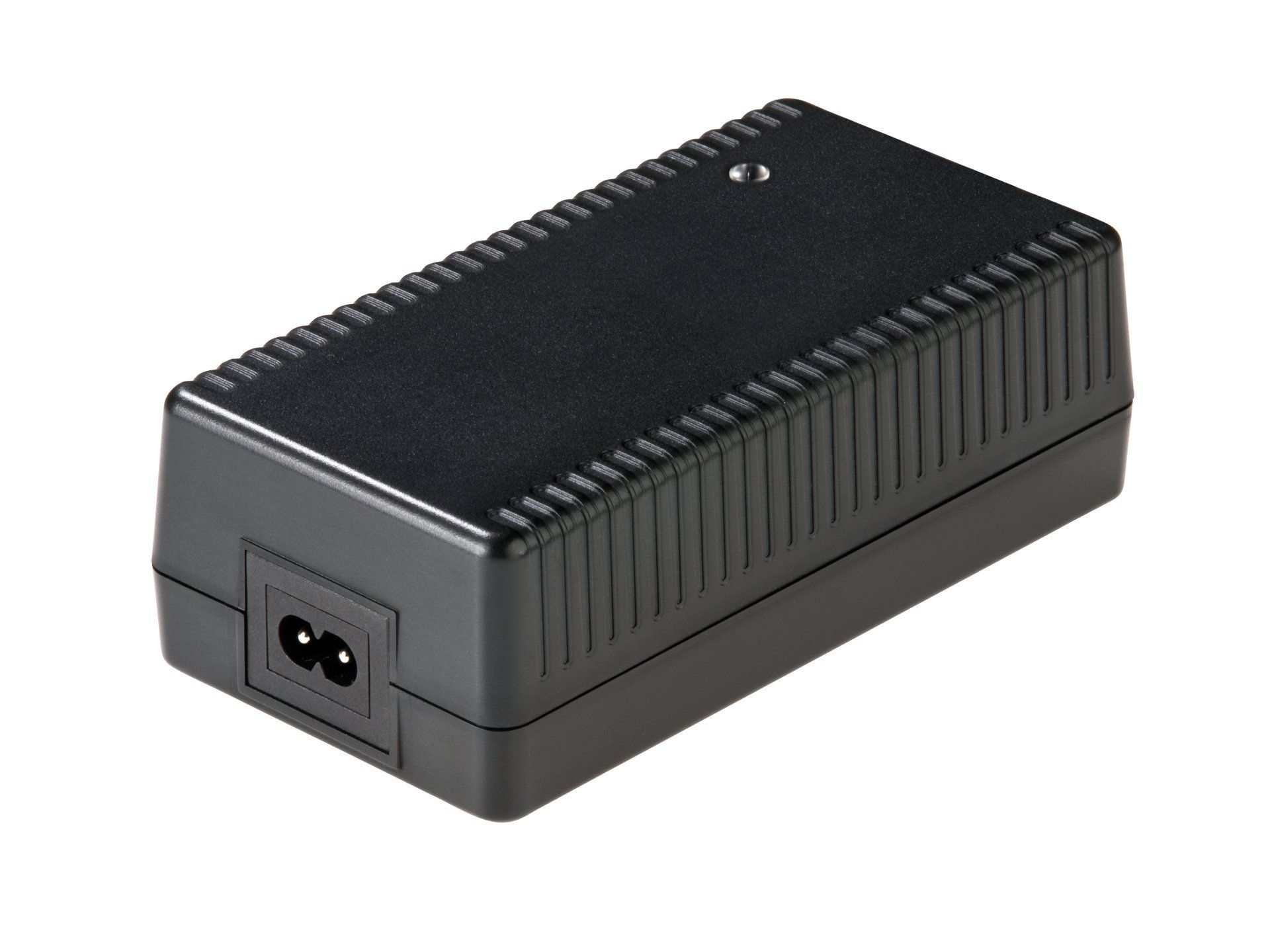

FOX 18 POWER SUPPLY
