FRIWO | UK

FOX12-X

FW-Type: FW8000

12 Watt Industrial Grade Interchangeable Power Supply

A black and white line drawing of a factory.

Industrial / Home / Office Grade

Black and white drawing of an interchangeable power supply

Interchangeable Plugs

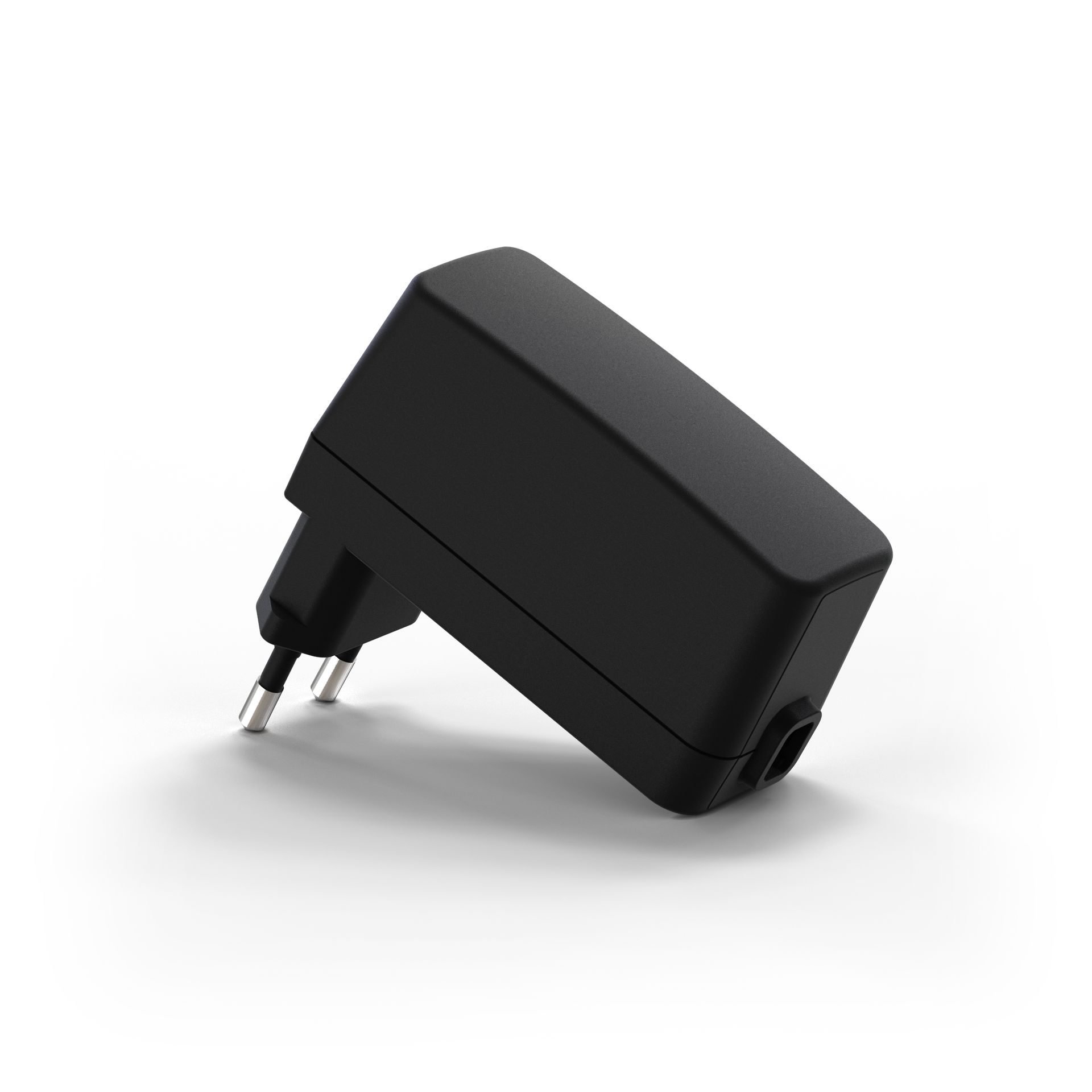

A black power supply is sitting on a white surface

*PSU Shown with EU plug fitted

Tick

Efficiency Level VI

Tick

Overload Protection

Tick

Overvoltage Protection

Tick

Short Circuit Proof

Dimensions

A black and white drawing of a power supply with measurements on a white background.

Technical Data

Input voltage 100 – 240 V ± 10 %
Frequency 50 – 60 Hz
Input current 300 –150 mA
Leakage current ≤ 200 μA
Output voltage tolerance ± 5 %
Turn-on delay ≤ 2 s
Stand-by ≤ 0.1 W
Efficiency DoE: Energy Efficiency level VI
MTBF 200.000 h*

* Mil217F based on calculations at 120 VAC / 60 Hz & 230 VAC / 50 Hz,

Ambient temperature 25°C, 100% load

Available Outputs

To access the respective datasheet, just click on the appropriate download button below.

5V 2000mA

FW8000/05

Part Number: 1896623

6V 2000mA

FW8000/06

Part Number: 1896624

7.5V 1400mA

FW8000/08

Part Number: 1896625

9V 1300mA

FW8000/09

Part Number: 1896626

12V 1000mA

FW8000/12

Part Number: 1896985

15V 800mA

FW8000/15

Part Number: 1896628

18V 660mA

FW8000/18

Part Number: 1896629

24V 500mA

FW8000/24

Part Number: 1896630

48V 250mA

NOT AVAILABLE

Please contact us for details

...V ...mA

Need a Custom Solution?

Just get in touch and see how we can help you!

Medical Grade

Need Medical Approval?

This power supply is also available for medical use.

Also Available As a NEO!

Available Voltages: 5V - 12V - 24V

Take Me There!
12W Friwo Power Supply

Environmental specifications

Operating temperature 0 – 40° C
Humidity 10 – 95 %
Storage temperature -40 – 70° C
Operating altitude 5000 m

Safety specifications

Safety Standard IEC 62368-1
Approvals UK, EU, USA, AUS, JPN
Safety Class II
EMC EN 55024, EN 55032

Labels / Certifications

Further approvals possible after consultation.


Want to know more about Safety Agencies & Markings?

VIEW BLOG

REQUIRED ACCESSORIES

AC Input Plugs

To ensure the seamless functioning of this device, you will require a AC adapter that is compatible with the specific country's power requirements.


AC Input Plugs
A black and white drawing of four different types of cables.

DC Output Leads

Check out our range of DC cables and connectors to for your application.

Cant find the one you need?

Just get in touch!



DC Output Leads

FOX12 | Quote Request

Fill Out This Form And We Will Get In Touch!

Require any assistance?

Contact our experienced specialists to guide you through options and find the perfect solution to power your success!

Contact Us

FOX DISTRIBUTION UNITS

With Interchangeable 'Snap-In' DC Connectors

For rapid prototyping, some of our FOX units can come pre-fitted with a 'Distribution Cable'.


This cable has a socket at the end that can accommodate various standard connectors, including Barrel, Jack, and Texas, available in both Straight or Right Angled Variants.


This feature is particularly convenient for products sold via RS Components, as the required connector can be easily clicked into place by the end user. Polarity is indicated by an arrow, and we also provide interchangeable AC plugs.


Of course, we also offer custom and fixed moulded cables!

For this, you will need to select a FOX power supply without a cable pre-fitted, as listed above.

View 'Snap-In' DC Plugs
There are many different types of connectors on the cable.
Voltage Current FW Number Part No [distribution cable] RS Link
5 V 2000 mA FW8000/05 1898115 Purchase Here >>>
5.9 V 2000 mA FW8000/06 1898116 Purchase Here >>>
7.5 V 1400 mA FW8000/08 1898117 Purchase Here >>>
9 V 1300 mA FW8000/09 1898118 Purchase Here >>>
12 V 1000 mA FW8000/12 1897510 Purchase Here >>>
15 V 800 mA FW8000/15 1898120 N/A
18 V 660 mA FW8000/18 1898121 N/A
24 V 500 mA FW8000/24 1898122 Purchase Here >>>
48 V 250 mA FW8000/48 N/A N/A
