FRIWO | UK

FOX160-C

FW-Type: FW8102

160 Watt Industrial Grade Lithium Ion (Li-Ion) Charger

A black and white line drawing of a factory.

Industrial / Home / Office Grade

A black and white icon of a desktop power supplyon a white background.

Desktop Model

Lithium Ion

BATTERY CHARGER

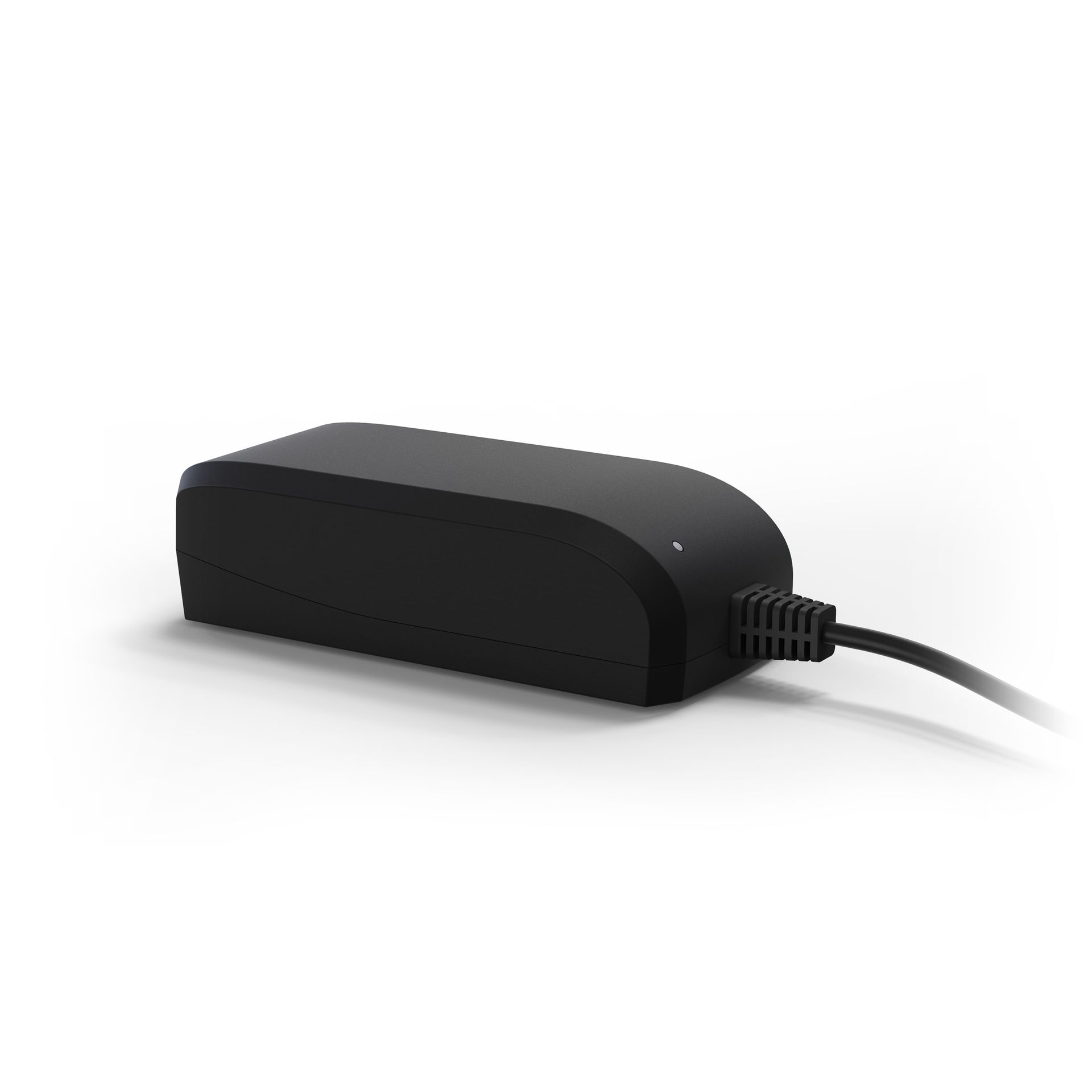

Friwo power supply with EU plug

*PSU Shown with EU plug fitted

Tick

Efficiency Level VI

Tick

Overload Protection

Tick

Overvoltage Protection

Tick

Short Circuit Proof

Dimensions

Power supply drawing

Technical Data

Input voltage 100 – 240 V ± 10 %
Frequency 50 – 60 Hz
Input current 2200 mA
Leakage current ≤ 100 μA
Stand-by ≤ 0.1 W
Efficiency DoE: Energy Efficiency level VI
MTBF 200.000 h*

* Mil217F based on calculations at 120 VAC / 60 Hz & 230 VAC / 50 Hz,

Ambient temperature 25°C, 100% load

Available Outputs

To access the respective datasheet, just click on the appropriate download button below.

10

CELLS

42V 4000mA

FW8102/10/4,2

Part Number: 1897215

...V ...mA

Need a Custom Solution?

Just get in touch and see how we can help you!

Environmental specifications

Operating temperature 0 – 40° C
Humidity 10 – 90 %
Storage temperature -25 – 70° C
Operating altitude 3000 m

Safety specifications

Safety Standard IEC 60950-1, IEC 60065, IEC 60335
Approvals UK, EU, US, AUS, JPN
Safety Class II
EMC EN 55014-1, EN 55014-2-2

Labels / Certifications

Further approvals possible after consultation.
