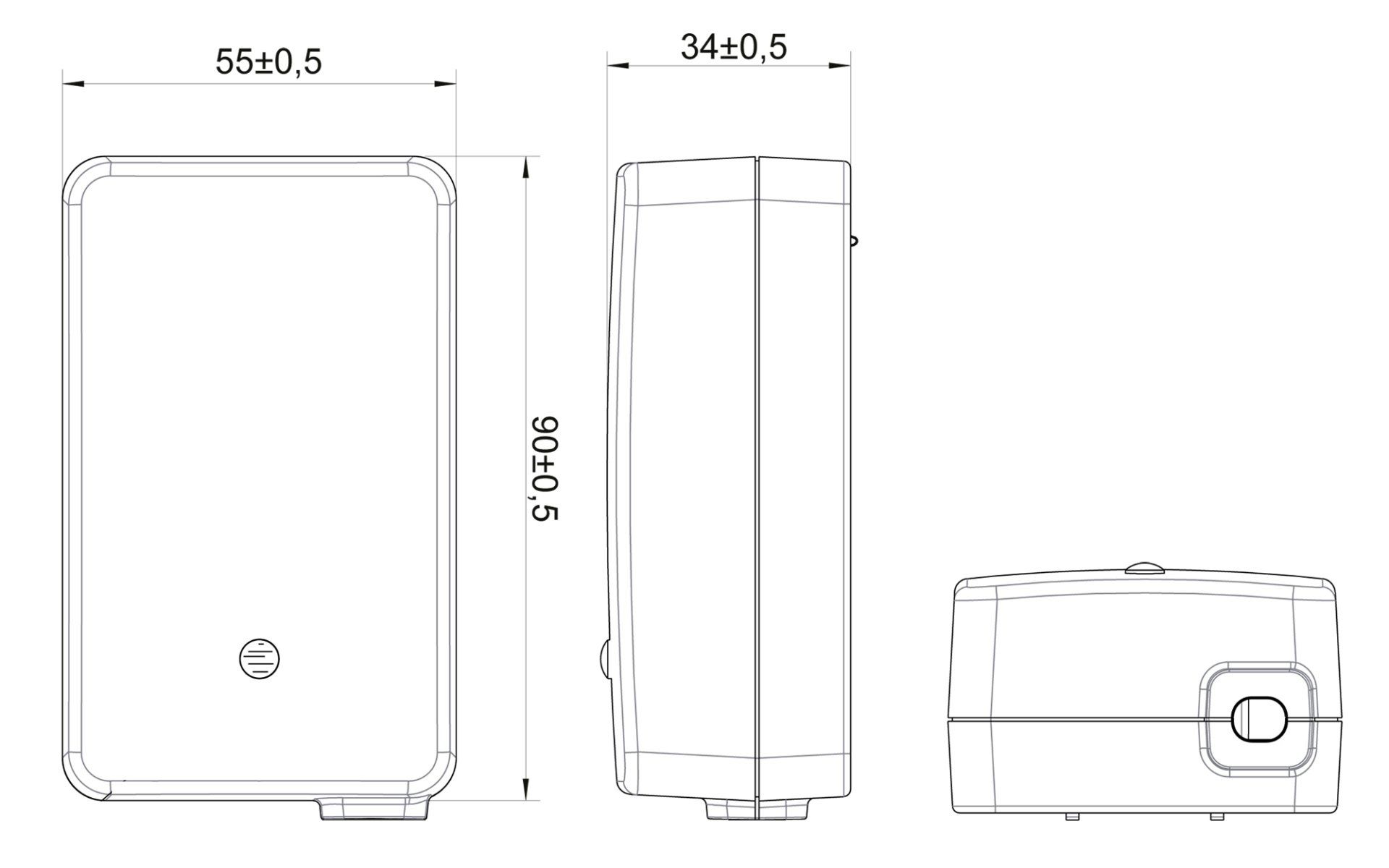

Dimensions
Technical Data
| Input voltage | 100 – 240 V ± 10 % |
|---|---|
| Frequency | 50 – 60 Hz |
| Input current | 600 – 300 mA |
| Leakage current | ≤ 10 μA |
| Output voltage tolerance | ± 5 % |
| Turn-on delay | ≤ 3 s |
| Stand-by | ≤ 0.1 W |
| Efficiency | DoE: Energy Efficiency level VI |
| MTBF | 200.000 h* |
* Mil217F based on calculations at 120 VAC / 60 Hz & 230 VAC / 50 Hz,
Ambient temperature 25°C, 100% load
Available Outputs
To access the respective datasheet, just click on the appropriate download button below.
Environmental specifications
| Operating temperature | 0 – 45° C |
|---|---|
| Humidity | 10 – 95 % |
| Storage temperature | -40 – 70° C |
| Operating altitude | 4000 m |
Safety specifications
| Safety Standard | IEC 60601-1 |
|---|---|
| Approvals | UK, EU, USA, AUS, JPN |
| Safety Class | II |
| EMC | EN60601-1-2:2015 |
| Medical Protection | 2 x MOPP |
REQUIRED ACCESSORIES
AC Input Plugs
To ensure the seamless functioning of this device, you will require a AC adapter that is compatible with the specific country's power requirements.
DC Output Leads
Check out our range of DC cables and connectors to for your application.
Cant find the one you need?
Just get in touch!

FOX30M | Quote Request
Fill Out This Form And We Will Get In Touch!
Require any assistance?
Contact our experienced specialists to guide you through options and find the perfect solution to power your success!
FOX DISTRIBUTION UNITS
With Interchangeable 'Snap-In' DC Connectors
For rapid prototyping, some of our FOX units can come pre-fitted with a 'Distribution Cable'.
This cable has a socket at the end that can accommodate various standard connectors, including Barrel, Jack, and Texas, available in both Straight or Right Angled Variants.
This feature is particularly convenient for products sold via RS Components, as the required connector can be easily clicked into place by the end user. Polarity is indicated by an arrow, and we also provide interchangeable AC plugs.
Of course, we also offer custom and fixed moulded cables!
For this, you will need to select a FOX power supply without a cable pre-fitted, as listed above.
