FRIWO | UK

FOX40-C

FW-Type: FW8104M

40 Watt Medical Grade Lithium Ion (Li-Ion) Charger

A black and white cross icon on a white background.

Medical Grade

Medical power supply with UK plug

Interchangeable Plugs

Lithium Ion

BATTERY CHARGER

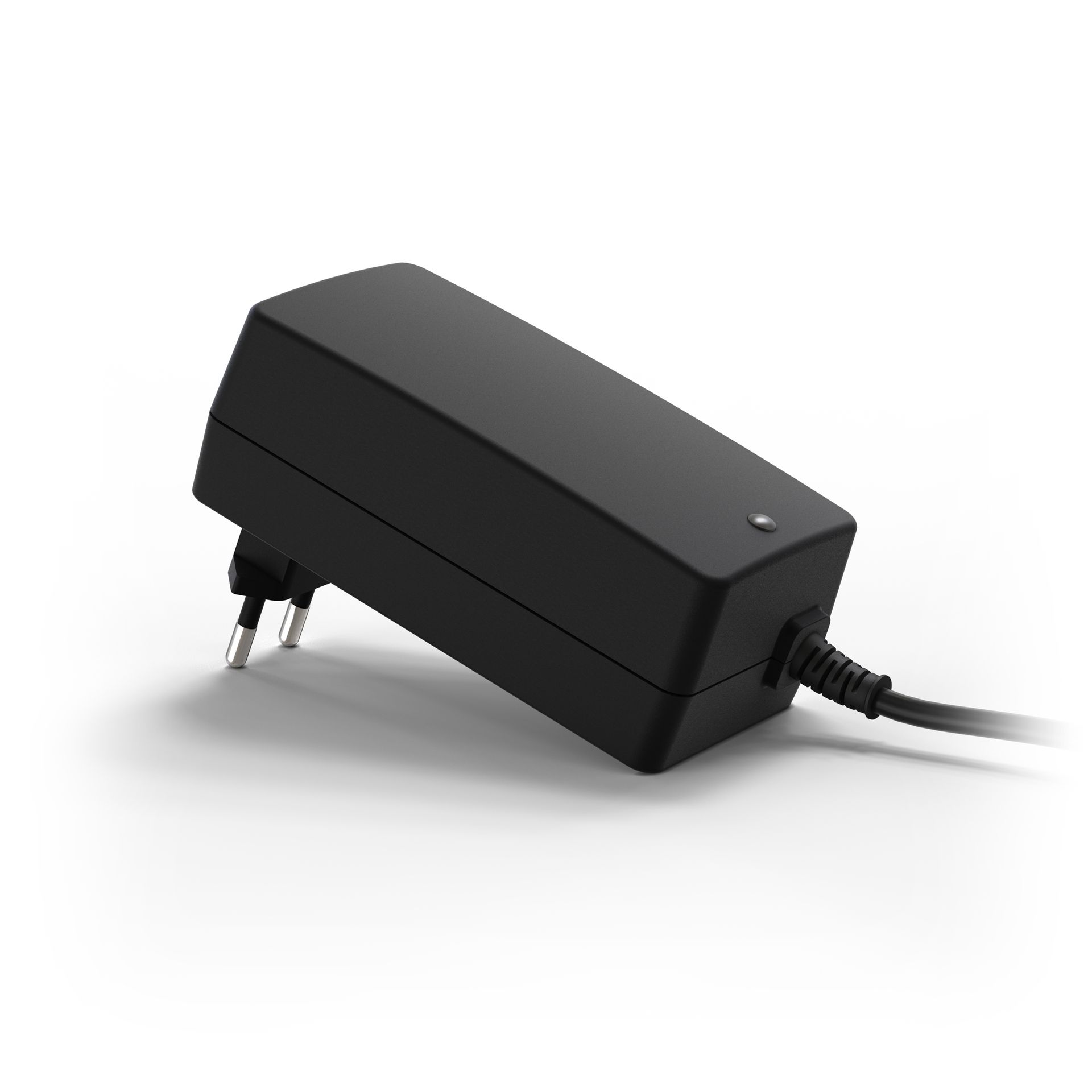

Friwo power supply with EU plug

*PSU Shown with EU plug fitted

Tick

Efficiency Level VI

Tick

Overload Protection

Tick

Overvoltage Protection

Tick

Short Circuit Proof

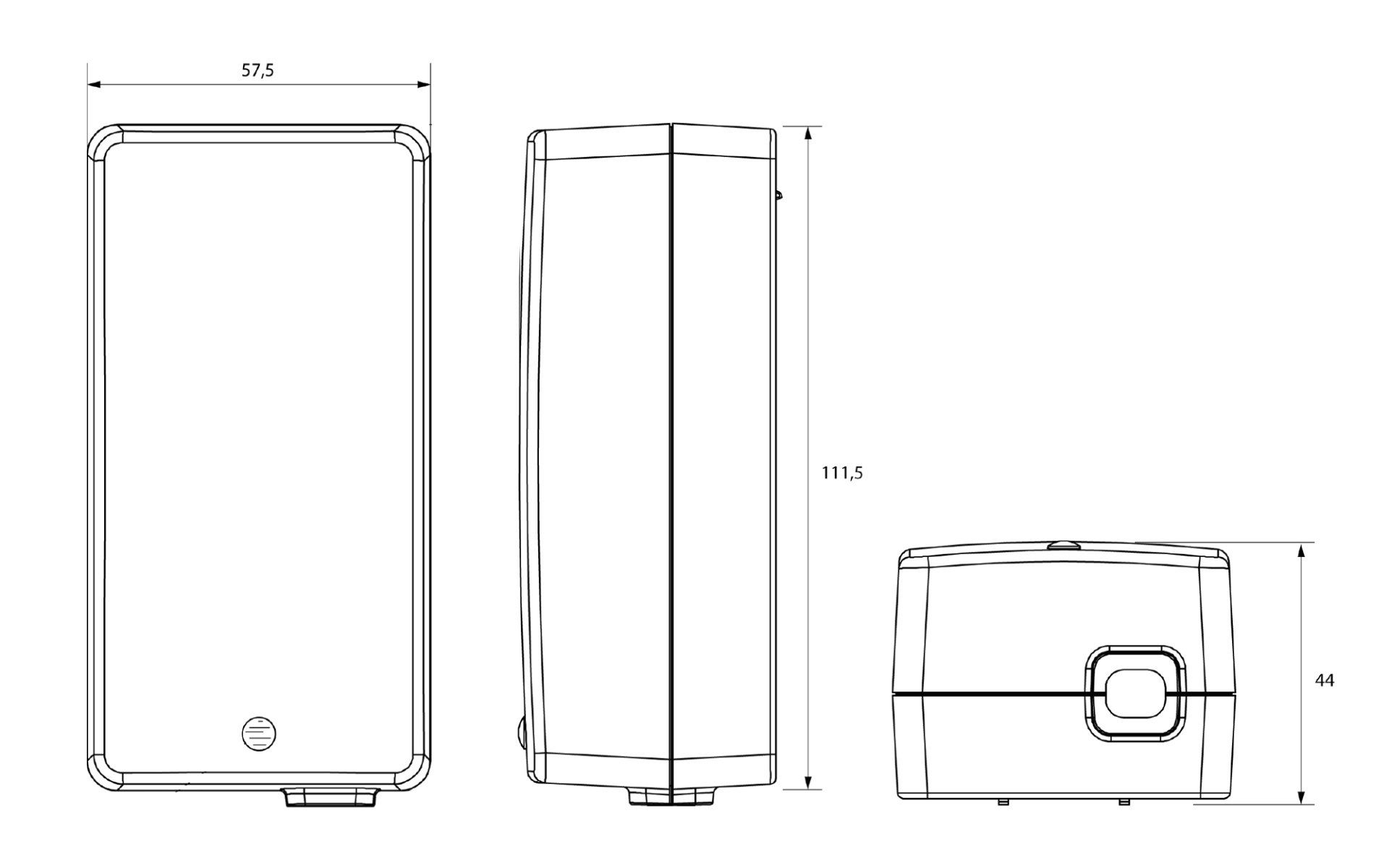

Dimensions

Power supply drawing

Technical Data

Input voltage 100 – 240 V ± 10 %
Frequency 50 – 60 Hz
Input current 640 –350 mA (1960275) 660 –320 mA (1899119)
Leakage current ≤ 100 μA
Output voltage tolerance ± 1 %
Efficiency DoE: Energy Efficiency level VI
MTBF 200.000 h*

* Mil217F based on calculations at 120 VAC / 60 Hz & 230 VAC / 50 Hz,

Ambient temperature 25°C, 100% load

Available Outputs

To access the respective datasheet, just click on the appropriate download button below.

3

CELLS

12.6V 2600mA

FW8104M/03/4.2/2.6

Part Number: 1960275

4

CELLS

16.8V 2100mA

FW8103M/04/4.2/1.5

Part Number: 1899119

5

CELLS

21V 1750mA

FW8104M/05/4.2/1.75

Part Number: 1960365

...V ...mA

Need a Custom Solution?

Just get in touch and see how we can help you!

Environmental specifications

Operating temperature 0 – 40° C
Humidity 10 – 90 %
Storage temperature -20 – 70° C
Operating altitude 5000 m

Safety specifications

Safety Standard IEC60335-1, IEC60335-2-29, IEC60601-1, UL1310
Approvals UK, EU, US
Safety Class II
EMC EN 55014-1, EN 55014-2, EN60601-1 4th ed.

Labels / Certifications

A black and white logo for ukca on a white background.
A black and white ce logo on a white background.
A black and white logo for a company called siq on a white background.
A black and white logo for SA on a white background.
A black and white triangle with a check mark inside of it.
A black and white logo for enec on a white background.

Further approvals possible after consultation.


Want to know more about Safety Agencies & Markings?

VIEW BLOG

Lithium Ion Battery Packs

Pre-Approved Battery Packs Suitable For Use With This Charger

A black battery with three wires attached to it

3S1P

10.8V / 2,900mAh

A black battery with three wires attached to it

3S2P

10.8V / 5,800mAh

A black battery with three wires attached to it

4S1P

14.4V / 2,900mAh

REQUIRED ACCESSORIES

AC Input Plugs

To ensure the seamless functioning of this device, you will require a AC adapter that is compatible with the specific country's power requirements.


AC Input Plugs
A row of black electrical plugs on a white background.
