FRIWO | UK

FOX5-F-USB

FW-Type: FW8005/USB

5 Watt Industrial Grade USB Power Supply

A black and white line drawing of a factory.

Industrial / Home / Office Grade

A black power supply is sitting on a white surface

*PSU Shown with EU plug

Tick

Efficiency Level VI

Tick

Overload Protection

Tick

Overvoltage Protection

Tick

Short Circuit Proof

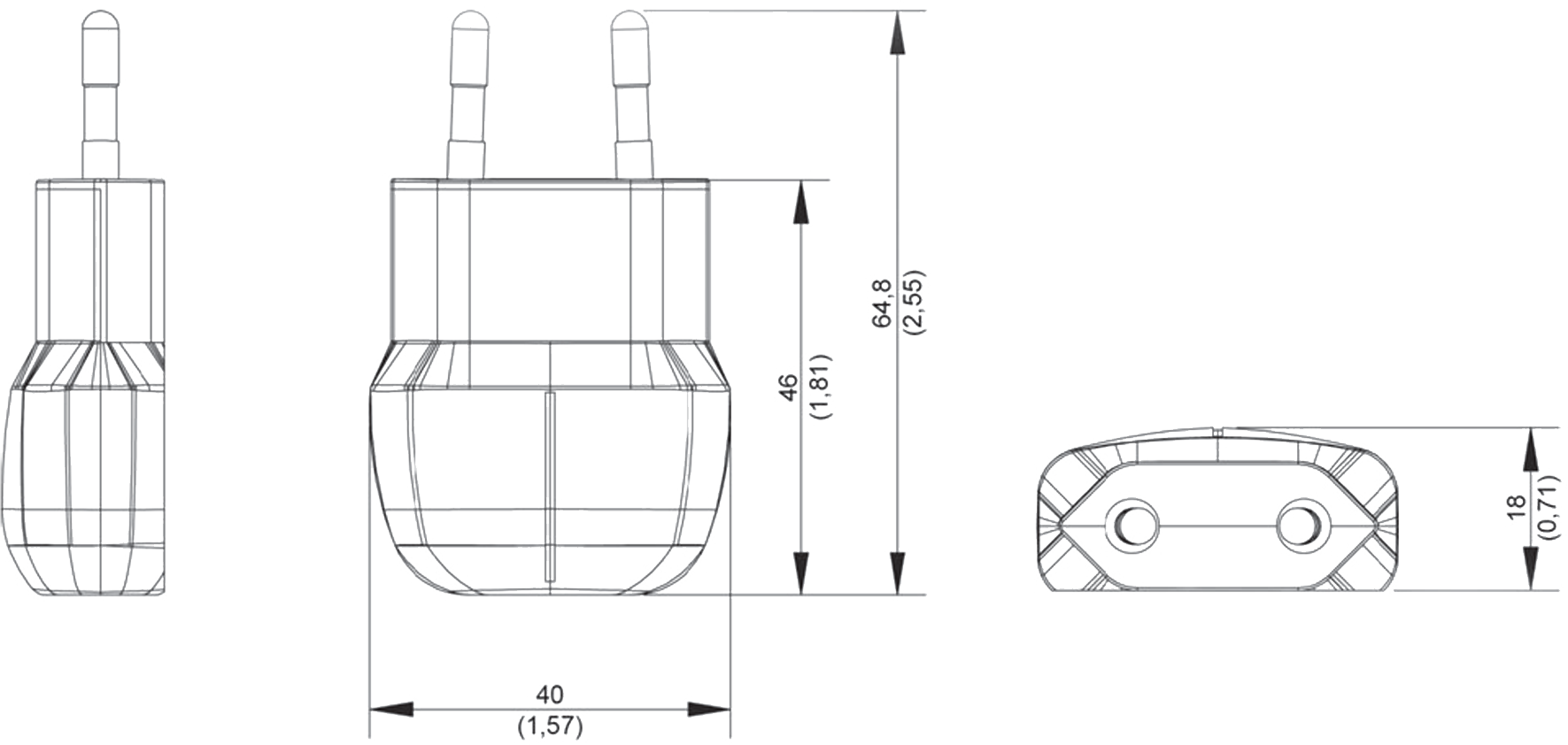

Dimensions

A black and white drawing of a power supply with measurements on a white background.

Technical Data

Input voltage 100 – 240 V ± 10 %
Frequency 50 – 60 Hz
Input current 150 mA
Leakage current ≤ 10 μA
Output voltage tolerance ± 5 %
Stand-by ≤ 0.1 W
Efficiency DoE: Energy Efficiency level VI

* Mil217F based on calculations at 120 VAC / 60 Hz & 230 VAC / 50 Hz,

Ambient temperature 25°C, 100% load

Available Outputs

To access the respective datasheet, just click on the appropriate download button below.

5V 1000mA

FW805/EU/05

Part Number: 1897974

EU

FIXED PLUG

BLACK

5V 1000mA

FW8005/EU/05

Part Number: 1899018

EU

FIXED PLUG

WHITE

5V 1000mA

FW805/US/05

Part Number: 1898333

US

FIXED PLUG

BLACK

5V 1000mA

FW8005/US/05

Part Number: 1899017

US

FIXED PLUG

WHITE

...V ...mA

Need a Custom Solution?

Just get in touch and see how we can help you!

Environmental specifications

Operating temperature 0 – 40° C
Humidity 10 – 95 %
Storage temperature -40 – 70° C
Operating altitude 2000 m

Safety specifications

Safety Standard IEC62368-1, UL 62358-1
Approvals EU, USA
Safety Class II
EMC EN 55024, EN 55032, EN 55035, FCC Part 15/B

Labels / Certifications

A black and white ce logo on a white background.
A black and white logo for a company called siq on a white background.
A black and white logo for en ec on a white background.

Further approvals possible after consultation.
