FRIWO | UK

FOX60-D

FW-Type: FW8060

60 Watt Industrial Grade Desktop Power Supply

A black and white line drawing of a factory.

Industrial / Home / Office Grade

A black and white icon of a desktop power supplyon a white background.

Desktop Model

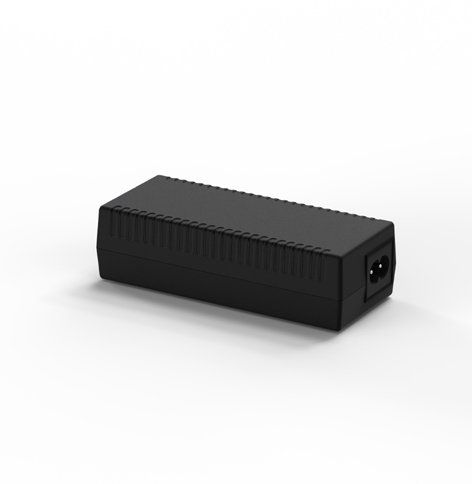

A black desktop power supply is sitting on a white surface.
Tick

Efficiency Level VI

Tick

Overload Protection

Tick

Overvoltage Protection

Tick

Short Circuit Proof

Dimensions

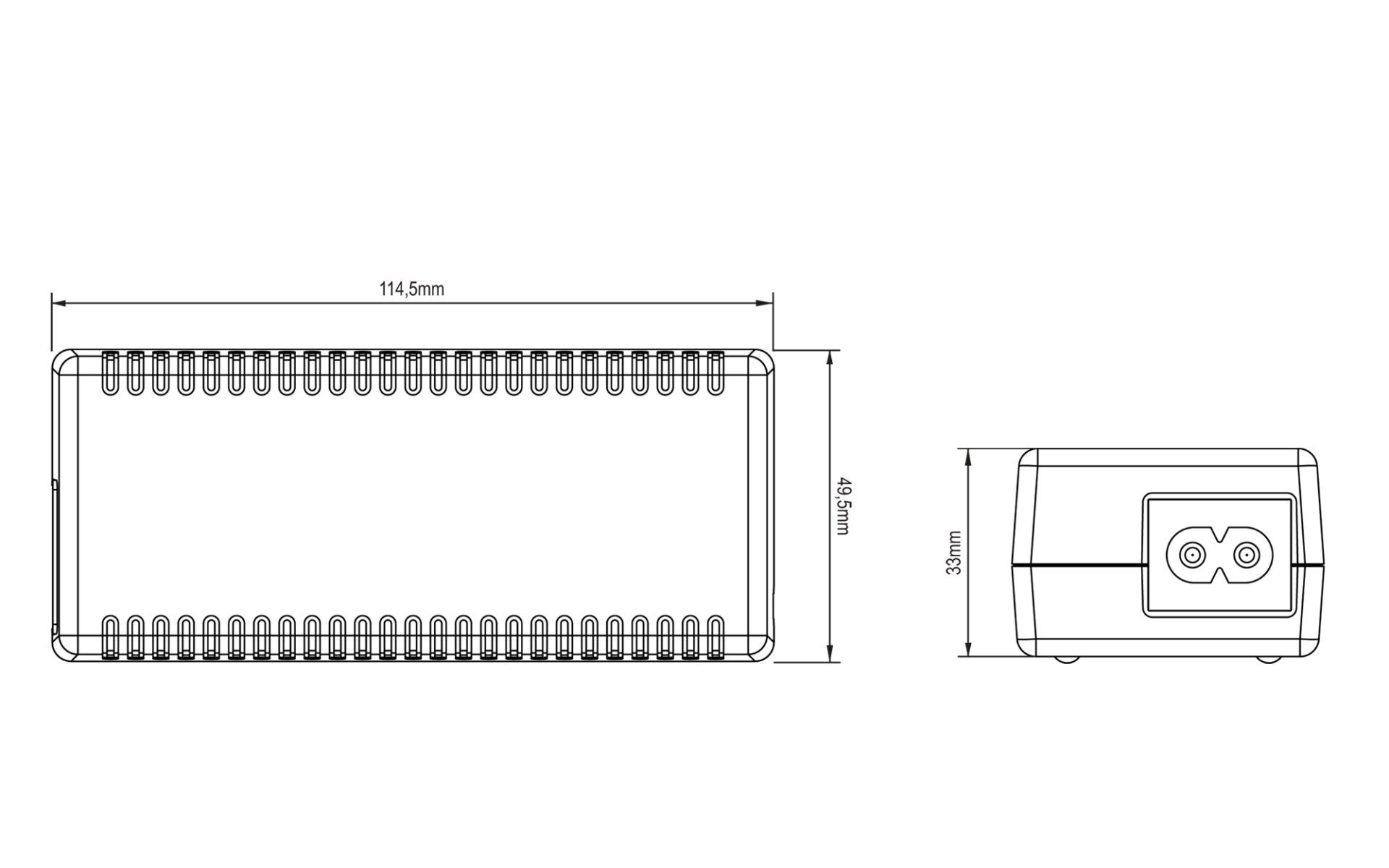

A black and white drawing of a desktop power supply with measurements on a white background.

Technical Data

Input voltage 100 – 240 V ± 10 %
Frequency 50 – 60 Hz
Input current 1300 mA
Leakage current ≤ 250 μA
Output voltage tolerance ± 5 %
Turn-on delay ≤ 3 s
Stand-by ≤ 0.21 W
Efficiency DoE: Energy Efficiency level VI
MTBF 200.000 h*

* Mil217F based on calculations at 120 VAC / 60 Hz & 230 VAC / 50 Hz,

Ambient temperature 25°C, 100% load

Available Outputs

To access the respective datasheet, just click on the appropriate download button below.

12V 5000mA

FW8060/12

Part Number: 1898544

15V 4000mA

FW8060/15

Part Number: 1898545

18V 3300mA

FW8060/18

Part Number: 1898546

24V 2500mA

FW8060/24

Part Number: 1898547

...V ...mA

Need a Custom Solution?

Just get in touch and see how we can help you!

Environmental specifications

Operating temperature 0 – 45° C
Humidity 10 – 95 %
Storage temperature -40 – 70° C
Operating altitude 3000 m

Safety specifications

Safety Standard IEC 62368-1
Approvals UK, EU, USA, AUS, JPN
Safety Class II
EMC EN 55032, EN 55035

Labels / Certifications

A black and white logo for uk ca on a white background.
A black and white ce logo on a white background.
A black and white ul logo in a circle on a white background.
A black and white logo for a company called siq on a white background.
A black and white logo for en ec on a white background.
A black and white triangle with a check mark inside of it.

Further approvals possible after consultation.


Want to know more about Safety Agencies & Markings?

VIEW BLOG

REQUIRED ACCESSORIES

Tick

AC Power Cords

You will require a AC cable that is compatible with the IEC320 C8 socket.


AC Power Cords

DC Output Leads

Check out our range of 'Snap-In' DC connectors that fit onto this unit.


'Snap-In' DC Connectors

FOX60-D | Quote Request

Fill Out This Form And We Will Get In Touch!

Require any assistance?

Contact our experienced specialists to guide you through options and find the perfect solution to power your success!

Contact Us

Units Available in this Range

Click the Image tiles to view additional power options in this Product Range.

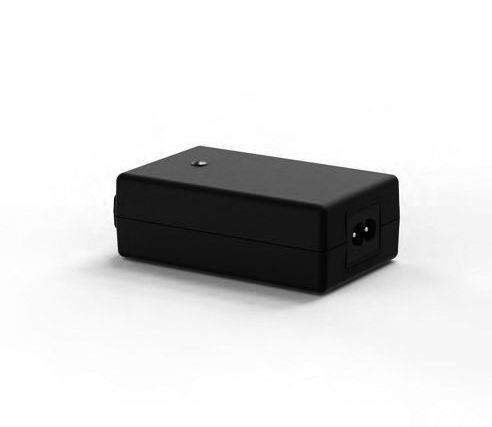

A black power supply is sitting on a white surface
