FRIWO | UK

FOX90-C

FW-Type: FW8100M

90 Watt Medical Grade Lithium Ion (Li-Ion) Charger

A black and white cross icon on a white background.

Medical Grade

A black and white icon of a desktop power supplyon a white background.

Desktop Model

Lithium Ion

BATTERY CHARGER

Friwo power supply with EU plug

*PSU Shown with EU plug fitted

Tick

Efficiency Level VI

Tick

Overload Protection

Tick

Overvoltage Protection

Tick

Short Circuit Proof

Dimensions

Power supply drawing

Technical Data

Input voltage 100 – 240 V ± 10 %
Frequency 50 – 60 Hz
Input current 1840 –850 mA (1897114, 1897115) 1850 –870 mA (1897113)
Leakage current ≤ 100 μA
Output voltage tolerance ± 1 %
Efficiency DoE: Energy Efficiency level VI
MTBF 200.000 h*

* Mil217F based on calculations at 120 VAC / 60 Hz & 230 VAC / 50 Hz,

Ambient temperature 25°C, 100% load

Available Outputs

To access the respective datasheet, just click on the appropriate download button below.

7

CELLS

29.4V 3000mA

FW8100M/07/4.2/3.0

Part Number: 1897113

8

CELLS

33.6V 2600mA

FW8100M/08/4.2/2.6

Part Number: 1897114

10

CELLS

42V 2100mA

FW8100M/10/4.2/2.1

Part Number: 1897115

...V ...mA

Need a Custom Solution?

Just get in touch and see how we can help you!

Environmental specifications

Operating temperature 0 – 40° C
Humidity 5 – 90 %
Storage temperature -25 – 70° C
Operating altitude 3000 m

Safety specifications

Safety Standard IEC60335-1, IEC60335-2-29, IEC60601-1, UL1310
Approvals UK, EU, US
Safety Class II
EMC EN 55014-1, EN 55014-2, EN60601-1 4th ed.

Labels / Certifications

Further approvals possible after consultation.


Want to know more about Safety Agencies & Markings?

VIEW BLOG

Lithium Ion Battery Packs

Pre-Approved Battery Packs Suitable For Use With This Charger

A black box with three wires sticking out of it on a white background.

7S3P

25.2V / 2,900mAh

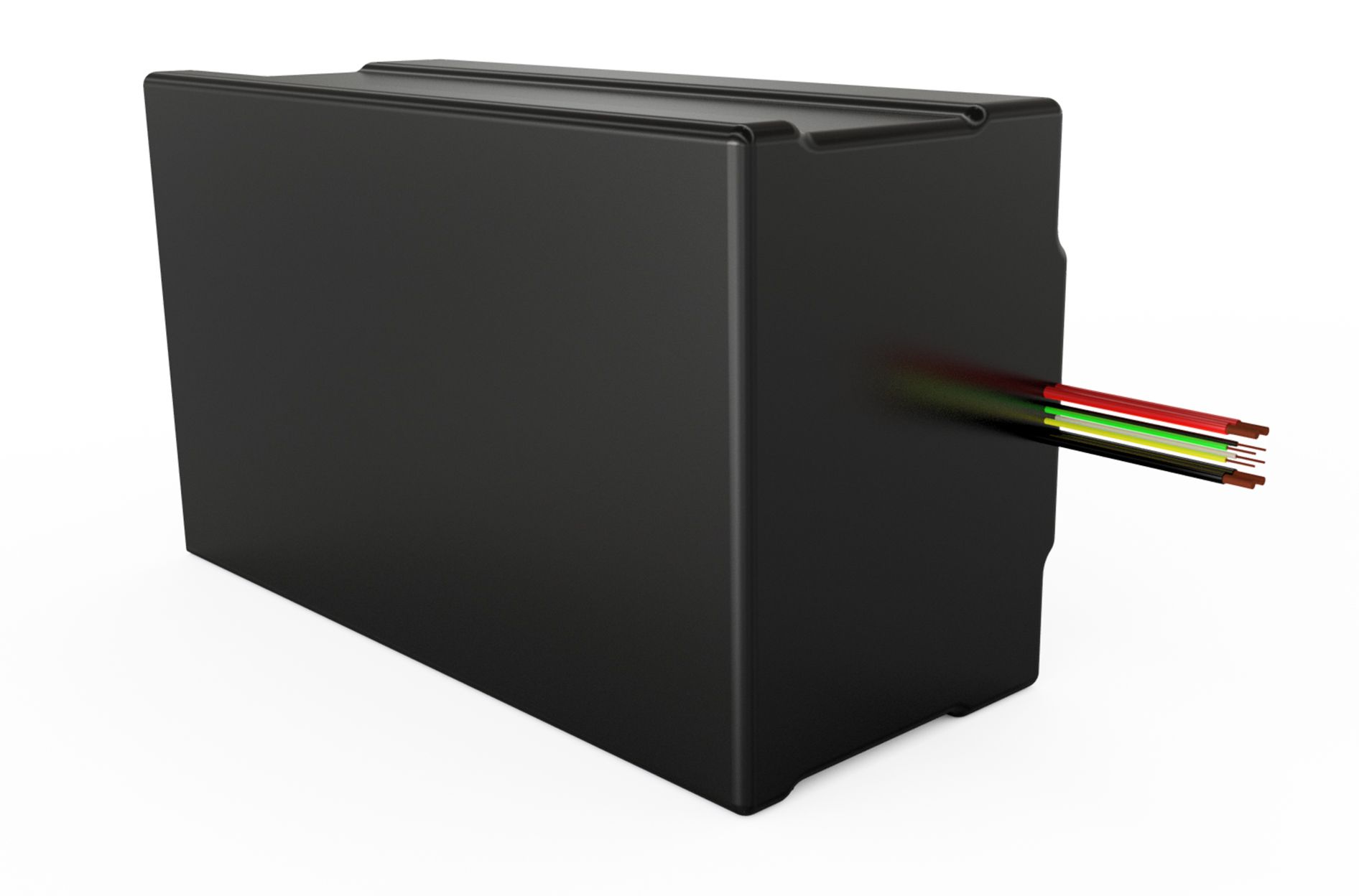

A black box with three wires sticking out of it.

7S4P

25.2V / 11,600mAh
