FRIWO | UK

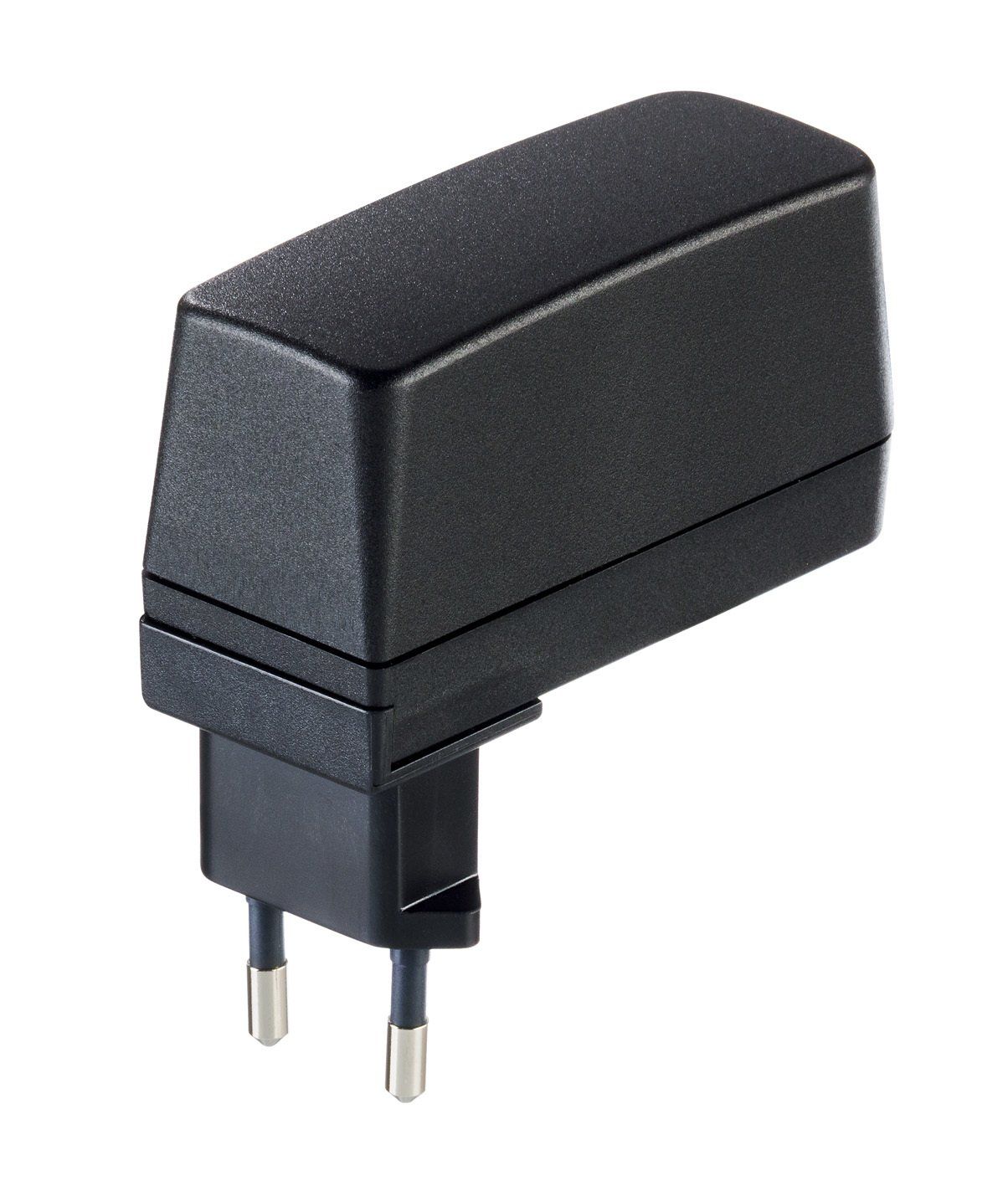

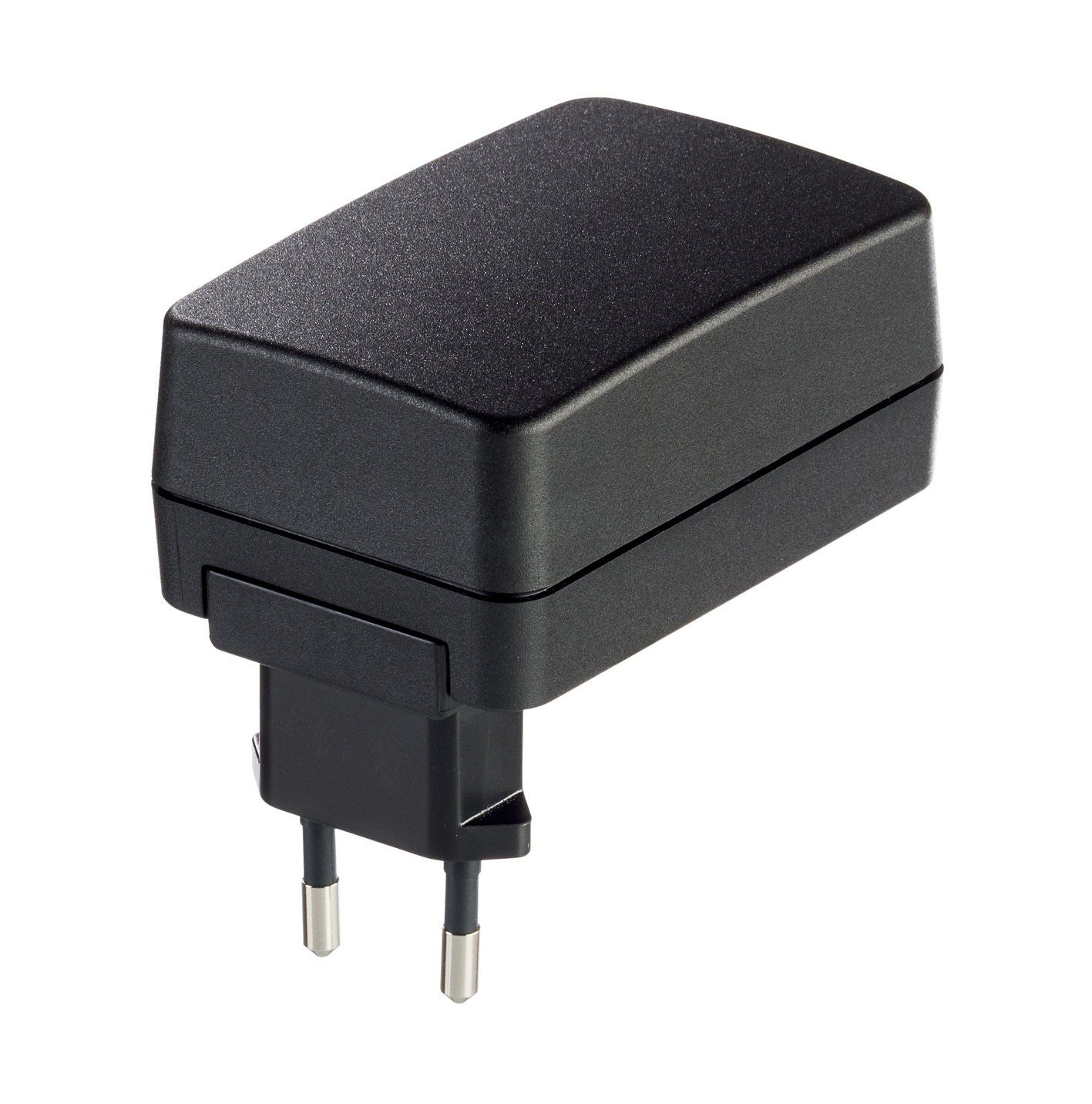

*PSU Shown with EU plug fitted
FOX12 EXCHANGEABLE
FW-Type: FW8000/XX
12 Watt Industrial Grade Interchangeable Power Supply

Input Voltage:   100 - 240V AC (±10%)


Output voltage:   Various (see table below)


Frequency:   50 - 60Hz


Leakage Current:   ≤ 10µA


Stand-by:   ≤ 0.1W


MTBF:   200,000 hours acc. Mil217F (based on calculations at 120Vac/60Hz & 230Vac/50Hz, ambient 25°C and 100% load)

(The MTBF are theoretically determined values, which does not guarantee the lifetime of the product or of the electrolytic capacitors)

Operating Temperature:   0 - 40°C


Storage Temperature:   -40 - 70°C


Operating Altitude:   3000m


Humidity:   10 - 95%


Standards:  IEC 62368-1, IEC 60335


Approvals:   EU, USA, AUS, JPN


Safety Class:   II


EMC:   EN 55022, EN 55024


Overload & Overvoltage protection


Continuously short circuit proof


DOE Level VI Efficiency

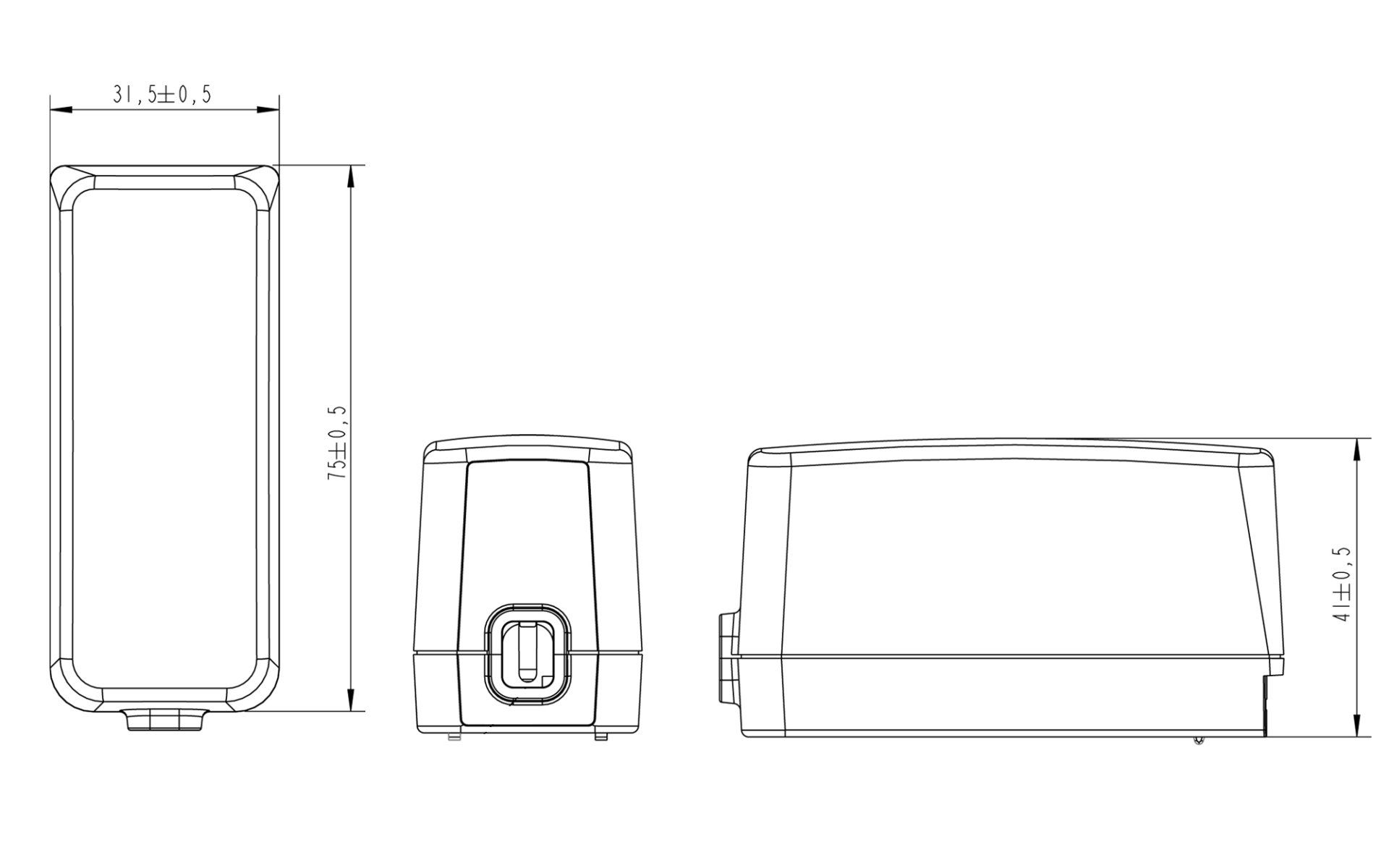

PSU Dimensions:   75 x 31.5 x 41.0mm


Weight:   127g


Casing:   Double Safety, Snapped & Welded


Plug Connector:   AC input / Interchangeable primary adapter system


DC output:   Secondary adapter system


View Accessories
AVAILABLE OUTPUTS
CLICK TILES BELOW TO DOWNLOAD RELEVANT DATASHEET
  • A blue letter v with three dots on a white background.

    CUSTOM OUTPUT


    Available for OEM Projects

    that meet the required MOQ

    Button
    • Required Accessories

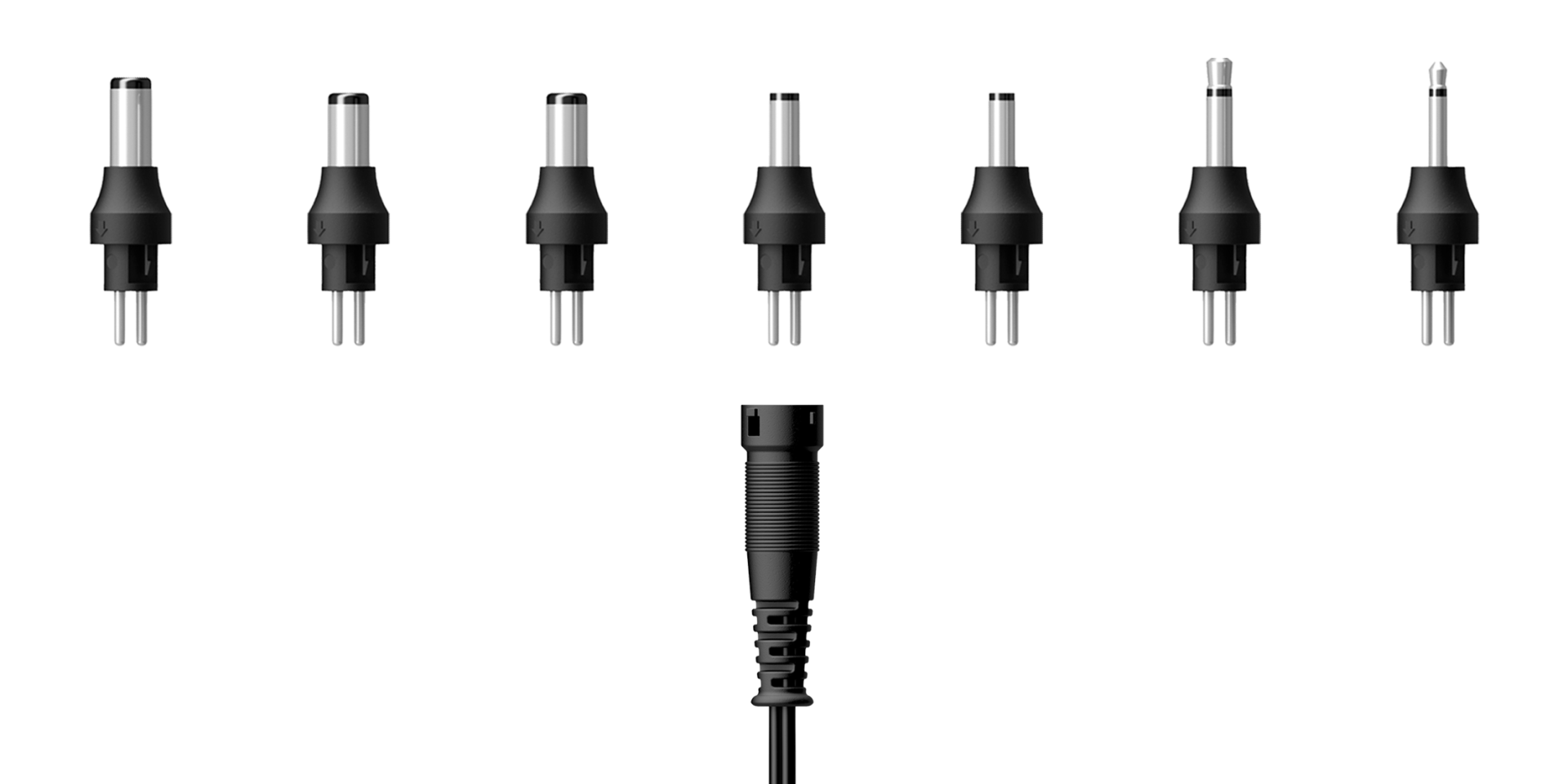

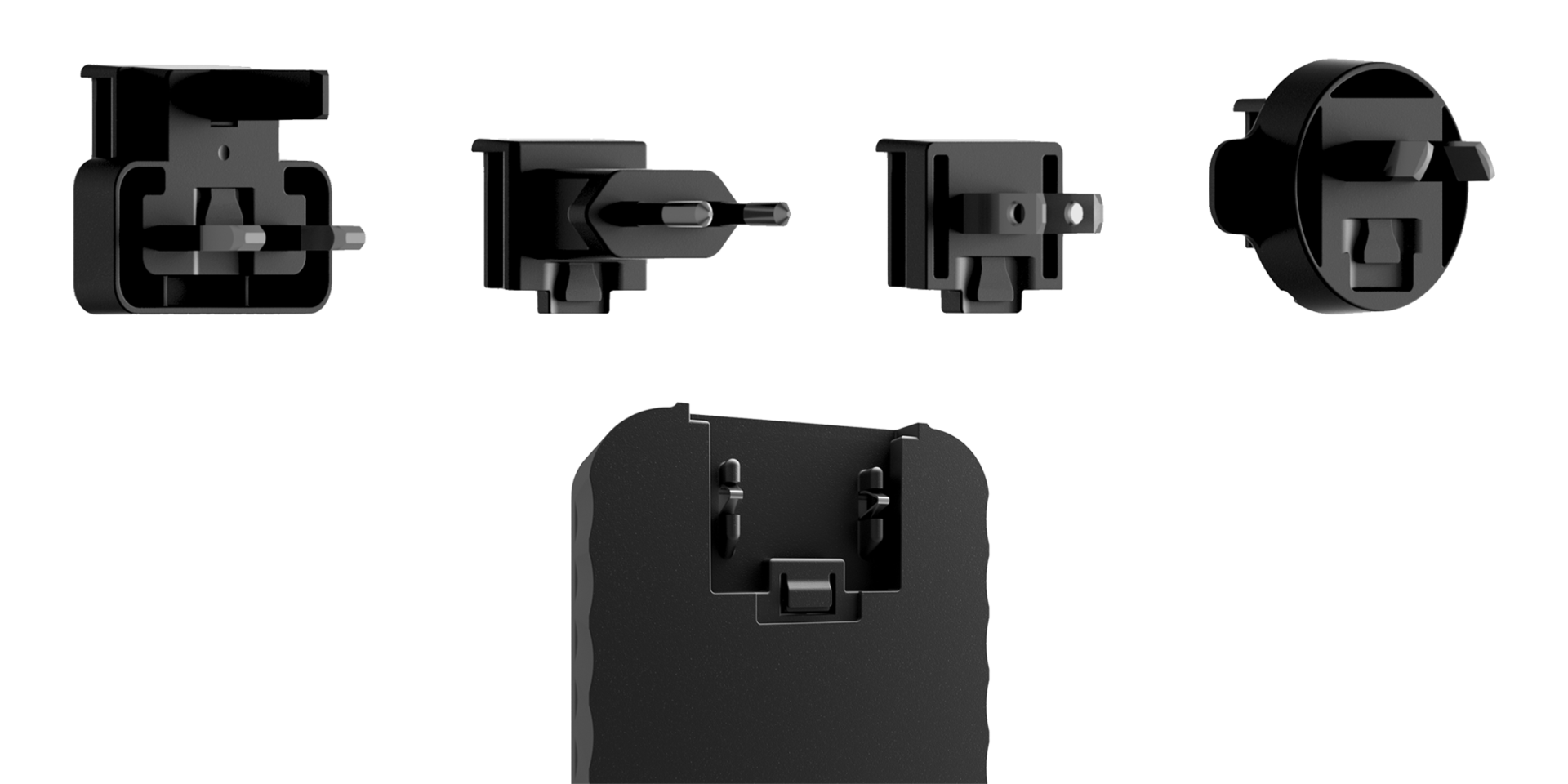

    For the operation of this device you need a primary AC adapter and a DC secondary adapter.
    IPX2 FOX PLUGS

    NEW!

    The optional IP42 plug adapter from FRIWO is an interchangeable adapter system that offers additional protection for use in damp environments.
    This PSU is also available with...
    MEDICAL APPROVAL
    USB OUTPUT
    IEC SOCKET
    FIXED PLUG
