FRIWO | UK

FRIWO FW8000 FOX12
DT12 DESKTOP PSU
FW-Type: FW7402 & FW8004MO/DT
Industrial Grade Desktop Power Supply

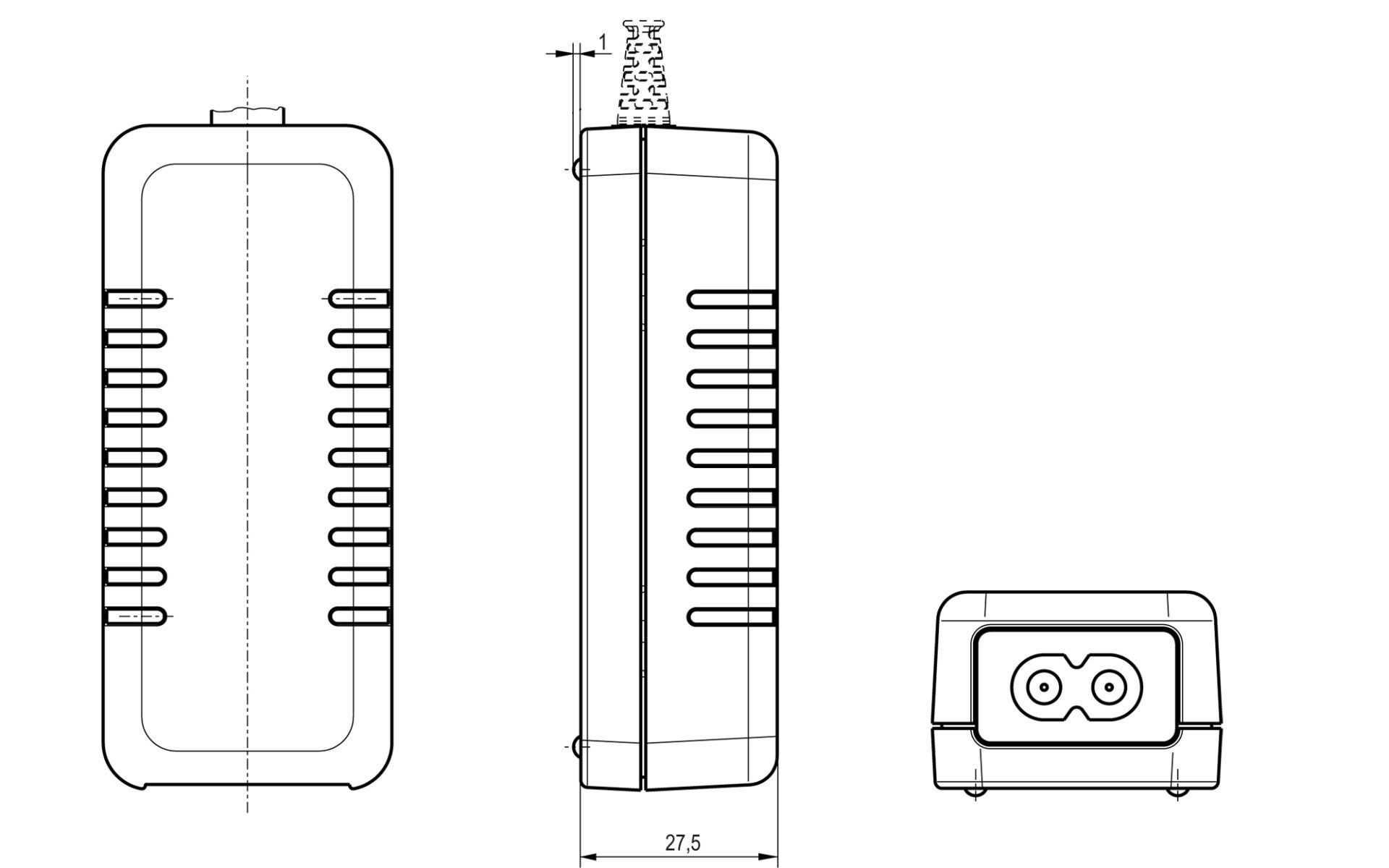

A black and white drawing of a power supply with measurements on a white background.

Input Voltage:   100 - 240V AC (±10%)


Output voltage:   Various (see table below)


Frequency:   50 - 60Hz


Leakage Current:   ≤ 250 µA


Stand-by:   ≤ 0.1W


MTBF:   200,000 hours acc. Mil217F (based on calculations at 120Vac/60Hz & 230Vac/50Hz, ambient 25°C and 100% load)

(The MTBF are theoretically determined values, which does not guarantee the lifetime of the product or of the electrolytic capacitors)

Operating Temperature:   0 - 40°C


Storage Temperature:   -10 - 70°C


Operating Altitude:   3000m


Humidity:   10 - 95%


Standards:   IEC 60950-1, IEC 60065, IEC 60335


Approvals:   EU, USA, AUS, JPN


Safety Class:   II


EMC:   EN 55022, EN 55024


Overload & Overvoltage protection


Continuously short circuit proof


DOE Level VI Efficiency

PSU Dimensions:   92 x 40 x 27.5mm


Weight:   135g


Casing:   Double Safety, Snapped & Welded


AC Connector:    2 pole, IEC60320-C8 socket


DC output:   Secondary adapter system


View Accessories
NEW AVAILABLE OUTPUTS | 2019 UPDATE
A white background with a 5v symbol on it

2000 mA

FW8004MO/DT/05

Part Number: 1960578

Button
A white background with a 12v symbol on it
A white background with a 24v symbol on it
A white background with a v symbol on it

CUSTOM OUTPUT

Available for OEM Projects

that meet the required MOQ

Button
STANDARD AVAILABLE OUTPUTS
CLICK TILES BELOW TO DOWNLOAD RELEVANT DATASHEET
A blue 5v logo on a white background.

2000 mA

FW7402/5

Part Number: 1898975

Button
A blue 6v logo on a white background.

1700 mA

FW7402/6

Part Number: 1898976

Button
A blue 7.5v logo on a white background.

1400 mA

FW7402/8

Part Number: 1898977

Button
A blue 9v logo on a white background.
A blue 12v logo on a white background.
A blue 15v logo on a white background.
A blue 18v logo on a white background.
A blue 24v logo on a white background
The word 48v is written in gray on a white background.
A blue letter v with three dots on a white background.

CUSTOM OUTPUT

Available for OEM Projects

that meet the required MOQ

Button
A bunch of different types of plugs and cables on a white background
Required Accessories

For the operation of this device you need a primary cord
and a secondary adapter.

This can be found here: ACCESSORIES

This PSU is also available with...
MEDICAL APPROVAL
USB OUTPUT
INTERCHANGEABLE
AC PLUGS
FIXED PLUG
NEED SOME HELP?
Just get in touch & speak to one of our experts.

We will gladly guide you through our range and find the perfect product to power your success!
NEED A QUOTE?
Have you found the product for you? Then Great!

Just let us know the Part Number or FW Number, your required connector and we will do the rest!
NEED MORE POWER?**
Use our Quick & Handy product selector below!
Down Arrow
FOX 12 POWER SUPPLY

DT12

[SELECTED]

Button
FOX 18 POWER SUPPLY

FOX30-D

CLICK TO VIEW

Button

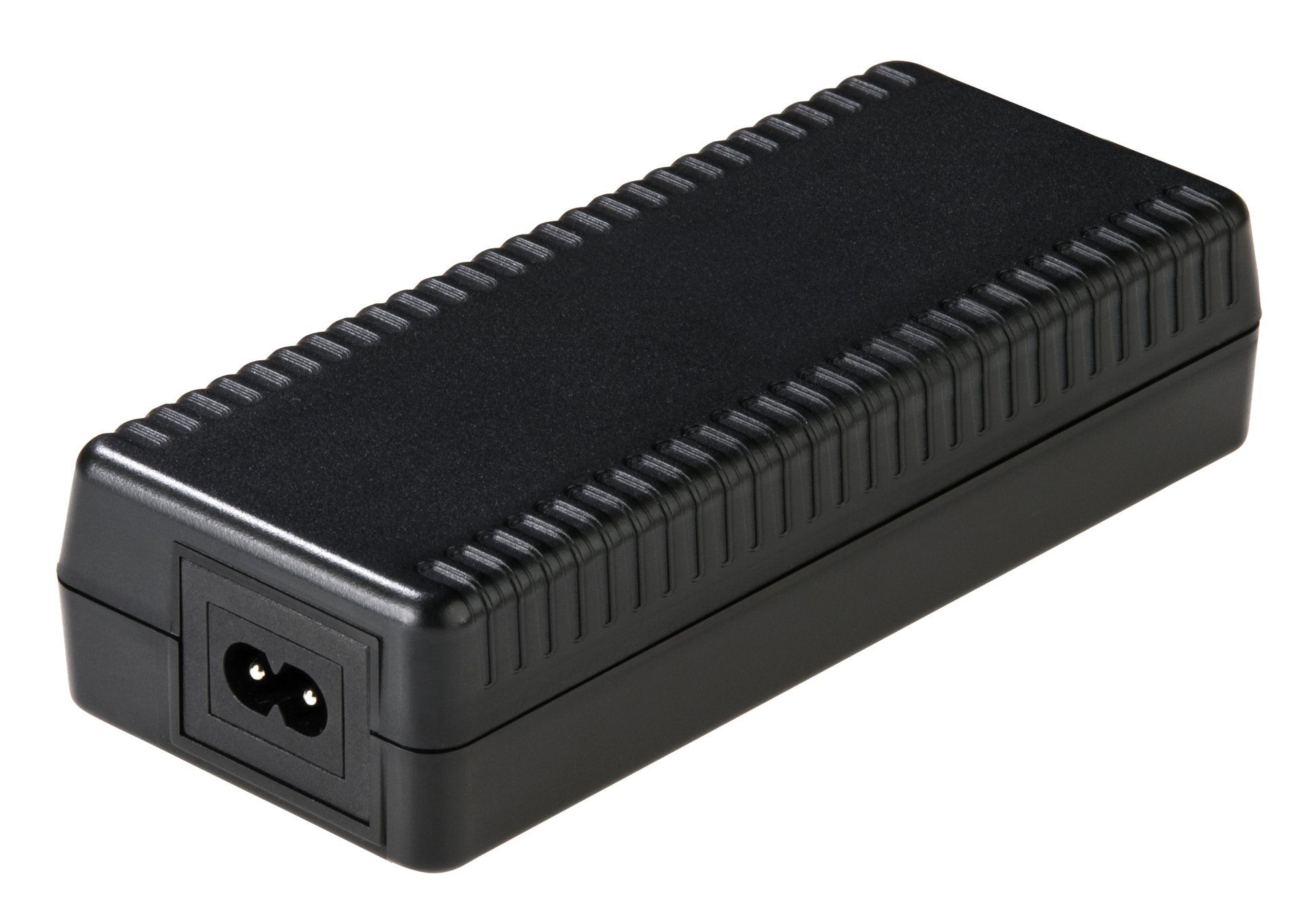

FOX 30 POWER SUPPLY
