FRIWO FW8000 FOX12
FOX60-D
FW-Type: FW8060/DT
Industrial Grade Desktop Power Supply
A black and white drawing of a clothes rack with measurements on a white background.

Input Voltage:   100 - 240V AC (±10%)


Output voltage:   Various (see table below)


Frequency:   50 - 60Hz


Leakage Current:   ≤ 10µA


Stand-by:   ≤ 0.1W


MTBF:   200,000 hours acc. Mil217F (based on calculations at 120Vac/60Hz & 230Vac/50Hz, ambient 25°C and 100% load)

(The MTBF are theoretically determined values, which does not guarantee the lifetime of the product or of the electrolytic capacitors)

Operating Temperature:   0 - 40°C


Storage Temperature:   -10 - 70°C


Operating Altitude:   2000m


Humidity:   10 - 95%


Standards:   IEC 62368-1, IEC 60335


Approvals:   EU, USA, AUS, JPN


Safety Class:   II


EMC:   EN 55022, EN 55024


Overload & Overvoltage protection


Continuously short circuit proof


DOE Level VI Efficiency

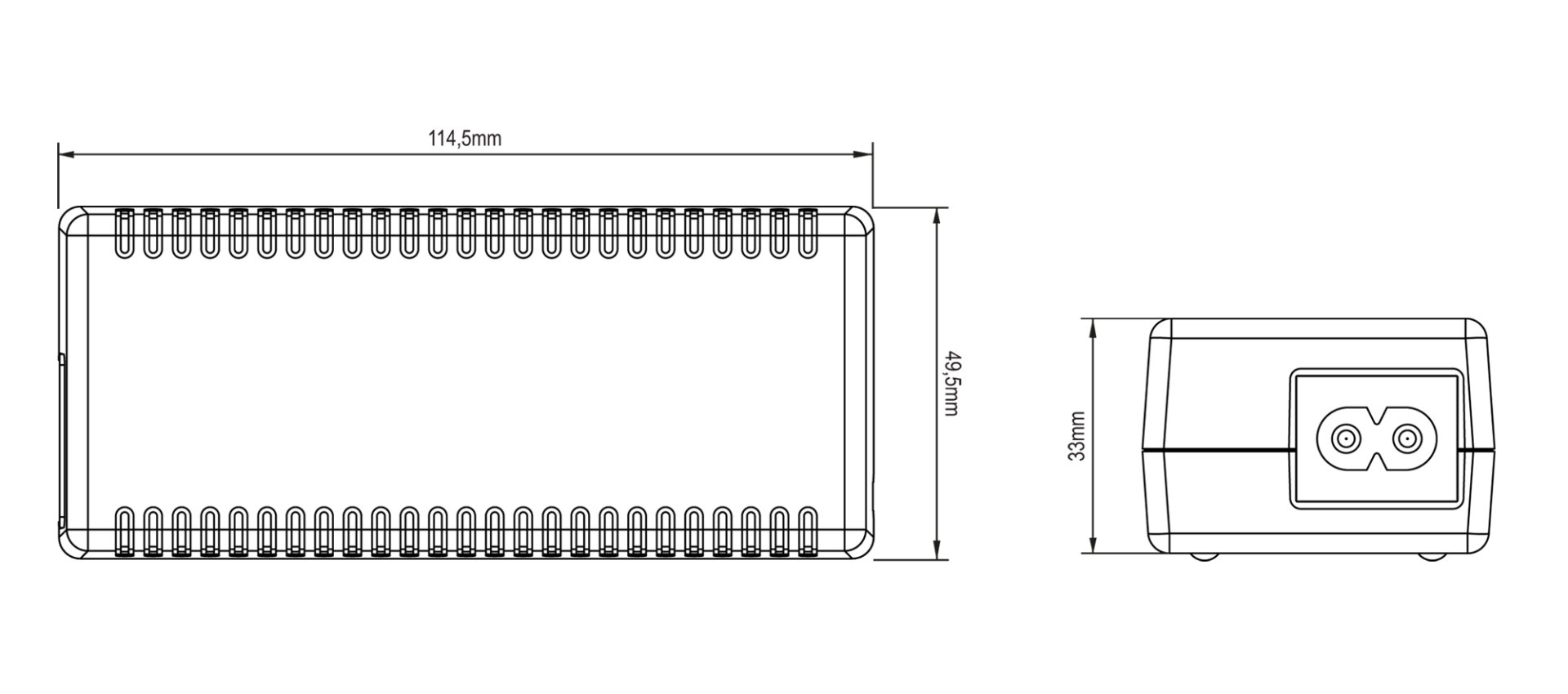

PSU Dimensions:  114.5 x 49.5 x 33mm


Weight:   250g


Casing:   Double Safety, Snapped & Welded


AC Connector:    2 pole, IEC60320-C8 socket


DC output:   Secondary adapter system


View Accessories
AVAILABLE OUTPUTS
CLICK TILES BELOW TO DOWNLOAD RELEVANT DATASHEET
A blue 12v logo on a white background.
A blue 15v logo on a white background.
A blue 18v logo on a white background.
A blue 24v logo on a white background
A blue 48v logo on a white background
A bunch of different types of plugs and cables on a white background
Required Accessories

For the operation of this device you need a primary cord
and a secondary adapter.

This can be found here: ACCESSORIES
