FRIWO | UK

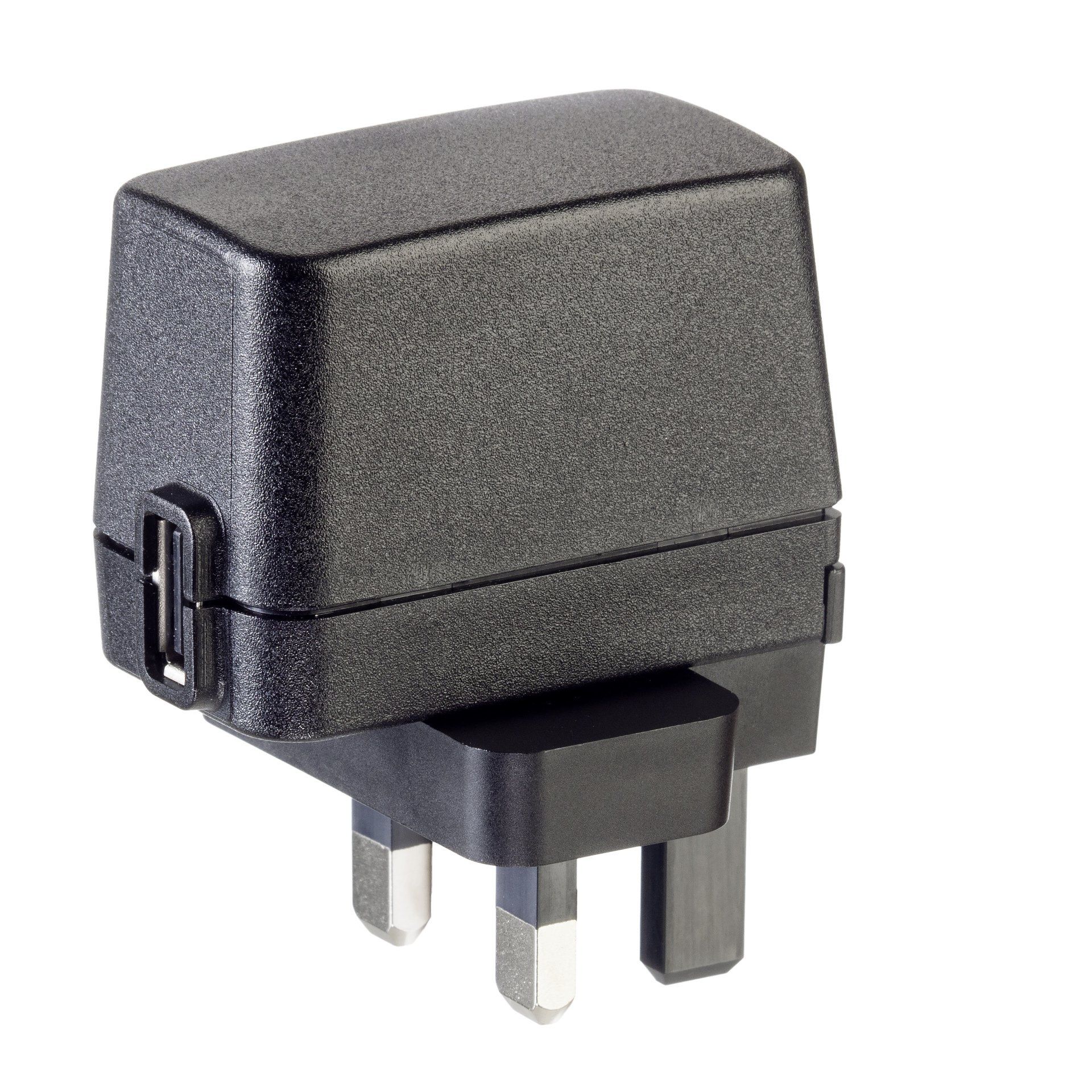

*PSU Shown with UK plug fitted

FOX6 USB

FW-Type: FW8002/USB
Industrial Grade Interchangeable USB Power Supply

Input Voltage:   100 - 240V AC (±10%)


Output voltage:   Various (see table below)


Frequency:   50 - 60Hz


Leakage Current:   ≤ 10µA


Stand-by:   ≤ 0.1W


MTBF:   200,000 hours acc. Mil217F (based on calculations at 120Vac/60Hz & 230Vac/50Hz, ambient 25°C and 100% load)

(The MTBF are theoretically determined values, which does not guarantee the lifetime of the product or of the electrolytic capacitors)

Operating Temperature:   0 - 40°C


Storage Temperature:   -40 - 70°C


Operating Altitude:   3000m


Humidity:   10 - 95%


Standards:   IEC 62368-1, IEC 60335


Approvals:   EU, USA, AUS, JPN


Safety Class:   II


EMC:   EN 55022, EN 55024


Overload & Overvoltage protection


Continuously short circuit proof


DOE Level VI Efficiency

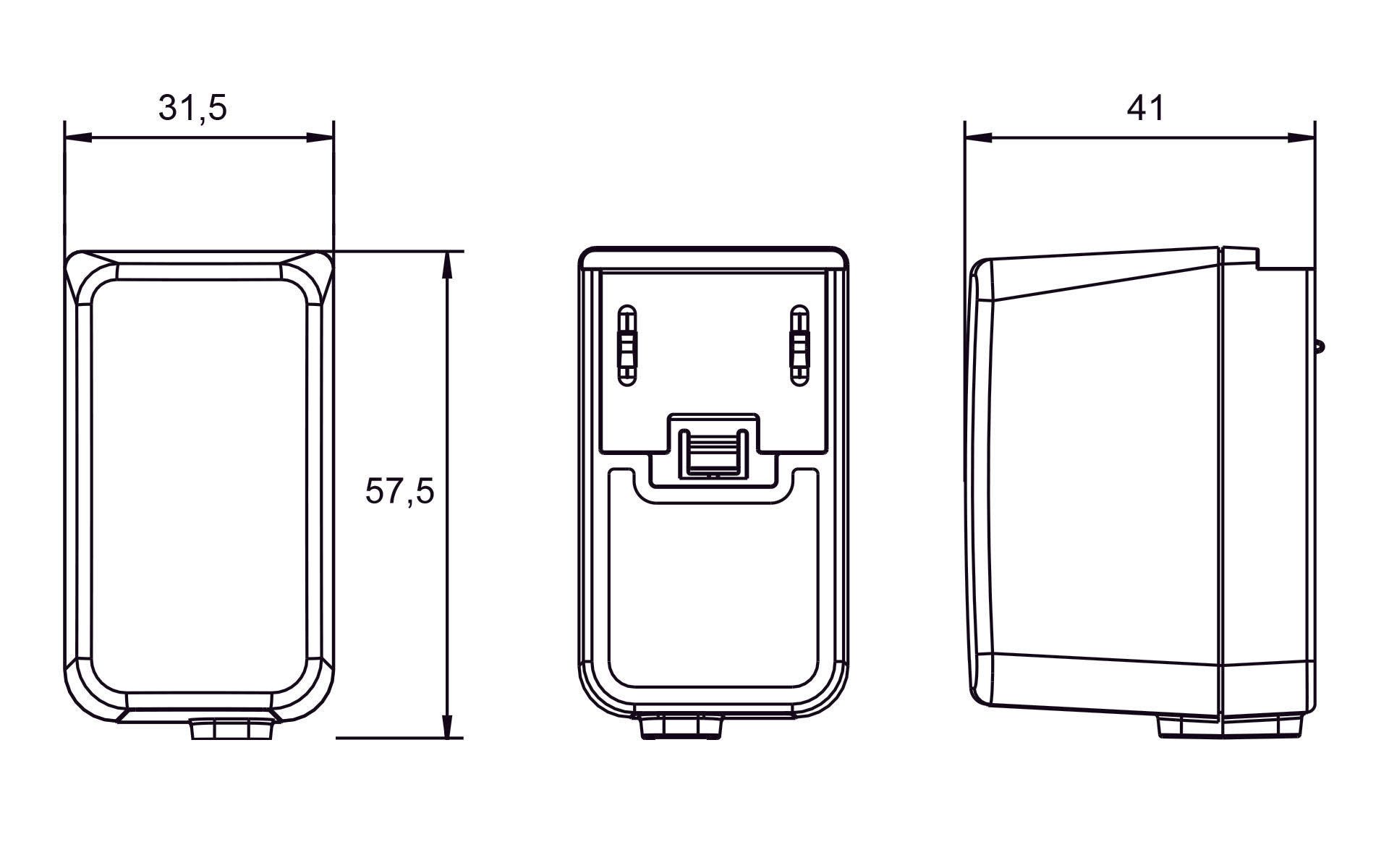

PSU Dimensions:   55 x 31.5 x 41mm


Weight:   50g


Housing Flame Class:   UL 94 V0


Casing:   Double Safety, Snapped & Welded


Plug Connector:   AC input / Interchangeable primary adapter system


DC output:   Secondary adapter system


View Accessories

IP Rotection rating:   IP40


Condcted and Radiated Emmisions:   N55032, EN55011, FCC15, Class B, EN60601-1-2


Immunity:  EN55024, EN60601-1-2


Harmonics:   EN61000-3-2


Flicker noise:  EN61000-3-3


ESD (contact/ air):  EN61000-4-2


Immunity against radiated field:  EN61000-4-3


ETF/ Burst:  EN61000-4-4


Surge: EN61000-4-5


Immunity against conducted disturbances: EN61000-4-6


Voltage dips:  EN61000-4-11


Immunity against magnetic field: EN61000-4-8


Drop test: Standard: IEC 60068-2-32, Surface: steel, Drop height: 1 m, Numbers of Drops (total): 3


Vibration:  Standard: IEC 60068-2-6, Frequency range : 10 – 500 Hz, Cross- over-frequency : 58 – 62 Hz, Displacement amplitude : 0.2mm, Peak acceleration : 3 g, Number of cycles: 10 per axis

AVAILABLE OUTPUTS | GEN2
CLICK TILES BELOW TO DOWNLOAD RELEVANT DATASHEET
AVAILABLE OUTPUTS | GEN1*
*NOT RECOMMENDED FOR NEW PROJECTS
SEE SECOND GENERATION ABOVE
Required Accessories

For the operation of this device you need a primary AC adapter
This can be found here: ACCESSORIES

IPX2 FOX PLUGS

NEW!

The optional IP42 plug adapter from FRIWO is an interchangeable adapter system that offers additional protection for use in damp environments.
This PSU is also available with...
MEDICAL APPROVAL
FIXED DC CONNECTOR
FIXED PLUG
