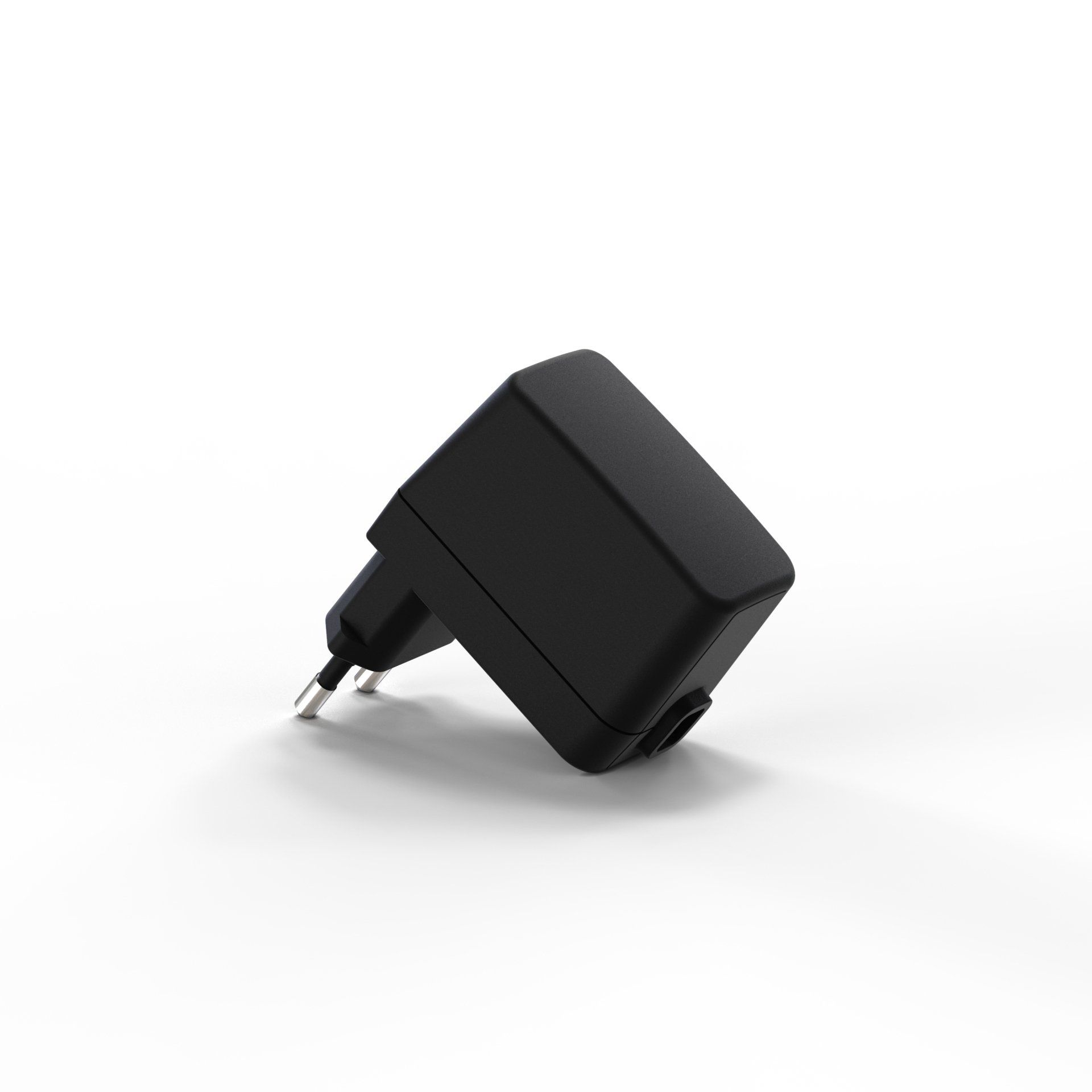

A black power supply is sitting on a white surface

FW8002.1

FOX6-X

6 Watt Industrial Grade Interchangeable Power Supply

Available Outputs

Voltage	Current	FW Number	Part No [distribution cable]	Part No [no cable]
5 V	1400 mA	FW8002.1/05	1960487	1960036
5.9 V	1200 mA	FW8002.1/05	1960488	1960074
7.5 V	800 mA	FW8002.1/08	1960489	1960075
9 V	800 mA	FW8002.1/09	1960490	1960076
12 V	600 mA	FW8002.1/12	1960491	1960037
15 V	500 mA	FW8002.1/15	1960492	1899749
18 V	400 mA	FW8002.1/18	1960493	1899753
24 V	300 mA	FW8002.1/24	1960494	1960038
48 V	N/A see next power Rating Up	-	-	-

Custom outputs are available for OEM projects that meet the required MOQ

City skyline

Photo By: John Doe

Button

What is a distribution cable?

For rapid prototyping some of our units come pre-fitted with a 'distribution cable'

At the end of this cable there is a socket which can fit various standard connectors, including Barrel, Jack and Texas, available as Straight or Right Angled Variants.

This is handy for products sold via RS Components as the required connector is simply clicked in place by the end user, polarity is given via the indication arrow.

Of course custom and single moulded cables are available, for this you would need to select a FOX power supply without a cable pre-fitted.

Technical Data

Input voltage	100 – 240 V ± 10 %
Frequency	50 – 60 Hz
Input current	160 – 80 mA
Leakage current	≤ 10 μA
Output voltage tolerance	± 5 %
Turn-on delay	≤ 3 s
Stand-by	≤ 0.1 W
Efficiency	DoE: 10 CFR §430.32, energy efficiency level VI ErP: Commission Regulation (EU) 2019/1782
MTBF	200.000 h*

Environmental

Operating temperature	0 – 45° C
Humidity	10 – 95 %
Storage temperature	-40 – 70° C
Operating altitude	3000 m

Safety Specifications

Layout acc. to safety standard	IEC 62368-1
Approvals	EU, USA, AUS, JPN
Safety class	II
EMC	EN 55032, EN 55035

Mechanical Data

Dimensions	58.0 x 31.5 x 41.0 mm
Weight	108-120 g
AC input	FOX Interchangeable primary adapter system
DC output for distribution lead	Snap-in DC Connector
DC output for unleaded Power Supplies	Moulded and Custom DC leads
