FRIWO | UK

GPP18

FW-Type: FW7290

18 Watt Industrial Grade Lithium Iron Phosphate (LiFePO4) Charger

A black and white line drawing of a factory.

Industrial / Home / Office Grade

Medical power supply with UK plug

Interchangeable Plugs

LiFePO4

BATTERY CHARGER

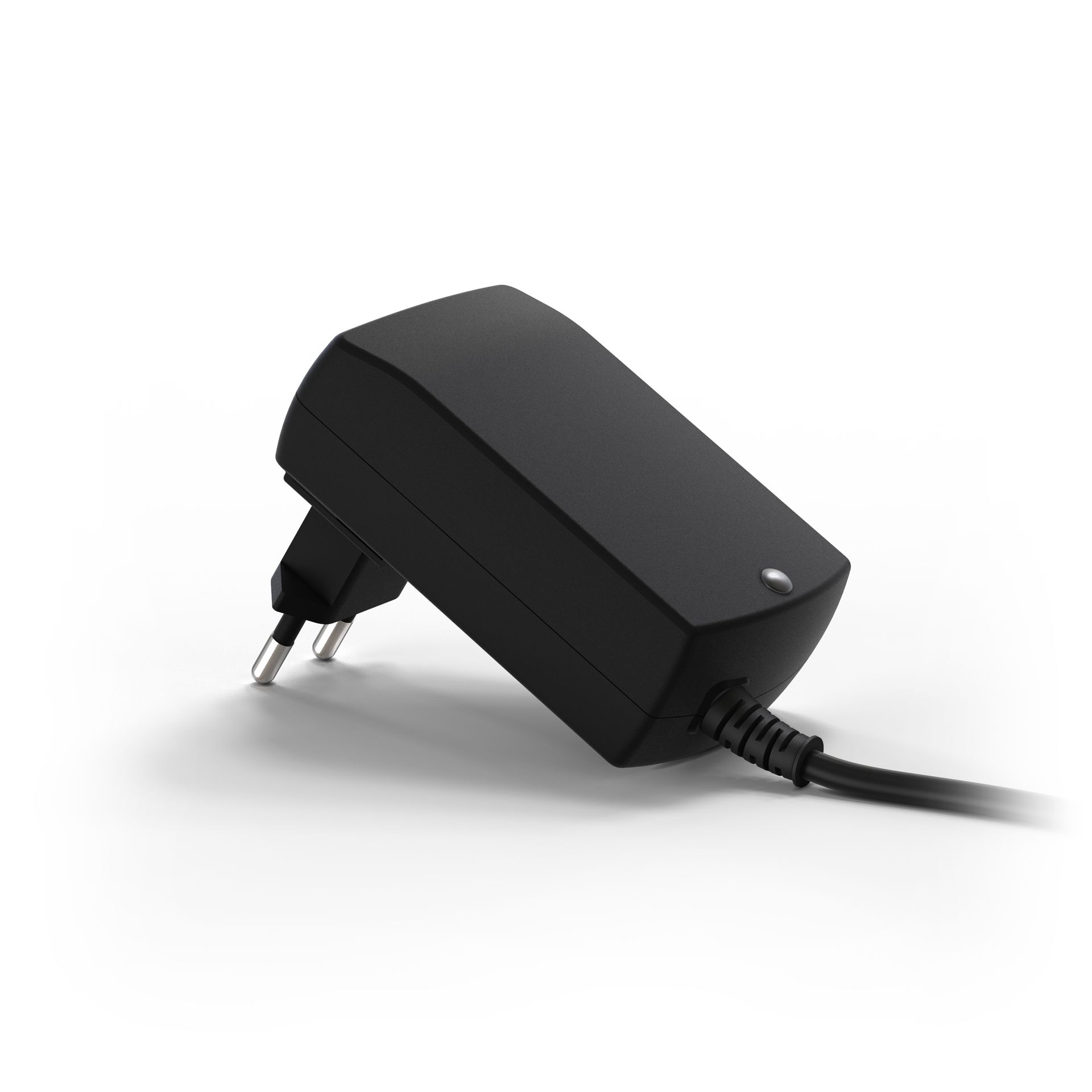

Friwo power supply with EU plug

*PSU Shown with EU plug fitted

Tick

Efficiency Level VI

Tick

Overload Protection

Tick

Overvoltage Protection

Tick

Short Circuit Proof

Dimensions

Power supply drawing

Technical Data

Input voltage 100 – 240 V ± 10 %
Frequency 50 – 60 Hz
Input current 200 –400 mA
Leakage current ≤ 100 μA
Output voltage tolerance ± 10 %
Efficiency DoE: Energy Efficiency level VI
MTBF 200.000 h*

* Mil217F based on calculations at 120 VAC / 60 Hz & 230 VAC / 50 Hz,

Ambient temperature 25°C, 100% load

Available Outputs

To access the respective datasheet, just click on the appropriate download button below.

1

CELL

3.6V 3000mA

FW7290/LiFePO 1cell

Part Number: 1832654

2

CELLS

7.2V 1500mA

FW7290/LiFePO 2cells

Part Number: 1899125

...V ...mA

Need a Custom Solution?

Just get in touch and see how we can help you!

Environmental specifications

Operating temperature 0 – 40° C
Humidity 5 – 95 %
Storage temperature -40 – 70° C
Operating altitude 2000 m

Safety specifications

Safety Standard IEC 60335-2-29, UL 1310
Approvals UK, EU, US
Safety Class II
EMC EN 55014, EN 55032, EN 61000, EN 60601

Labels / Certifications

Further approvals possible after consultation.


Want to know more about Safety Agencies & Markings?

VIEW BLOG

REQUIRED ACCESSORIES

AC Input Plugs

To ensure the seamless functioning of this device, you will require a AC adapter that is compatible with the specific country's power requirements.


AC Input Plugs
A row of black electrical plugs on a white background.
