A white background with the Haredata electronic logo

FRIWO | UK

GPP36

FW-Type: FW7300

36 Watt Medical Grade NiCd/NiMH Charger

A black and white cross icon on a white background.

Medical Grade

Medical power supply with UK plug

Interchangeable Plugs

NiCd/NimH

BATTERY CHARGER

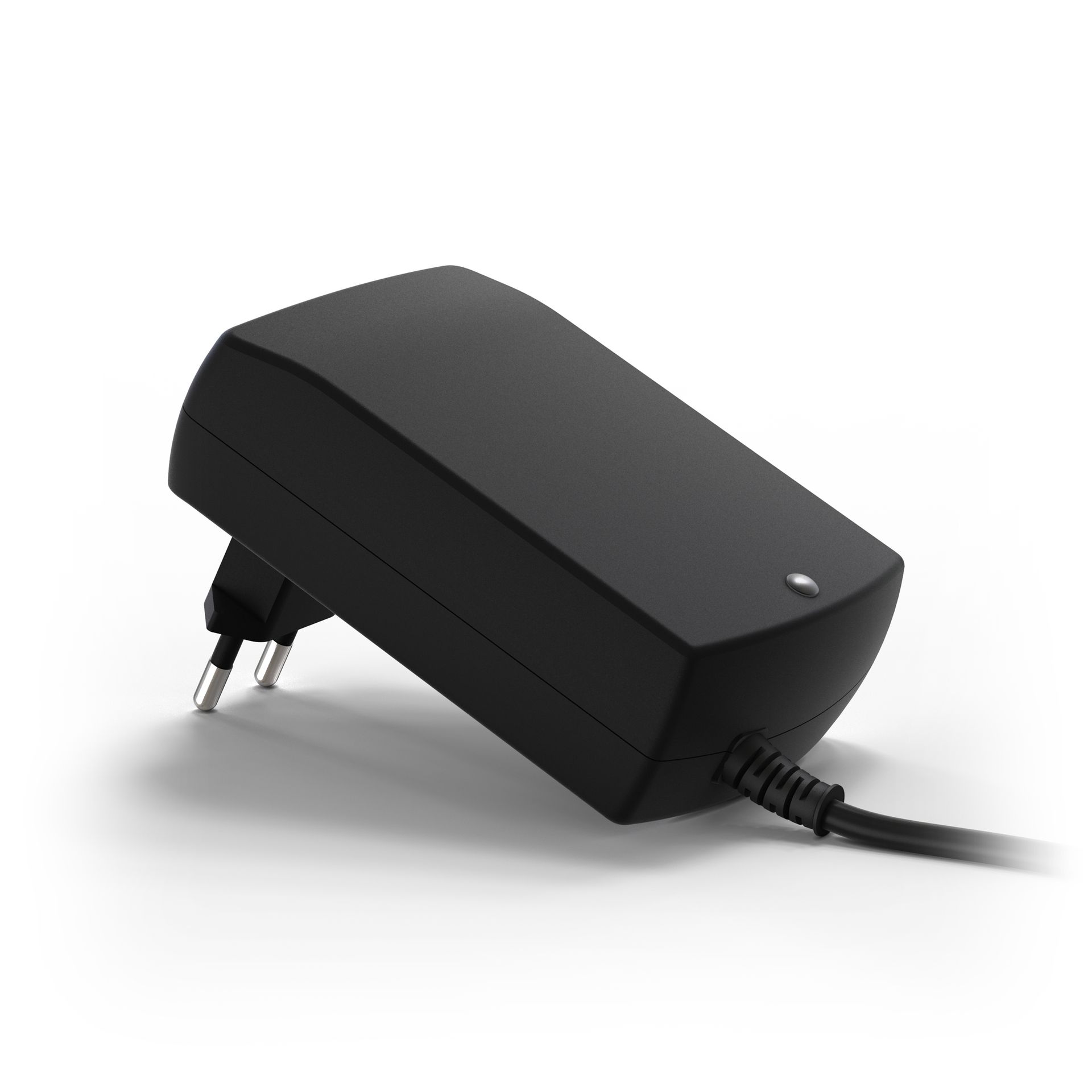

Friwo power supply with EU plug

*PSU Shown with EU plug fitted

Tick

Efficiency Level VI

Tick

Overload Protection

Tick

Overvoltage Protection

Tick

Short Circuit Proof

Dimensions

Power supply drawing

Technical Data

Input voltage 100 – 240 V ± 10 %
Frequency 50 – 60 Hz
Input current 180 –450 mA
Leakage current ≤ 100 μA
Output voltage tolerance ± 10 %
Stand-by ≤ 0.8 W
Efficiency DoE: Energy Efficiency level VI
MTBF 100.000 h*

* Mil217F based on calculations at 120 VAC / 60 Hz & 230 VAC / 50 Hz,

Ambient temperature 25°C, 100% load

Available Outputs

To access the respective datasheet, just click on the appropriate download button below.

2-12

CELLS

2.4 - 14.4 V 1600 - 4000mA

FW7290/MH2-12

Part Number: 1834049

...V ...mA

Need a Custom Solution?

Just get in touch and see how we can help you!

Environmental specifications

Operating temperature 0 – 40° C
Humidity 5 – 95 %
Storage temperature -40 – 70° C
Operating altitude 2000 m

Safety specifications

Safety Standard IEC 60335-1, IEC 60335-2-29, UL 1310
Approvals UK, EU, US, AUS
Safety Class II
EMC EN 55014-1, EN 55014-2

Labels / Certifications

A black and white logo for ukca on a white background.
A black and white ce logo on a white background.
A black and white logo for a company called siq on a white background.
A black and white logo for SA on a white background.
A black and white logo for RCM on a white background.
A black and white logo for TUV on a white background.
A black and white logo for PSE on a white background.

Further approvals possible after consultation.


Want to know more about Safety Agencies & Markings?

VIEW BLOG

REQUIRED ACCESSORIES

AC Input Plugs

To ensure the seamless functioning of this device, you will require a AC adapter that is compatible with the specific country's power requirements.


AC Input Plugs
A row of black electrical plugs on a white background.
