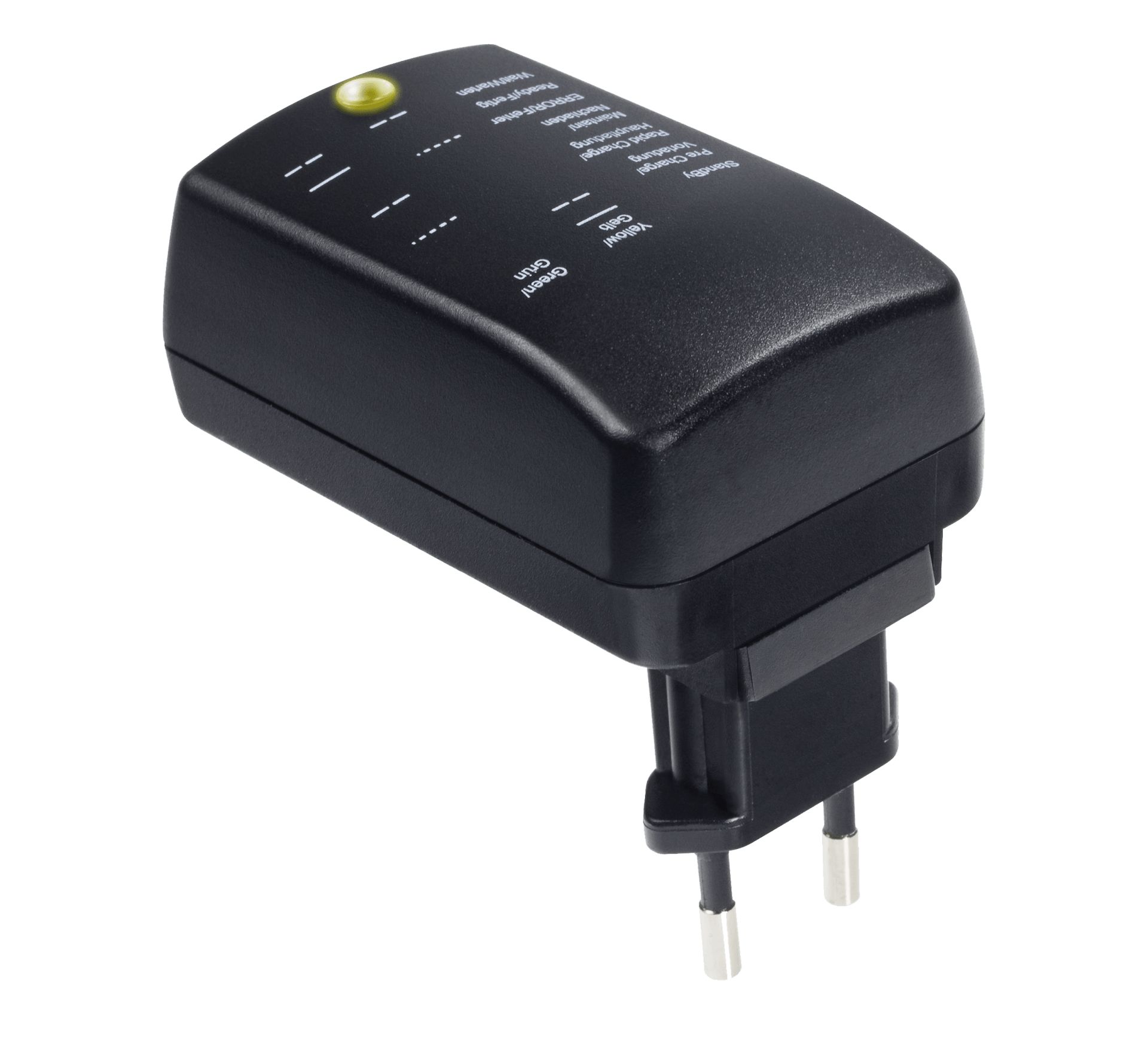

GPP18 NiCd/NimH Charger

FW-Type: FW7290/MH2-6

Medical Grade Interchangeable NiCd/NimH Charger

No. Of Cells: 2-6

Output voltage: 2.4-7.2 V

Input Voltage: 100 - 240V AC (±10%)

Frequency: 50 - 60Hz

Leakage Current: ≤ 100µA

Stand-by: ≤ 0.1W

MTBF: 200,000 hours acc. Mil217F (based on calculations at 120Vac/60Hz & 230Vac/50Hz, ambient 25°C and 100% load)

(The MTBF are theoretically determined values, which does not guarantee the lifetime of the product or of the electrolytic capacitors)

Operating Temperature: 0 - 40°C

Storage Temperature: -25 - 70°C

Operating Altitude: 3000m

Humidity: 10 - 90%

Standards: EN 60335

Approvals: EU, USA, AUS, JPN

Safety Class: II

EMC: EN 55022, EN 55024

Overload & Overvoltage protection

Continuously short circuit proof

DOE Level VI Efficiency

PSU Dimensions: 85 x 52 x 40 mm

Weight: 150g

Plug Connector: AC input / Interchangeable primary adapter system

DC output: 3 Pin Texas Plug

View Accessories

AVAILABLE OUTPUTS

CLICK THE LINK TO DOWNLOAD THE RELEVANT DATASHEET(S)

List of Services

2-6 Cell NiCd/NimH Charger
2,4V - 7,2V / 3000mA worldwide

Part Number: 1832656
NTC-Sensor: R = 10kR ± % / B = 3977

DATASHEET List Item 1

This charger is able to adopt the charging current to the acceptance level of the connected battery as long as there is a temperature sensor (NTC thermistor) to the battery connected. This function will lead to extended or shortened charging times depending on the used battery.

The temperature sensor has to be according to the specified values found in Chapter 6 of the Datasheet.

In case of an open NTC connection the output current of this charger will be limited to 1500mA in order to protect the cells.
