FRIWO | UK

HERC175

FW-Type: FW8175M/OF/HERC

175 Watt Industrial & Medical Grade Open Frame Power Supply

A black and white cross icon on a white background.

Medical Grade

A black and white icon of an open frame power supply on a white background.

Open Frame Design

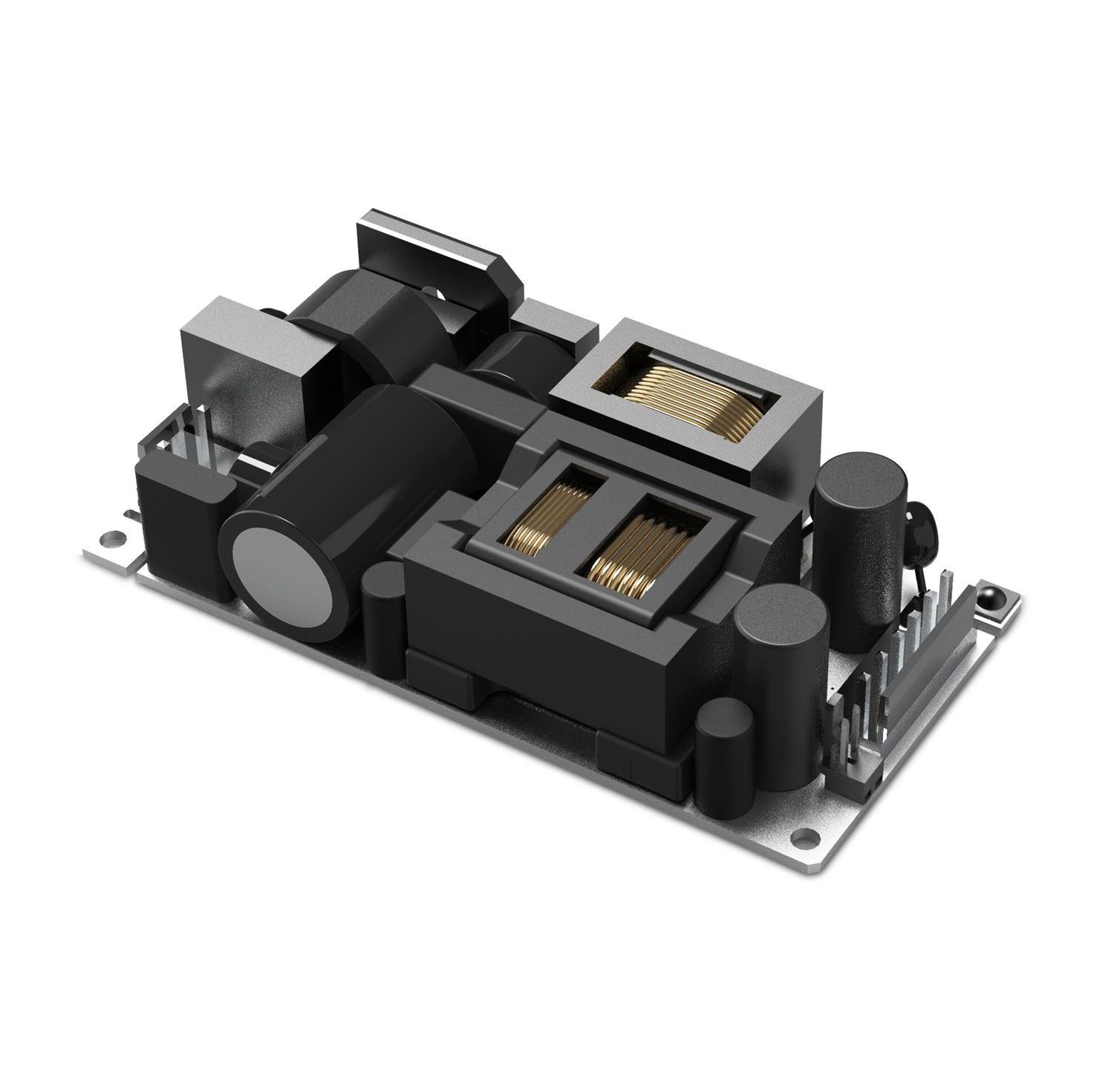

A medical open frame power supply on a white background.
Tick

Efficiency Level VI

Tick

Overload Protection

Tick

Overvoltage Protection

Tick

Short Circuit Proof

Dimensions

A black and white drawing of an open frame power supply with measurements.

Technical Data

Input voltage 100 – 240 V ± 10 %
Frequency 50 – 60 Hz
Input current 1800 – 900 mA
Earth Leakage Current ≤ 100 μA
Touch Current ≤ 100 μA
Output Voltage Tolerance +/- 3 %
Stand-by ≤ 0,21 W
MTBF 200.000 h*

* Mil217F based on calculations at 120 VAC / 60 Hz & 230 VAC / 50 Hz,

Ambient temperature 25°C, 100% load

Available Outputs

To access the respective datasheet, just click on the appropriate download button below.

12V 10,000mA*

12V 14,600mA**

FW8175M/OF/12/HERC

Part Number: 1899208

15V 8,000mA*

15V 11,600mA**

FW8175M/OF/15/HERC

Part Number: 1899209

24V 5,000mA*

24V 7,300mA**

FW8175M/OF/24/HERC

Part Number: 1899059

28V 4,300mA*

28V 6,250mA**

FW8175M/OF/28/HERC

Part Number: 1899726

36V 3,333mA*

36V 4,850mA**

FW8175M/OF/36/HERC

Part Number: 20000653

48V 2,500mA*

48V 3,650mA**

FW8175M/OF/48/HERC

Part Number: 20002366

...V ...mA

Need a Custom Solution?

Just get in touch and see how we can help you!

*Output when Convection Cooled: 120W

**Output when Forced Cooled: 175W

Environmental specifications

Operating temperature -20 – 70° C
Humidity 95 % Max.
Storage temperature -40 – 85° C
Operating altitude 5000 m

Safety specifications

Safety Standard IEC 60601-1, IEC 62368-1
Approvals UK, EU, UL
EMC EN 55011, EN 55032, EN 60601-1-2
Medical Protection 2 x MOPP

Labels / Certifications

A black and white logo for UKCA certification on a white background.
A black and white ce logo on a white background.
A black and white logo for a company called siq on a white background.
RU Certification

Further approvals possible after consultation.
