FRIWO | UK

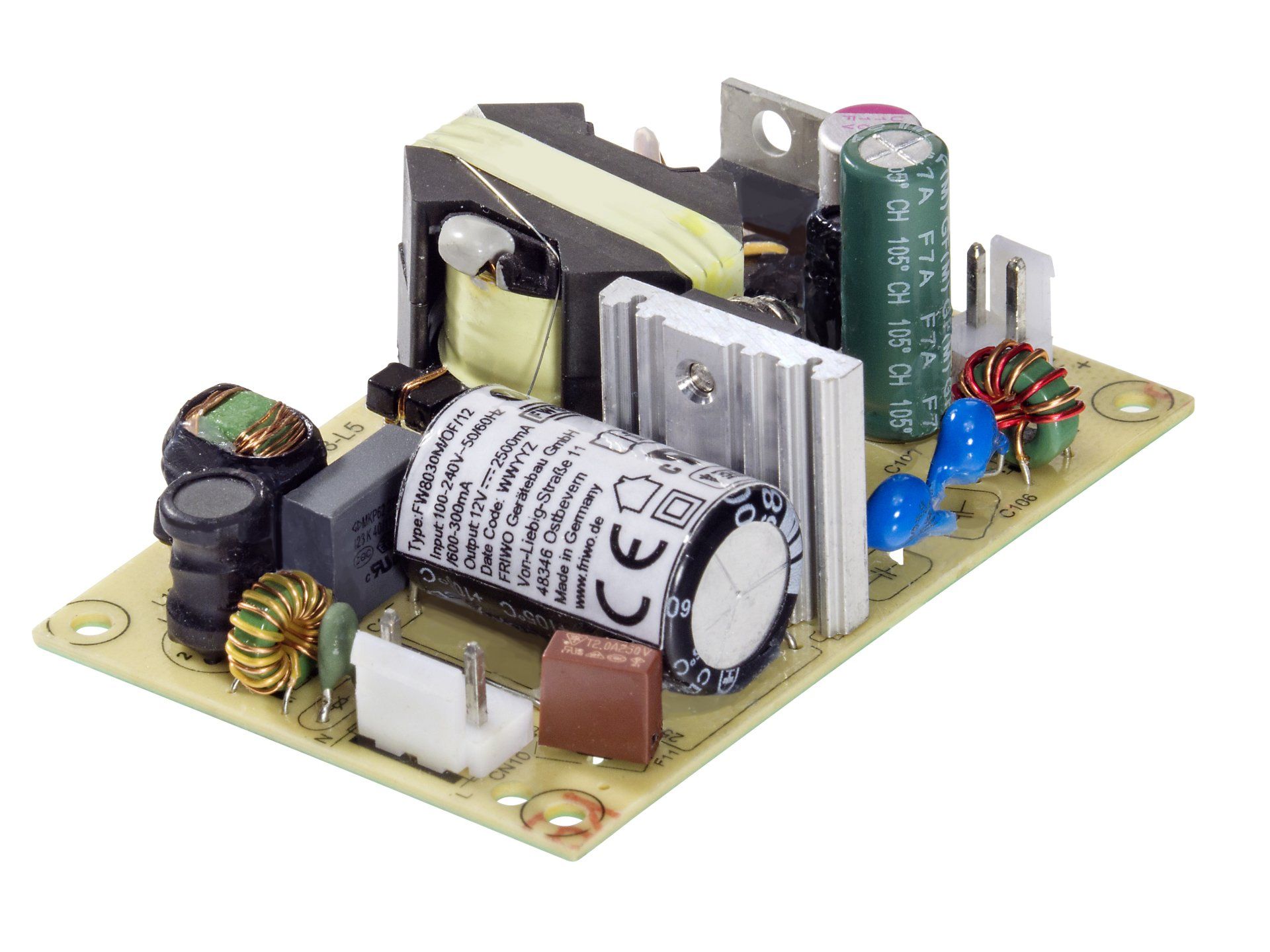

HERC30 MEDICAL
FW-Type: HERC
 Medical Open Frame Power Supply
open frame power supplies

City skyline

Photo By: John Doe
Button

Input Voltage:   100 - 240V AC (±10%)


Output voltage:   Various (see table below)


Frequency:   50 - 60Hz


Leakage Current:   ≤ 10µA


Stand-by:   ≤ 0.1W


MTBF:   500,000 hours acc. Mil217F (based on calculations at 120Vac/60Hz & 230Vac/50Hz, ambient 25°C and 100% load)

(The MTBF are theoretically determined values, which does not guarantee the lifetime of the product or of the electrolytic capacitors)

Operating Temperature:   0 - 40°C


Storage Temperature:   -40 - 85°C


Operating Altitude:   3000m


Humidity:   10 - 95%


Standards:   IEC 62368-1, IEC 60335


Approvals:   EU, USA, AUS, JPN


Safety Class:   II


EMC:   EN 55022, EN 55024


Overload & Overvoltage protection


Continuously short circuit proof


DOE Level VI Efficiency

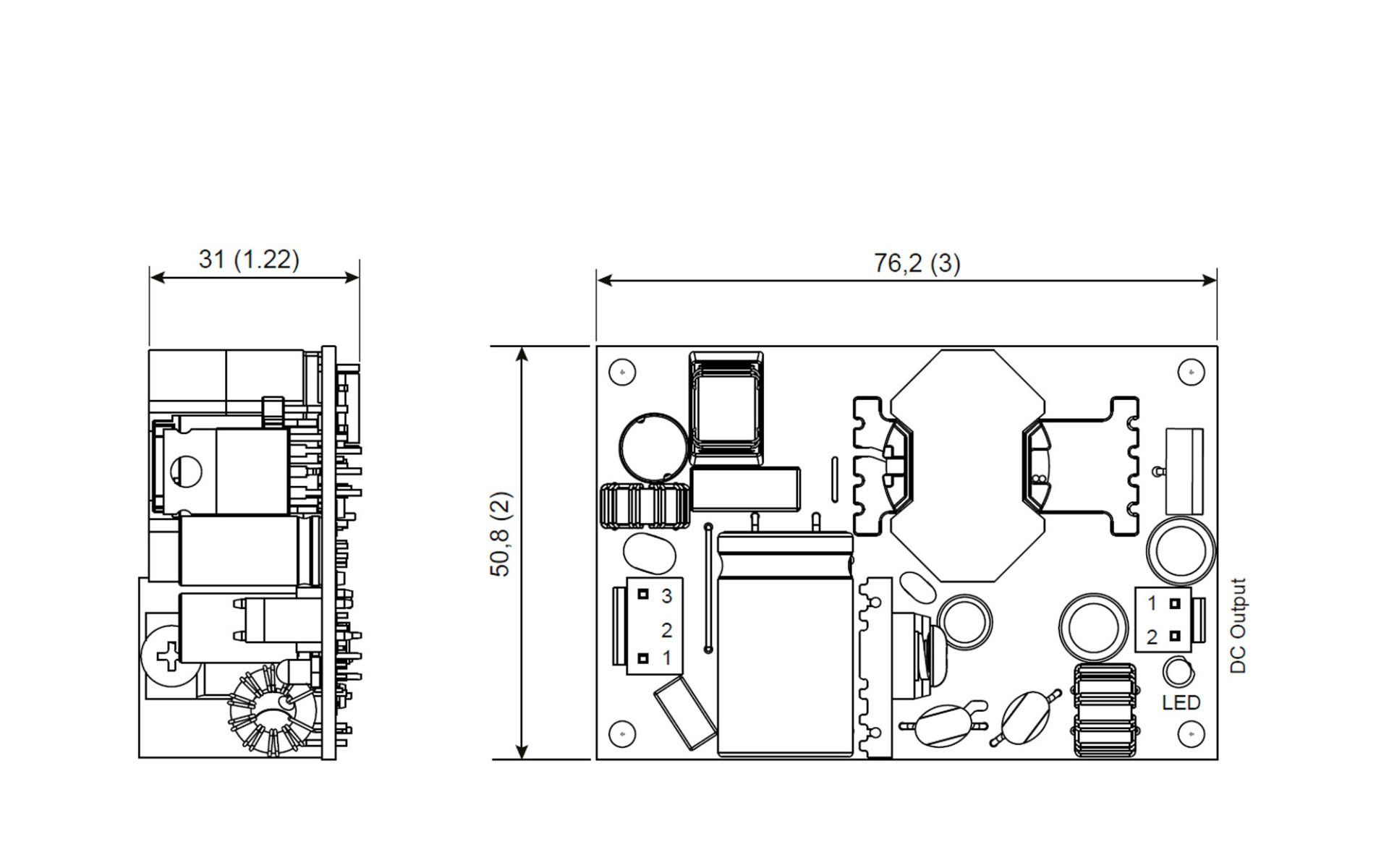

PSU Dimensions:   76.2 x 50.8 x 31 mm


Weight:   55g


Casing:   Open Frame


AC Input: flat pin connector


DC output: flat pin connector


AVAILABLE OUTPUTS
GET IN TOUCH FOR FURTHER INFORMATION AND DATASHEETS

A blue 5v logo on a white background.

5000 mA

HERC30/05

Part Number: 1899388

Button
A blue 12v logo on a white background.
A blue 15v logo on a white background.
A blue 24v logo on a white background
A blue 48v logo on a white background
A blue letter v with three dots on a white background.

CUSTOM OUTPUT

Available for OEM Projects

that meet the required MOQ

Button
This PSU is also available with...
INTERCHANGEABLE PLUGS
NEED SOME HELP?
Just get in touch & speak to one of our experts.

We will gladly guide you through our range and find the perfect product to power your success!
NEED A QUOTE?

Fill Out This Form And We Will Get In Touch!

NEED MORE POWER?
Use our Quick & Handy product selector below!
Down Arrow

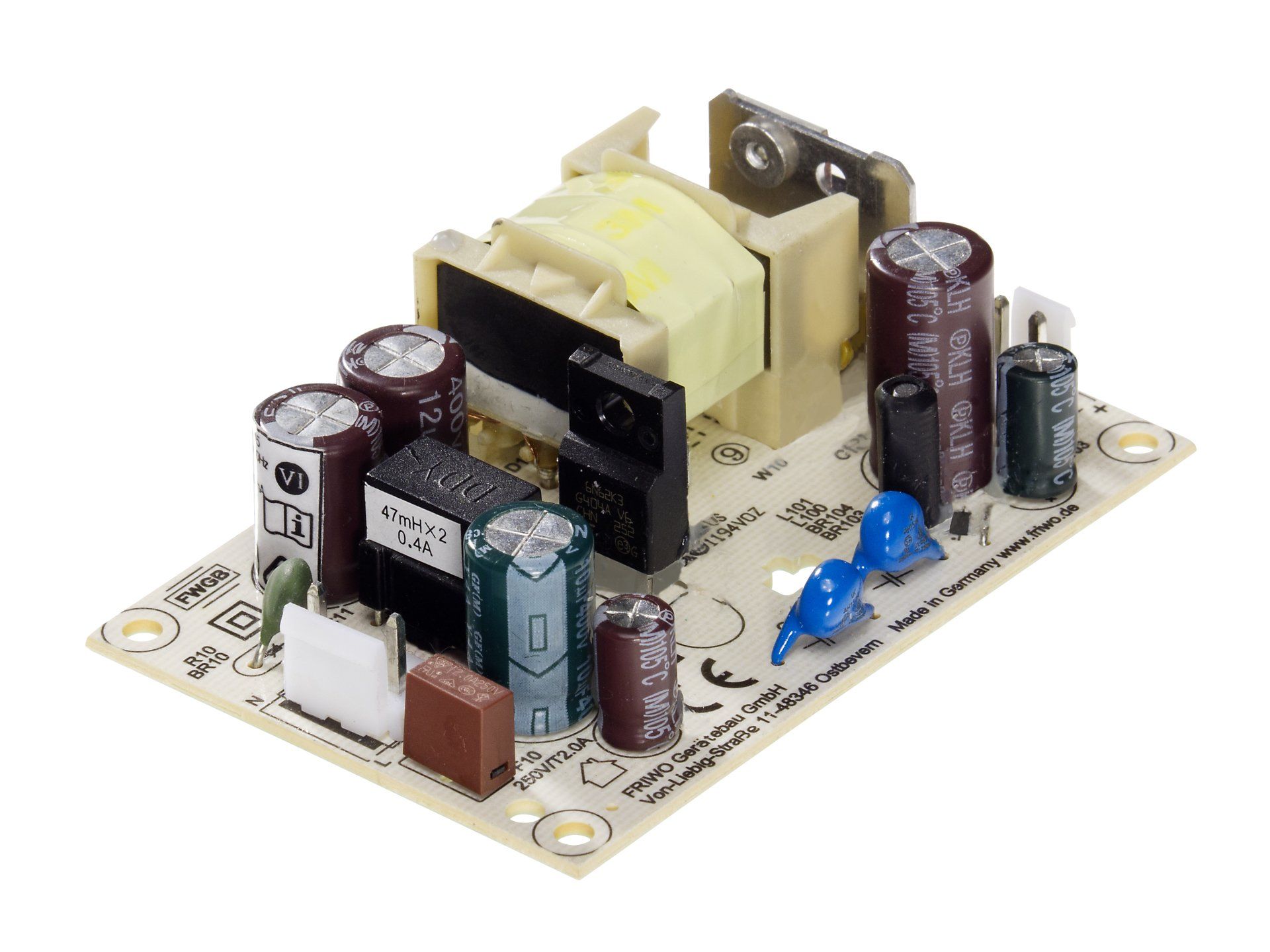

FOX 6 POWER SUPPLY

HERC18

CLICK TO VIEW

Button
FOX 12 POWER SUPPLY

HERC30

[SELECTED]

Button

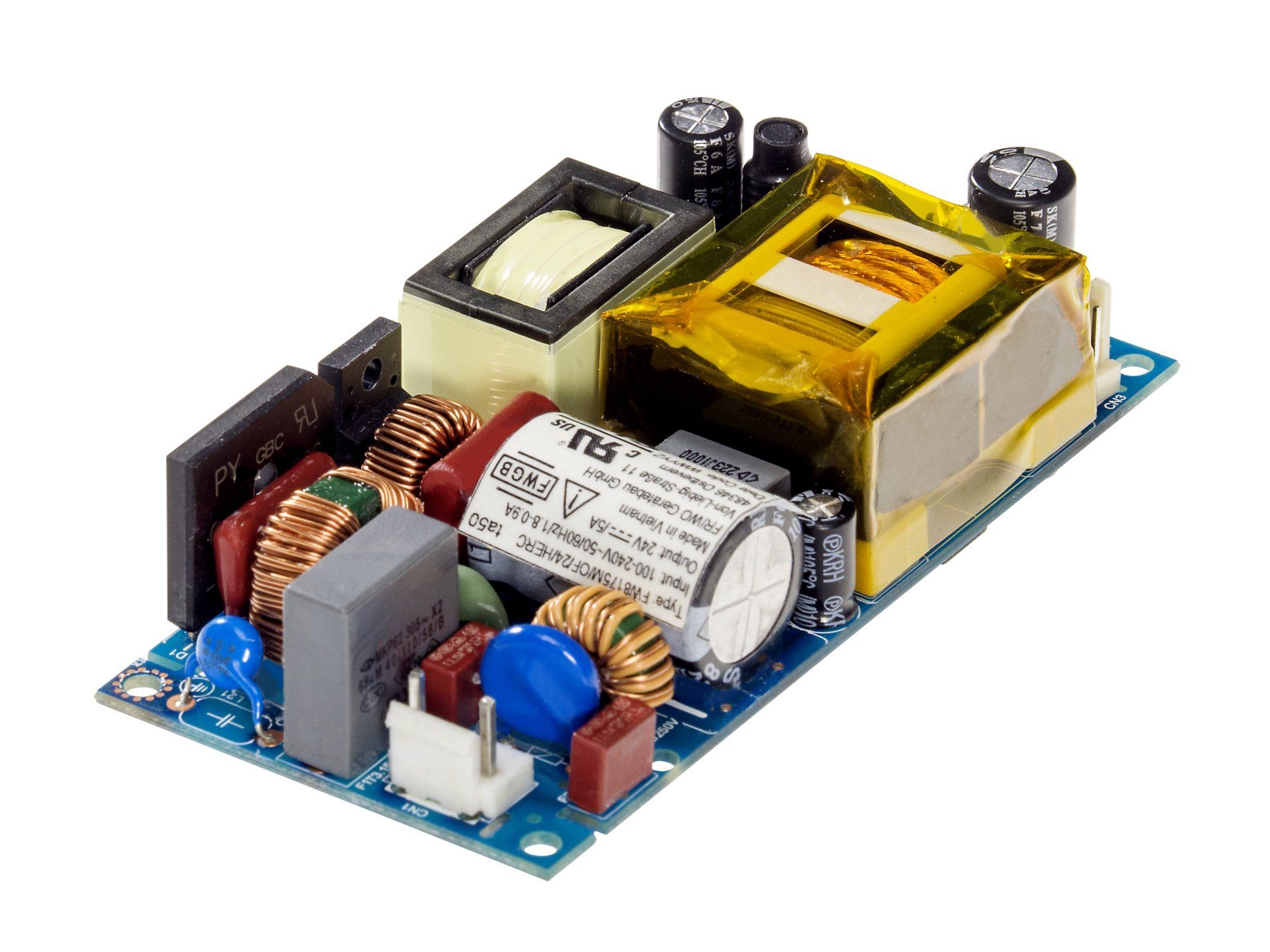

FOX 18 POWER SUPPLY
