FRIWO | UK

MPP15

FW-Type: FW7219

15 Watt Medical Grade Lithium Ion (Li-Ion) Charger

A black and white cross icon on a white background.

Medical Grade

Medical power supply with UK plug

Interchangeable Plugs

Lithium Ion

BATTERY CHARGER

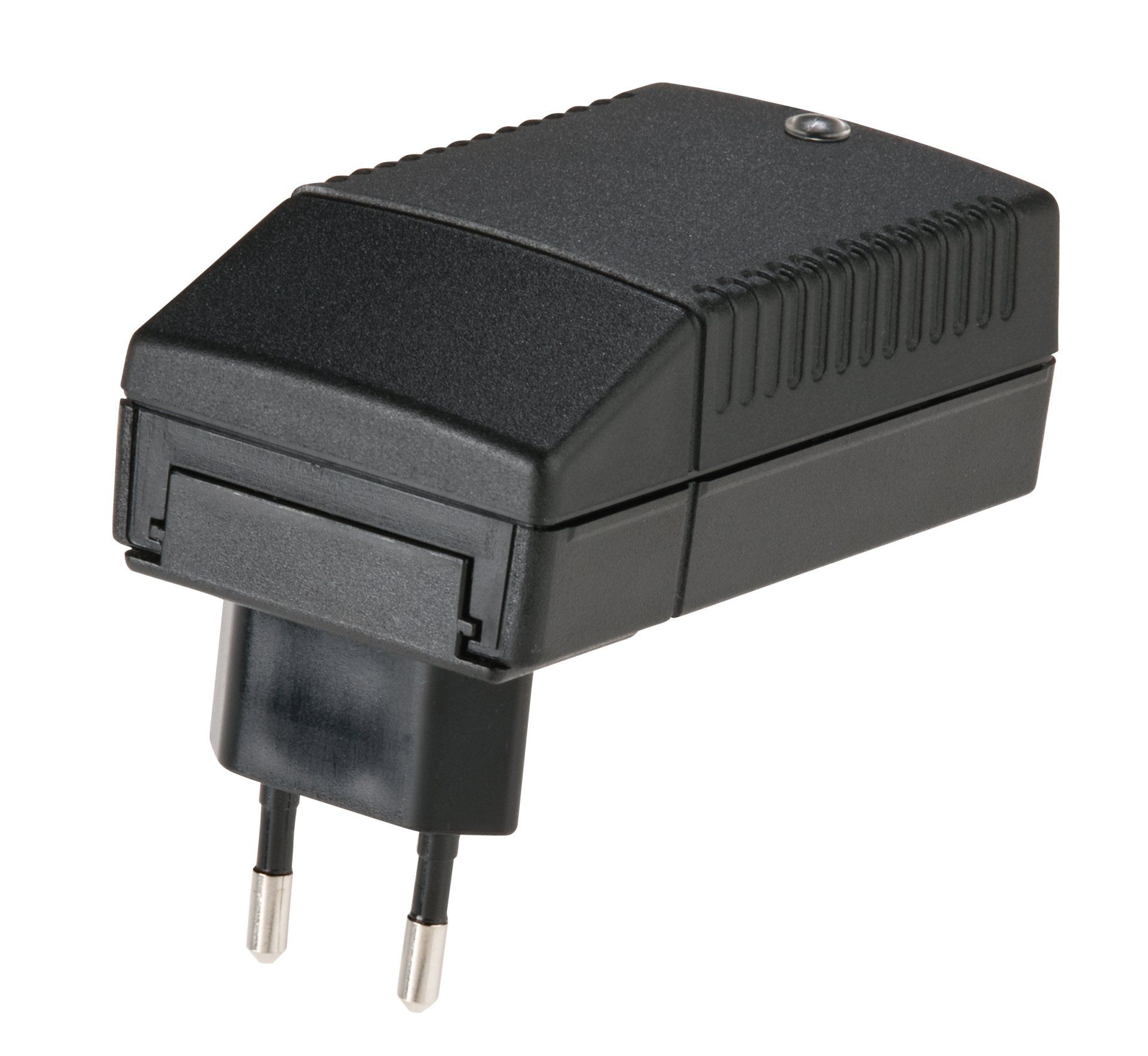

Friwo power supply with EU plug

*PSU Shown with EU plug fitted

Tick

Efficiency Level VI

Tick

Overload Protection

Tick

Overvoltage Protection

Tick

Short Circuit Proof

Dimensions

Power supply drawing

Technical Data

Input voltage 100 – 240 V ± 10 %
Frequency 50 – 60 Hz
Input current 250 –300 mA
Leakage current ≤ 100 μA
Output voltage tolerance ± 10 %
Stand-by ≤ 0.5 W
Efficiency DoE: Energy Efficiency level VI
MTBF 200.000 h*

* Mil217F based on calculations at 120 VAC / 60 Hz & 230 VAC / 50 Hz,

Ambient temperature 25°C, 100% load

Available Outputs

To access the respective datasheet, just click on the appropriate download button below.

2

CELLS

8.4V 800mA

FW7219/LION2

Part Number: 1826003

3

CELLS

12.6V 800mA

FW7219/LION3

Part Number: 1832658

4

CELLS

16.8V 800mA

FW7219/LION4

Part Number: 1826006

...V ...mA

Need a Custom Solution?

Just get in touch and see how we can help you!

Environmental specifications

Operating temperature 0 – 40° C
Humidity 5 – 95 %
Storage temperature -40 – 70° C
Operating altitude 2000 m

Safety specifications

Safety Standard EN 60601-1, IEC 60335-2-29
Approvals UK, EU, US, AUS
Safety Class II
EMC EN 55014-1:2017, EN 55014-2:2015

Labels / Certifications

Further approvals possible after consultation.


Want to know more about Safety Agencies & Markings?

VIEW BLOG

Lithium Ion Battery Packs

Pre-Approved Battery Packs Suitable For Use With This Charger

A black battery with three wires attached to it

2S1P

7.2V / 2,900mAh

A black battery with three wires attached to it

3S1P

10.8V / 2,900mAh

A black battery with three wires attached to it

3S2P

10.8V / 5,800mAh

A black battery with three wires attached to it

4S1P

14.4V / 2,900mAh

REQUIRED ACCESSORIES

AC Input Plugs

To ensure the seamless functioning of this device, you will require a AC adapter that is compatible with the specific country's power requirements.


AC Input Plugs
A row of black electrical plugs on a white background.
