FRIWO | UK

NEO12

NEO012.0-I-X

12 Watt Medical Grade Interchangeable Power Supply

Overload Protection  |  Overvoltage Protection  |  Continuously Short Circuit Proof

Dimensions

A black and white drawing of a power supply with measurements on a white background.

Technical Data

Input voltage 100 – 240 V ± 10 %
Frequency 50 – 60 Hz
Input current 300 – 150 mA
Leakage current ≤ 10 μA
Output voltage tolerance ± 5 %
Turn-on delay ≤ 2 s
Stand-by ≤ 0.1 W
Efficiency DoE: Energy Efficiency level VI
MTBF 200.000 h*

* Mil217F based on calculations at 120 VAC / 60 Hz & 230 VAC / 50 Hz,

Ambient temperature 25°C, 100% load

Available Outputs*

To access the respective datasheet, just click on the appropriate download button below.

5V 2000mA

NEO012.0-I-X-05

Part Number: 1960972

12V 1000mA

NEO012.0-I-X-12

Part Number: 1960973

24V 500mA

NEO012.0-I-X-24

Part Number: 1960974

...V ...mA

Need a Custom Solution?

Just get in touch and see how we can help you!

*MORE OUTPUTS AVAILABLE AS PART OF OUR STANDARD FOX RANGE >>>

   6V - 7.5V - 9V - 15V - 18V

Industrial Grade

Don't Need Medical Approval?

This power supply is available for non-medical.

Environmental specifications

Operating temperature 0 – 45° C
Humidity 10 – 95 %
Storage temperature -40 – 70° C
Operating altitude 5000 m

Safety specifications

Safety Standard IEC 60601-1, IEC 62368-1
Approvals UK, EU, USA, AUS, JPN, CN
Safety Class II
EMC EN 60601-1-2:2015, EN 55032:2015, EN 55035:2017
Medical Protection 2 x MOPP

Labels / Certifications

A black and white logo for uk ca on a white background.
A black and white ce logo on a white background.
A black and white logo for a company called siq on a white background.
A black and white logo with three letters in a circle on a white background.
A black and white triangle with a check mark inside of it.
The RU logo is a black and white logo on a white background.
The word eac is written in black on a white background.
View more

Further approvals possible after consultation.


Want to know more about Safety Agencies & Markings?

VIEW BLOG

Necessary Accessories


To ensure the seamless functioning of this device, you will require a AC adapter that is compatible with the specific country's power requirements, along with a DC connector that perfectly matches your application.

A red and white rs logo on a white background

Need a Quick Sample?

Order A Sample Kit From RS Components!

This Includes:

  • Selected NEO Power Supply
  • 4 Interchangeable Country Adapter (UK/AUS/EU/USA)
  • DC Lead with 7 Commonly used Snap-in Connectors


Need something custom?

Just reach out!

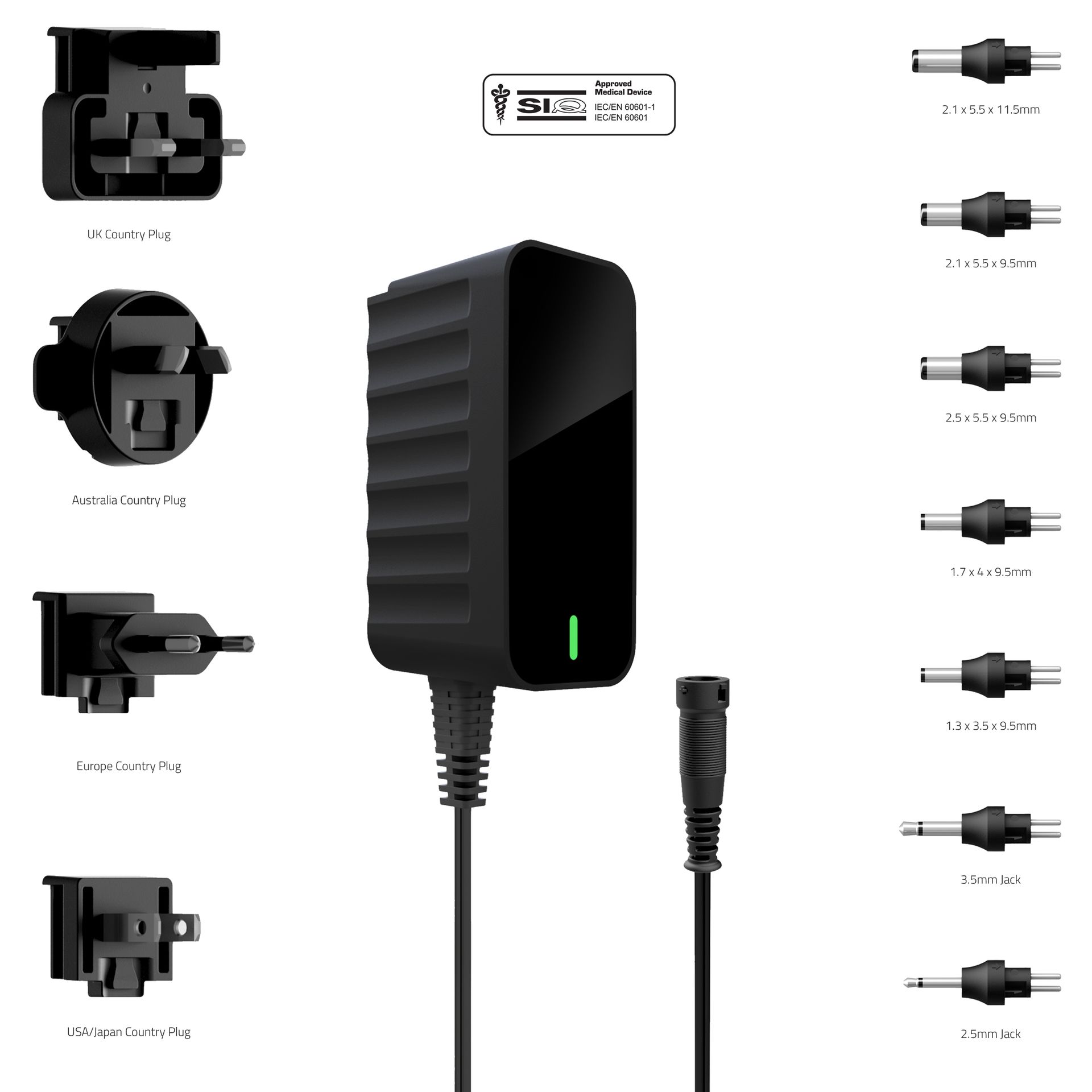

A power supply with a lot of different types of plugs attached to it.

Complete Component Traceability!


Our NEO Power Supply Units feature a QR Code integrated on both the product housing and internal PCBs during the manufacturing process.


This allows for comprehensive information on the part's creation date, the specific components utilized, and their origin.


We consider this tool to be highly advantageous for quality control purposes.


When coupled with our NEO 3 Year Warranty, it offers you absolute peace of mind, even in the improbable scenario of any issues arising!

A book is open to a page that says foxneo

NEO Catalogue

An informative summary of our cutting-edge NEO Power Supply Range.

Showcasing innovative design elements and essential safety features.


A must-read for design engineers seeking to energize their existing or upcoming projects. Get your copy today!


Download Now!

Require any assistance?

Just get in touch with one of our experienced specialists who are ready to help!


We will happily guide you through our wide range of options and find the perfect solution to power your success!

Contact Us

NEO12 | Quote Request

Fill Out This Form And We Will Get In Touch!

Units Available in this Range

Click the Image tiles to view additional power options in this Product Range.

A black power supply is sitting on a white surface
A black power supply is sitting on a white surface
A black power supply is sitting on a white surface
A black power supply is sitting on a white surface
