FRIWO | UK

OF250

FW-Type: OF250-24

250 Watt Industrial & Medical Grade Open Frame Power Supply

A black and white cross icon on a white background.

Medical Grade

A black and white icon of an open frame power supply on a white background.

Open Frame Design

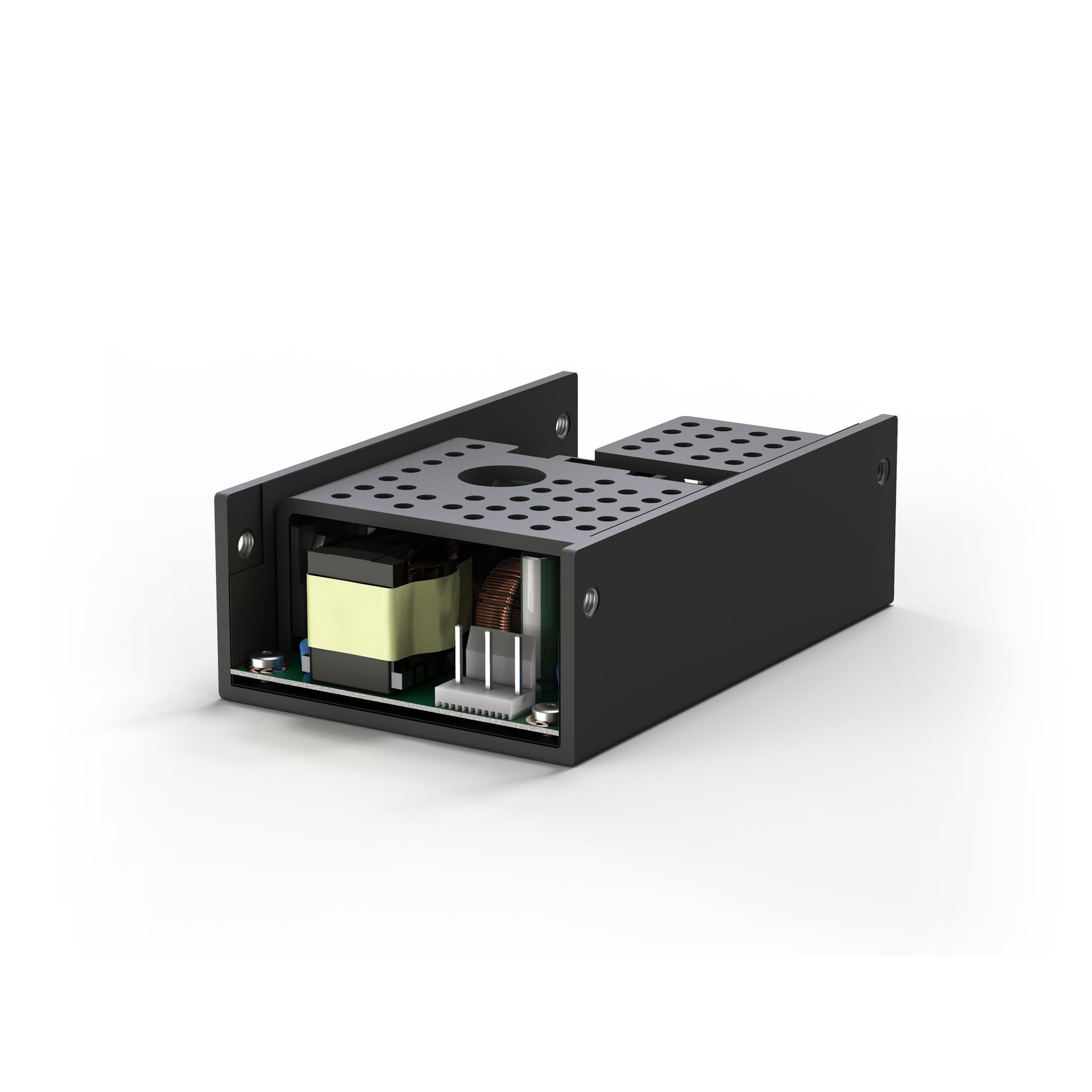

A 3d model of an open frame power supply on a white background
Tick

Efficiency Level VI

Tick

Overload Protection

Tick

Overvoltage Protection

Tick

Short Circuit Proof

Dimensions

A black and white drawing of an open frame power supply with measurements.

Technical Data

Input Voltage 100 – 240 V
Frequency 50 – 60 Hz
Input Current 3500 - 1200 mA
Earth Leakage Current ≤ 500 μA
Touch Current ≤ 100 μA
Output Voltage Tolerance ± 5 %
Stand-by ≤ 1.0 W
MTBF 200.000 h*

* Mil217F based on calculations at 120 VAC / 60 Hz & 230 VAC / 50 Hz,

Ambient temperature 25°C, 100% load

Available Outputs

To access the respective datasheet, just click on the appropriate download button below.

24V / 5V* 10500 / 500*mA

OF250-24

Part Number: 1891705

* Auxiliary Voltage Output

...V ...mA

Need a Custom Solution?

Just get in touch and see how we can help you!

Environmental specifications

Operating temperature 0 – 50° C
Humidity 95 % Max.
Storage temperature -20 – 85° C
Operating altitude 3000 m

Safety specifications

Safety Standard IEC 60601-1, 62368-1
Approvals UK, EU, USA
EMC EN 55032, EN 55024, EN 60601-1-2

Labels / Certifications

A black and white logo for UKCA certification on a white background.
The ul logo is a black and white logo on a white background.
A black and white ce logo on a white background.
A black and white logo for a company called siq on a white background.
ENEC Certification

Further approvals possible after consultation.
