FRIWO | UK

UPUSB-A/C

FW-Type: FW7810

15 Watt Industrial Grade In Wall Power Supply

A black and white line drawing of a factory.

Industrial / Home / Office Grade

It is a black and white icon of a power supply with UK plug.

Flush Mounted (In-Wall)

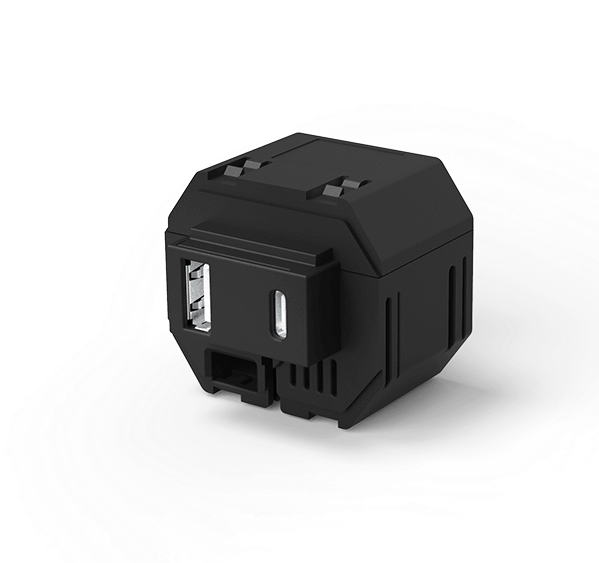

A black power supply is sitting on a white surface
Tick

Efficiency Level VI

Tick

Overload Protection

Tick

Overvoltage Protection

Tick

Short Circuit Proof

Dimensions

A black and white drawing of a power supply with measurements on a white background.

Technical Data

Input voltage 100 – 240 V ± 10 %
Frequency 50 – 60 Hz
Input current 300 mA
Leakage current ≤ 30 μA
Output voltage tolerance ± 5 %
MTBF 200.000 h*

* Mil217F based on calculations at 120 VAC / 60 Hz & 230 VAC / 50 Hz,

Ambient temperature 25°C, 100% load

Available Outputs

5V 3000mA

With USB A & C

FW7810

Part Number: 1899702

...V ...mA

Need a Custom Solution?

Just get in touch and see how we can help you!

Environmental specifications

Operating temperature 0 – 35° C
Humidity 10 – 90 %
Storage temperature -20 – 70° C

Safety specifications

Safety Standard IEC62368-1
Approvals UK, EU, CN
EMC EN 55032, EN 55035

Labels / Certifications

A black and white logo for uk ca on a white background.
A black and white ce logo on a white background.
A black and white logo for en ec on a white background.
A black and white triangle with the word dve on it.
CCC Certification

Further approvals possible after consultation.
