FOX12-XM-USB
FW-Type: FW8000M/USB
12 Watt Medical Grade USB Power Supply
*PSU Shown with EU plug fitted

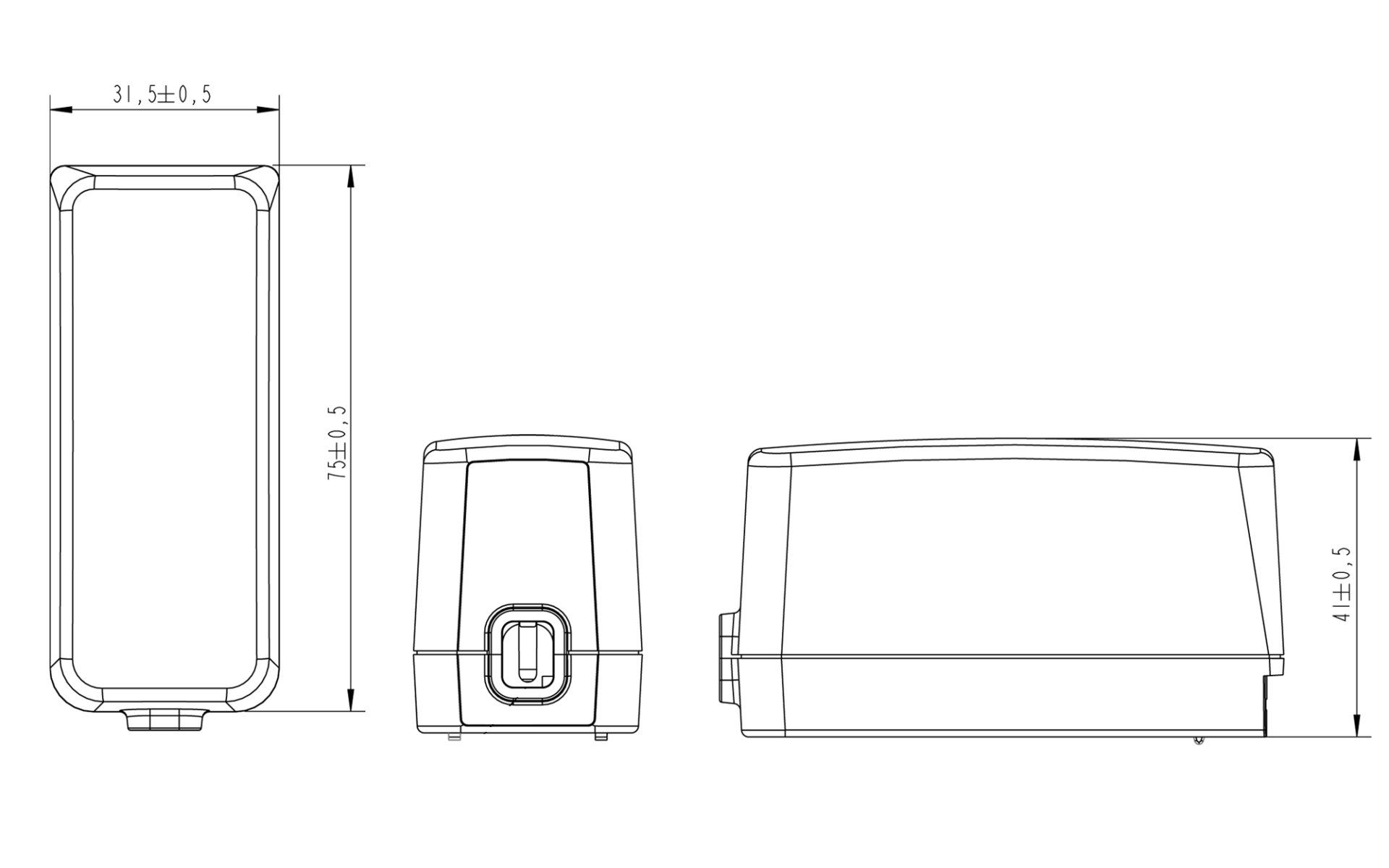

Dimensions
Technical Data
| Input voltage | 100 – 240 V ± 10 % |
|---|---|
| Frequency | 50 – 60 Hz |
| Input current | 300 – 150 mA |
| Leakage current | ≤ 10 μA |
| Output voltage tolerance | ± 5 % |
| Turn-on delay | ≤ 2 s |
| Stand-by | ≤ 0.1 W |
| Efficiency | DoE: Energy Efficiency level VI |
| MTBF | 200.000 h* |
* Mil217F based on calculations at 120 VAC / 60 Hz & 230 VAC / 50 Hz,
Ambient temperature 25°C, 100% load
Available Outputs
To access the respective datasheet, just click on the appropriate download button below.
Environmental specifications
| Operating temperature | 0 – 45° C |
|---|---|
| Humidity | 10 – 95 % |
| Storage temperature | -40 – 70° C |
| Operating altitude | 3000 m |
Safety specifications
| Safety Standard | IEC 60601-1 |
|---|---|
| Approvals | UK, EU, USA, AUS, JPN |
| Safety Class | II |
| EMC | EN 60601-1-2:2015 |
| Medical Protection | 2 x MOPP |
REQUIRED ACCESSORIES
AC Input Plugs
To ensure the seamless functioning of this device, you will require a AC adapter that is compatible with the specific country's power requirements.
