FRIWO | UK

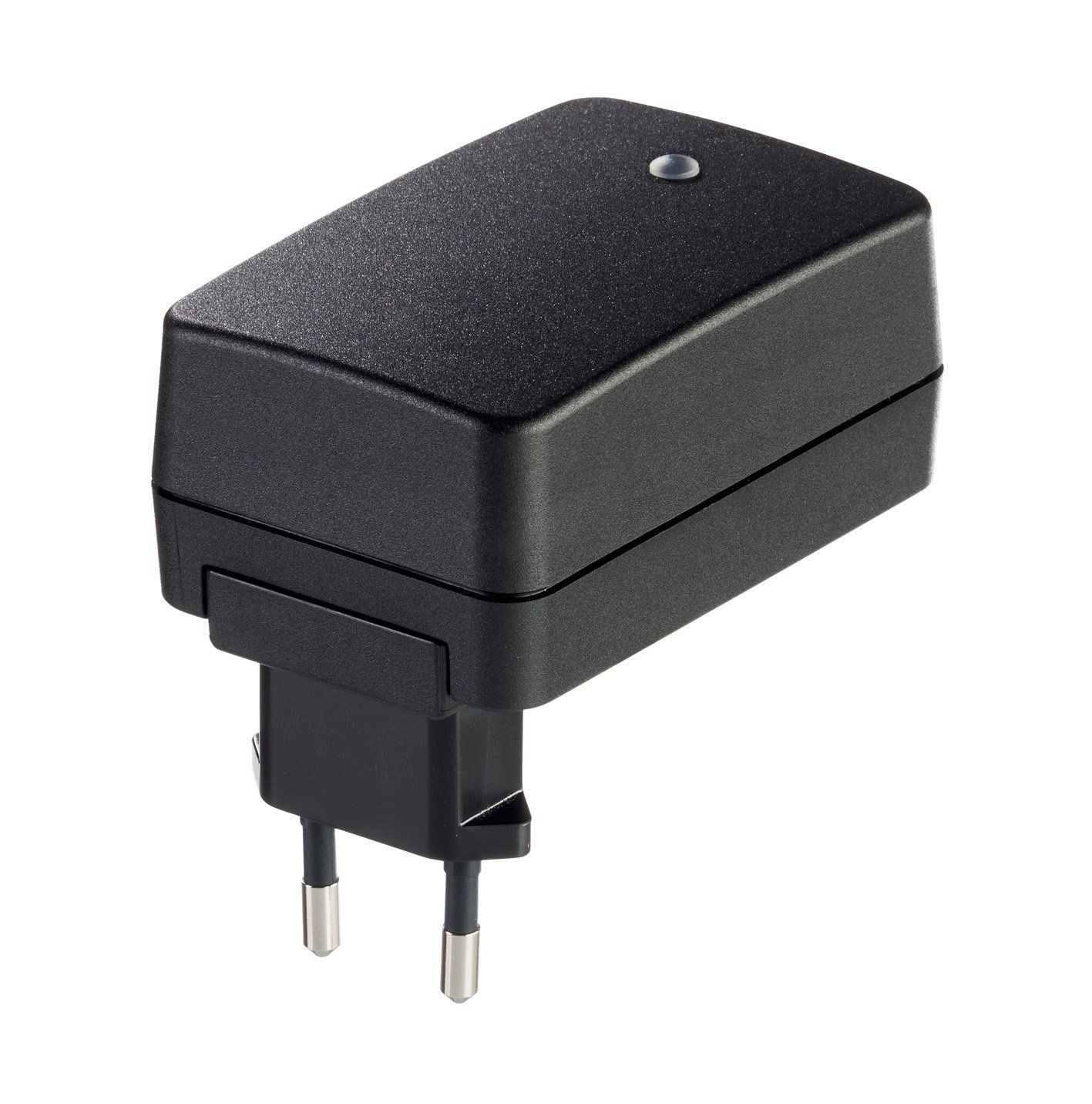

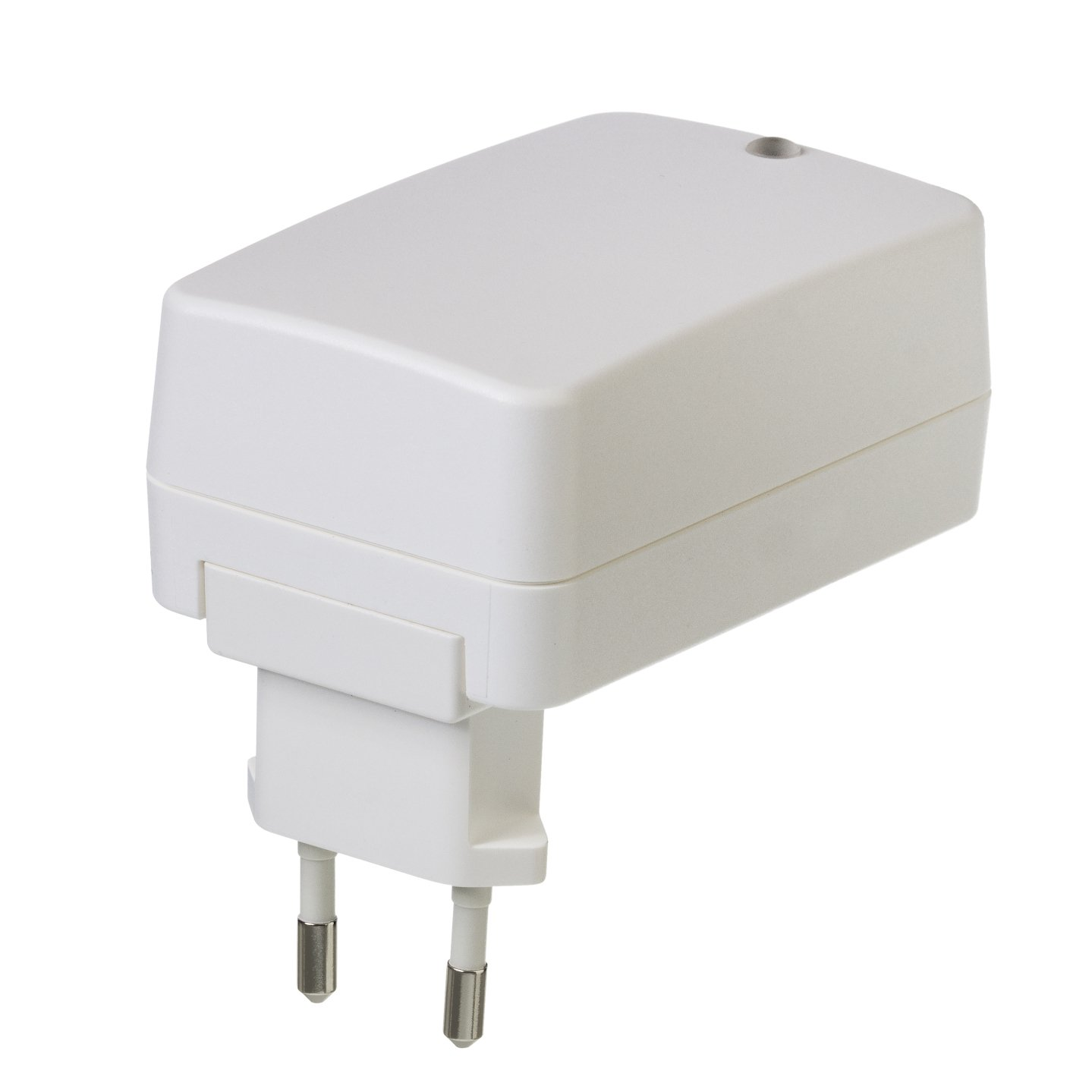

*PSU Shown with EU plug fitted
FOX18 MEDICAL PSU
FW-Type: FW8001M/XX
Medical Grade Interchangeable Power Supply

Input Voltage:   100 - 240V AC (±10%)


Output voltage:   Various (see table below)


Frequency:   50 - 60Hz


Leakage Current:   ≤ 10µA


Stand-by:   ≤ 0.1W


MTBF:   200,000 hours acc. Mil217F (based on calculations at 120Vac/60Hz & 230Vac/50Hz, ambient 25°C and 100% load)

(The MTBF are theoretically determined values, which does not guarantee the lifetime of the product or of the electrolytic capacitors)

Operating Temperature:   0 - 40°C


Storage Temperature:   -40 - 70°C


Operating Altitude:   3000m


Humidity:   10 - 95%


Standards:   IEC 62368-1, IEC 60335


Approvals:   EU, USA, AUS, JPN


Safety Class:   II


EMC:   EN 55022, EN 55024


Overload & Overvoltage protection


Continuously short circuit proof


DOE Level VI Efficiency

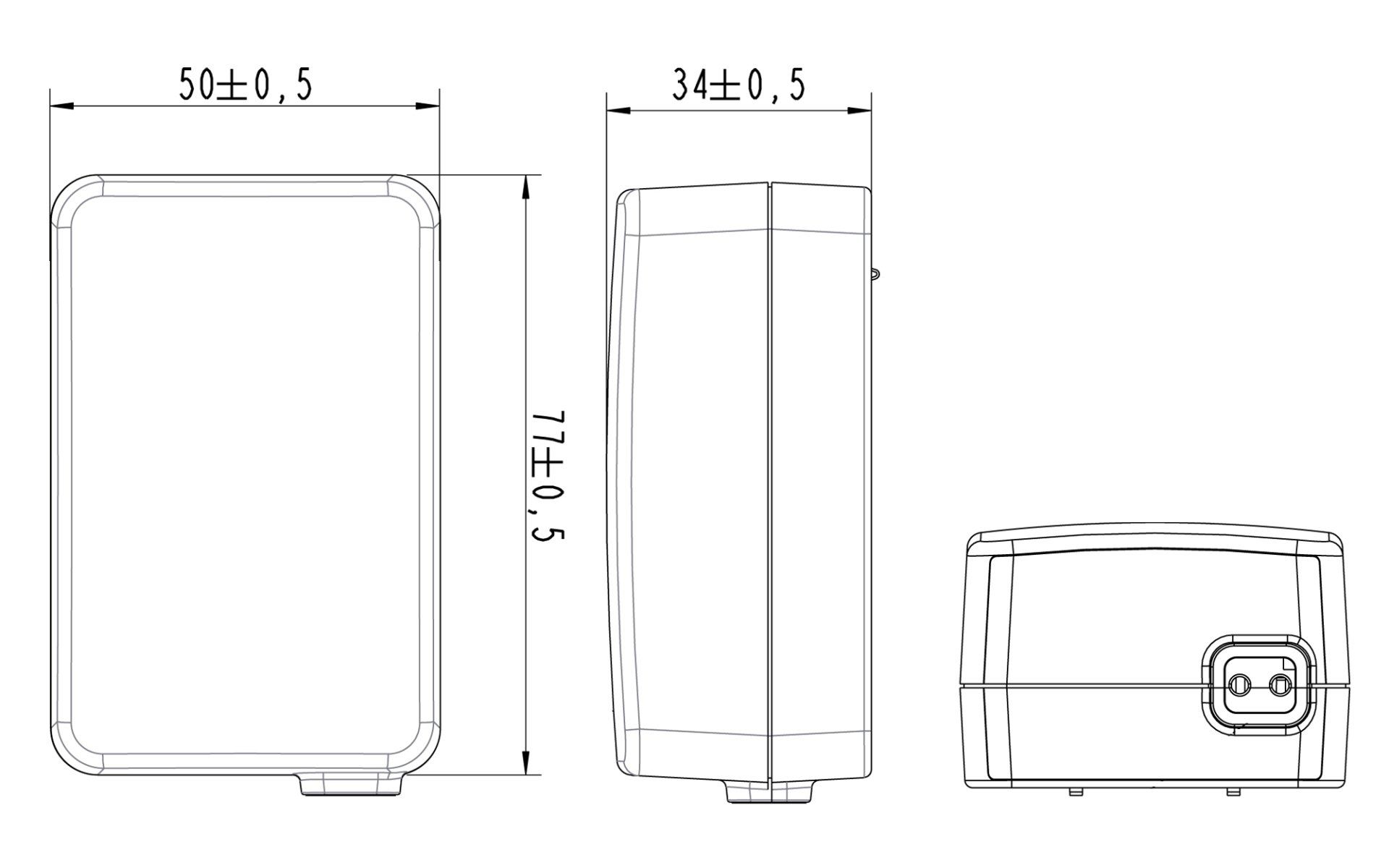

PSU Dimensions:   77 x 50 x 34mm


Weight:   157g


Casing:   Double Safety, Snapped & Welded


Plug Connector:   AC input / Interchangeable primary adapter system


DC output:   Secondary adapter system


View Accessories
AVAILABLE OUTPUTS
CLICK TILES BELOW TO DOWNLOAD RELEVANT DATASHEET
A blue 5v logo on a white background.

3000 mA

FW8001M/5

Part Number: 1898133

Basic Part No: 1896601

Button
A blue 6v logo on a white background.

3000 mA

FW8001M/6

Part Number: 1898134

Basic Part No: 1896602

Button
A blue 7.5v logo on a white background.

2400 mA

FW8001M/8

Part Number: 1898135

Basic Part No: 1896603

Button
A blue 9v logo on a white background.
A blue 12v logo on a white background.
A blue 15v logo on a white background.
A blue 18v logo on a white background.
A blue 24v logo on a white background
A blue 48v logo on a white background
A blue letter v with three dots on a white background.

CUSTOM OUTPUT


Available for OEM Projects

that meet the required MOQ

Button
Required Accessories
For the operation of this device you need a primary AC adapter and a DC secondary adapter.
FOX AC plug system
FOX DC plug system
IPX2 FOX PLUGS

NEW!

The optional IP42 plug adapter from FRIWO is an interchangeable adapter system that offers additional protection for use in damp environments.
