FRIWO | UK

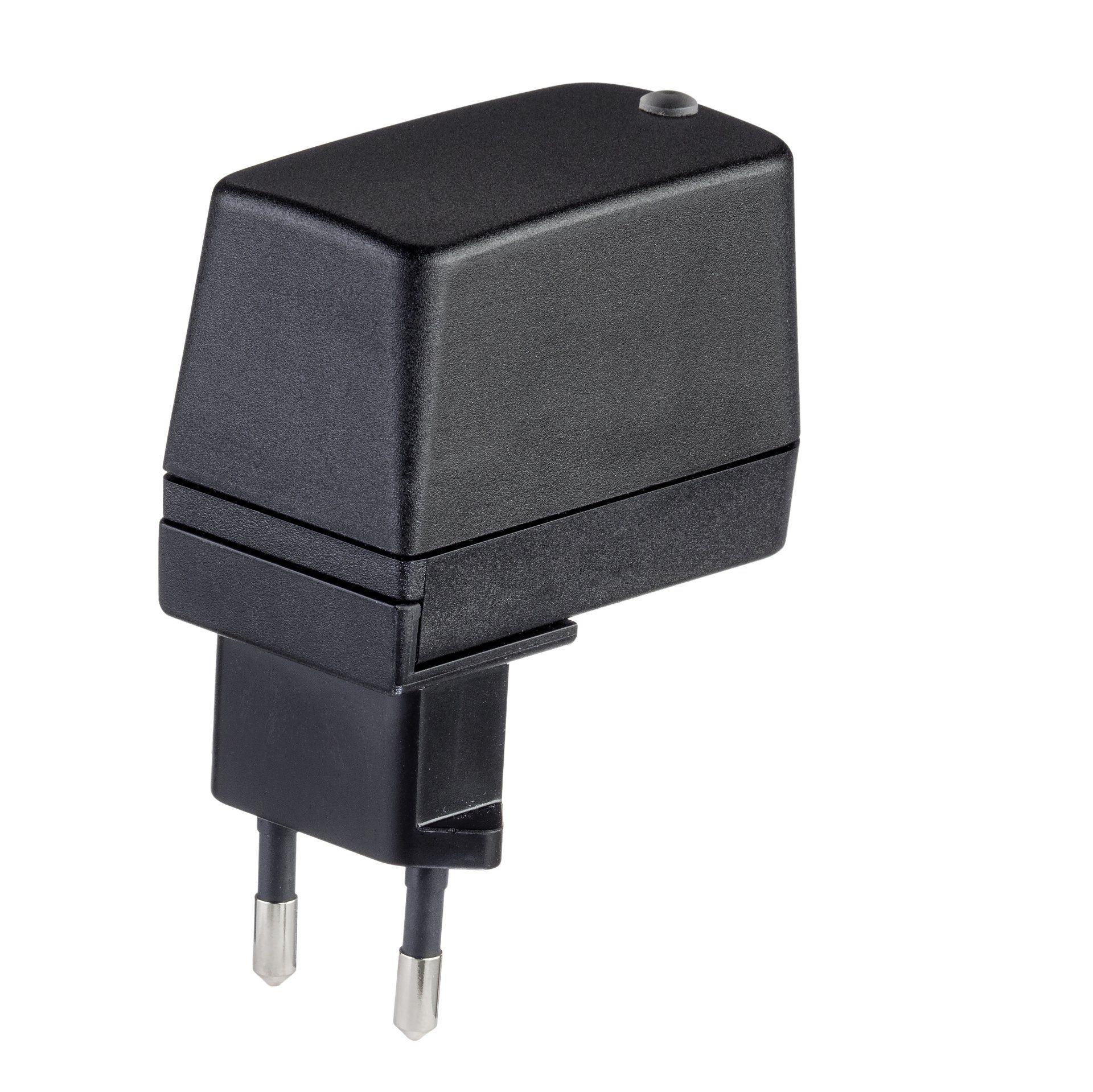

*PSU Shown with EU plug fitted

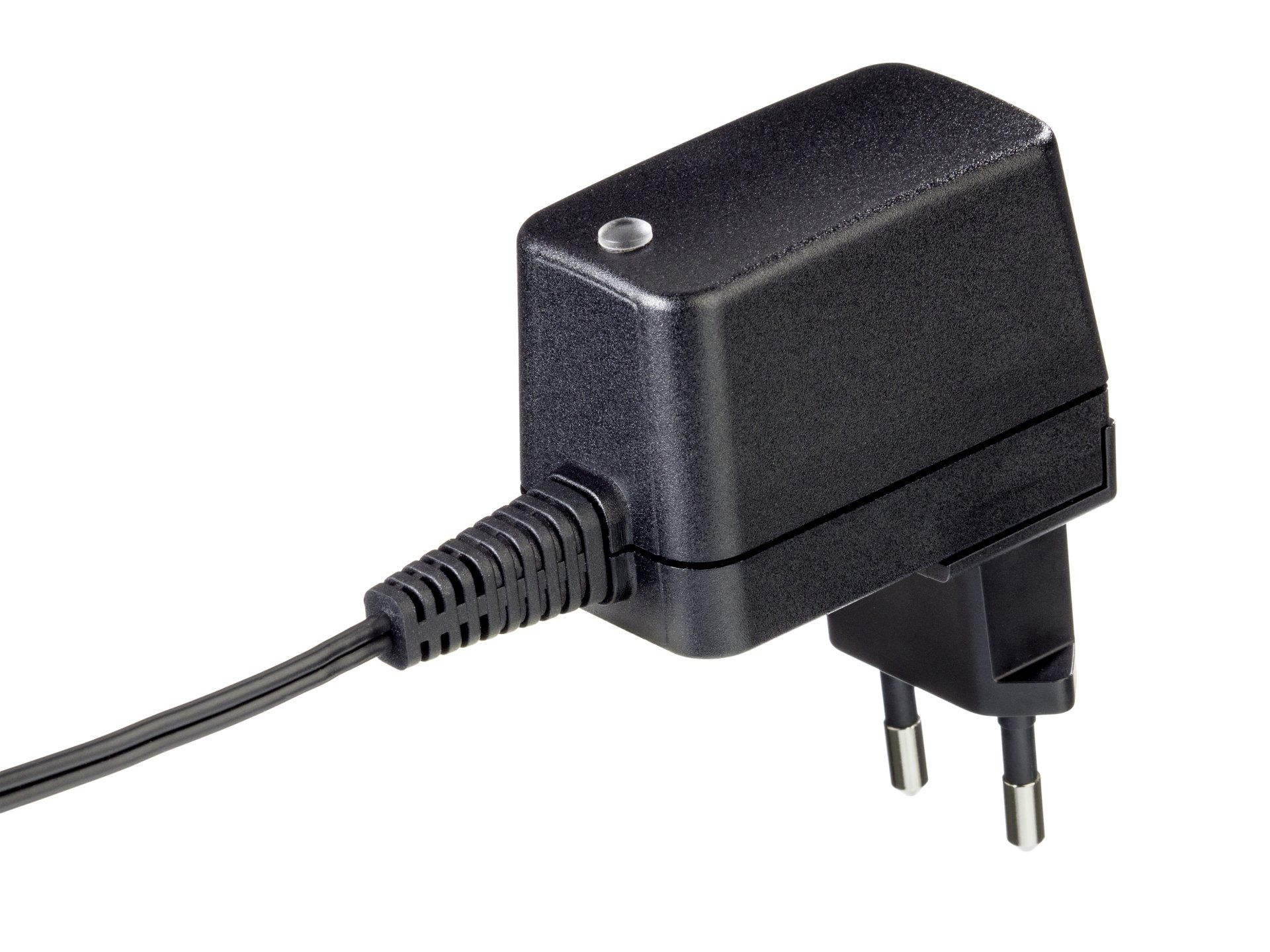

FOX6 MEDICAL PSU
FW-Type: FW8002.1M/XX
Medical Grade Interchangeable Power Supply

Input Voltage:   100 - 240V AC (±10%)


Output voltage:   Various (see table below)


Frequency:   50 - 60Hz


Leakage Current:   ≤ 10µA


Stand-by:   ≤ 0.1W


MTBF:   200,000 hours acc. Mil217F (based on calculations at 120Vac/60Hz & 230Vac/50Hz, ambient 25°C and 100% load)

(The MTBF are theoretically determined values, which does not guarantee the lifetime of the product or of the electrolytic capacitors)

Operating Temperature:   0 - 40°C


Storage Temperature:   -40 - 70°C


Operating Altitude:   3000m


Humidity:   10 - 95%


Standards:   IEC 62368-1, IEC 60335


Approvals:   EU, USA, AUS, JPN


Safety Class:   II


EMC:   EN 55022, EN 55024


Overload & Overvoltage protection


Continuously short circuit proof


DOE Level VI Efficiency

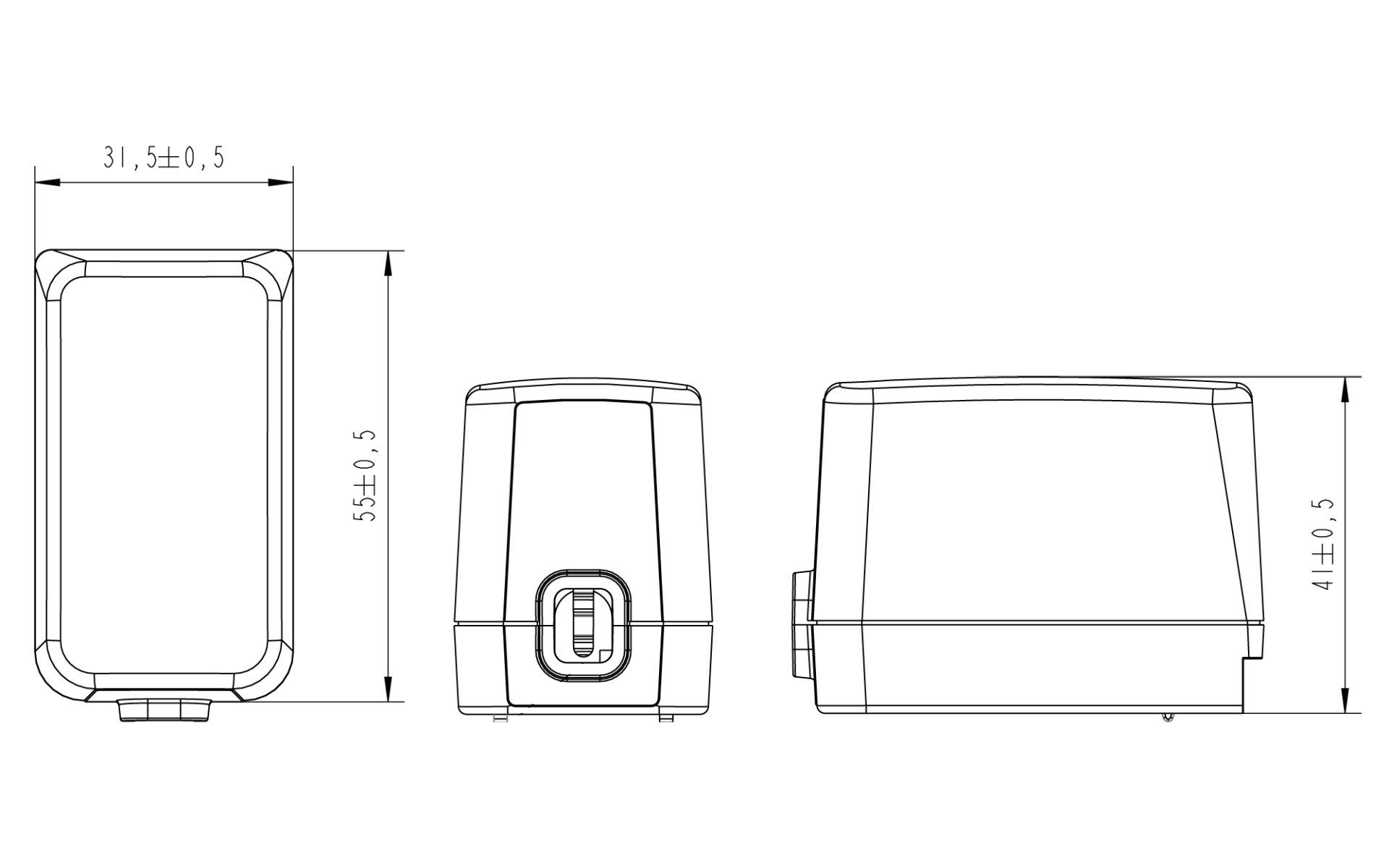

PSU Dimensions:   55 x 31.5 x 41mm


Weight:   108g


Casing:   Double Safety, Snapped & Welded


Plug Connector:   AC input / Interchangeable primary adapter system


DC output:   Secondary adapter system


View Accessories
AVAILABLE OUTPUTS
CLICK TILES BELOW TO DOWNLOAD RELEVANT DATASHEET
A blue 5v logo on a white background.

1400 mA

FW8002.1M/05

Part Number: 1960496

Basic Part No: 1899005

Button
A blue 6v logo on a white background.

1200 mA

FW8002.1M/06

Part Number: 1960497

Basic Part No: 1960044

Button
A blue 7.5v logo on a white background.

800 mA

FW8002.1M/08

Part Number: 1960498

Basic Part No: 1960045

Button
A blue 9v logo on a white background.
A blue 12v logo on a white background.
A blue 15v logo on a white background.
A blue 18v logo on a white background.
A blue 24v logo on a white background
The word 48v is on a white background.
A blue letter v with three dots on a white background.

CUSTOM OUTPUT


Available for OEM Projects

that meet the required MOQ

Button
Required Accessories
For the operation of this device you need a primary AC adapter and a DC secondary adapter.
AC plugs
DC plugs
IPX2 FOX PLUGS

NEW!

The optional IP42 plug adapter from FRIWO is an interchangeable adapter system that offers additional protection for use in damp environments.
This PSU is also available with...
INDUSTRIAL GRADE
USB OUTPUT
FIXED PLUG
NEED SOME HELP?
Just get in touch & speak to one of our experts.

We will gladly guide you through our range and find the perfect product to power your success!
NEED A QUOTE?

Fill Out This Form And We Will Get In Touch!

NEED MORE POWER?
Use our Quick & Handy product selector below!
Down Arrow
FOX 6 POWER SUPPLY

FOX6-XM

[SELECTED]

Button

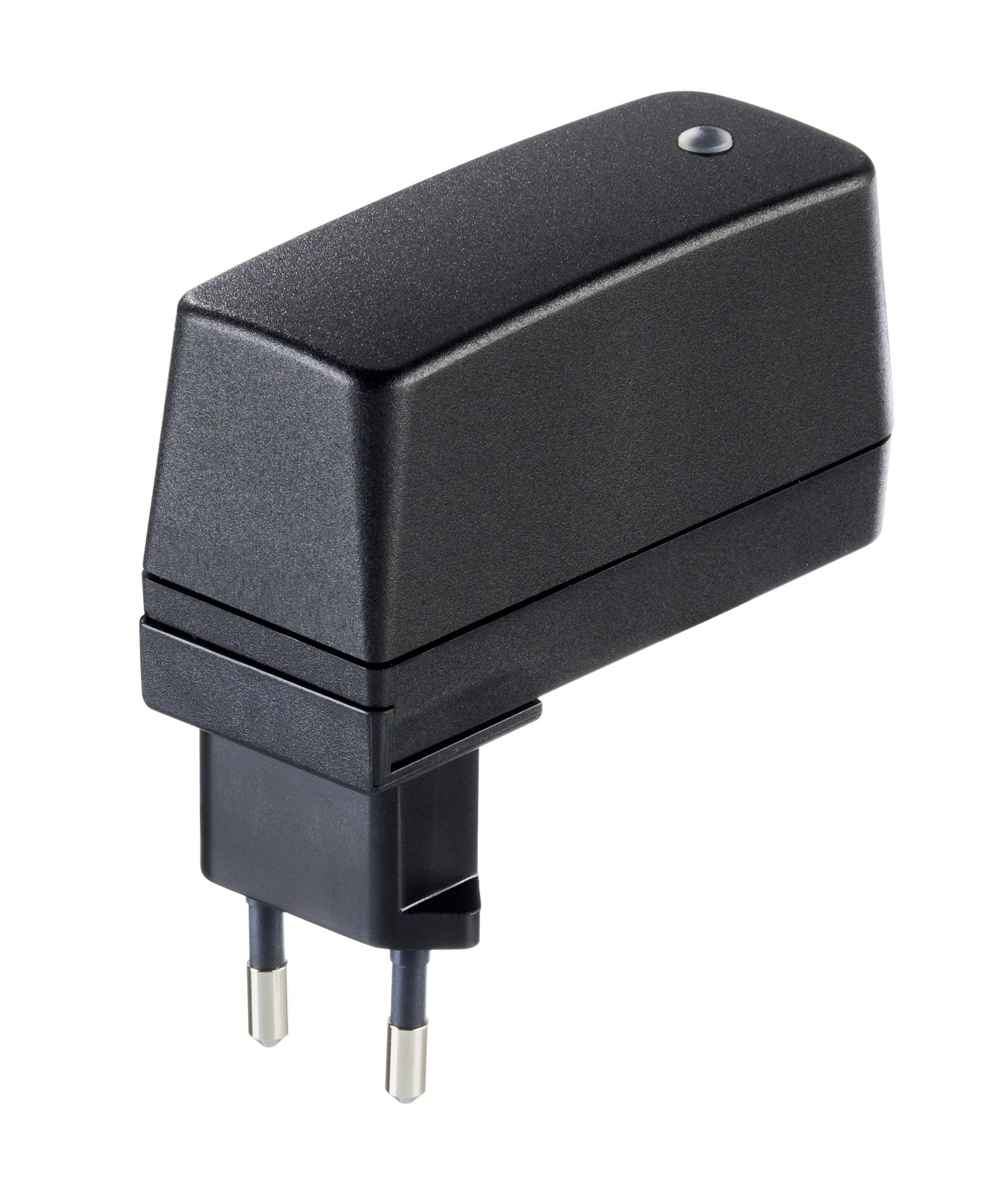

FOX 12 POWER SUPPLY

FOX12-XM

CLICK TO VIEW

Button

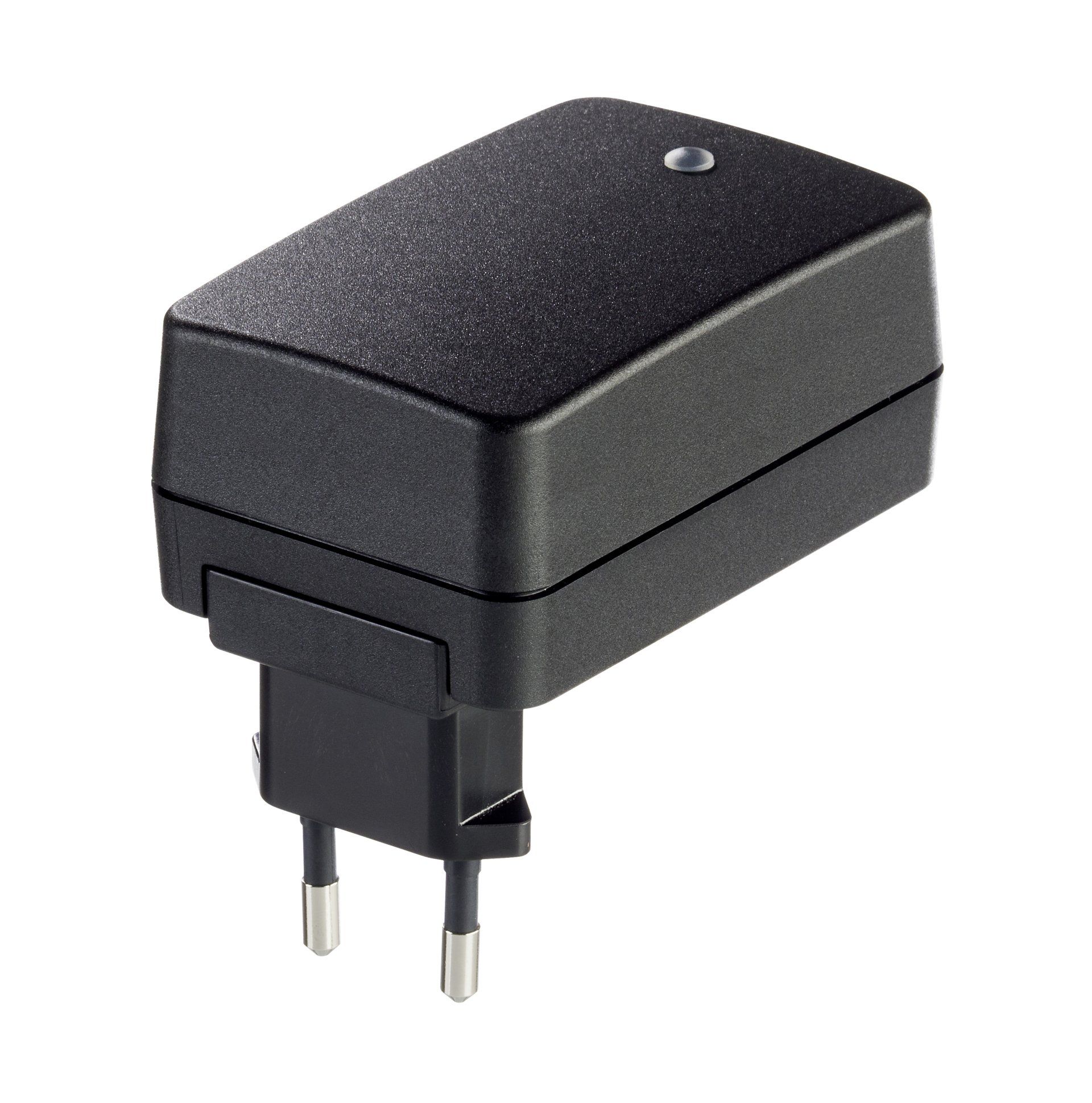

FOX 18 POWER SUPPLY

FOX18-XM

CLICK TO VIEW

Button

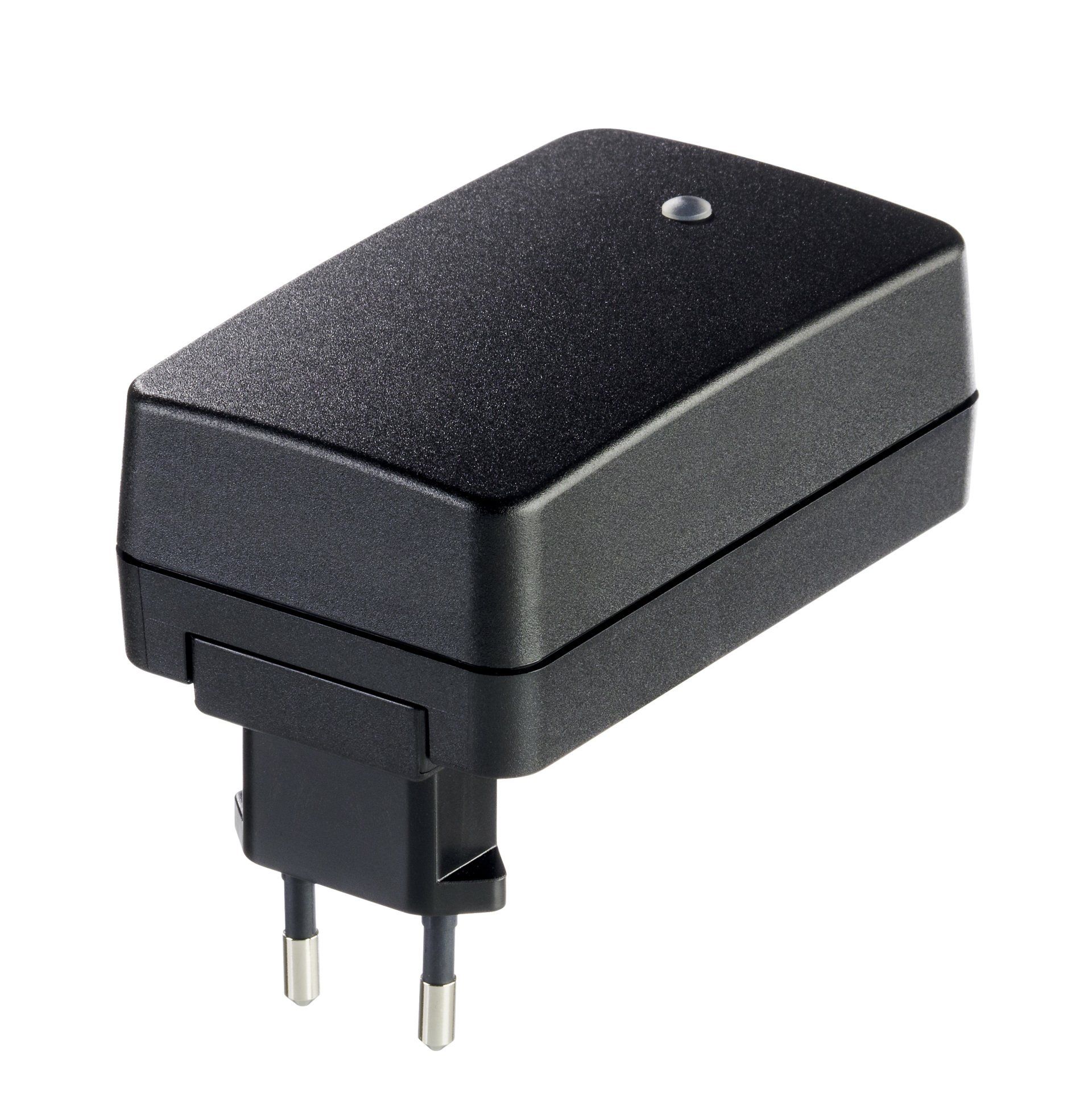

FOX 30 POWER SUPPLY
