FRIWO | UK

NEO030.0-I-X
FOX30-C
FW-Type: FW8103M
Medical Grade Interchangeable Li-Ion Charger

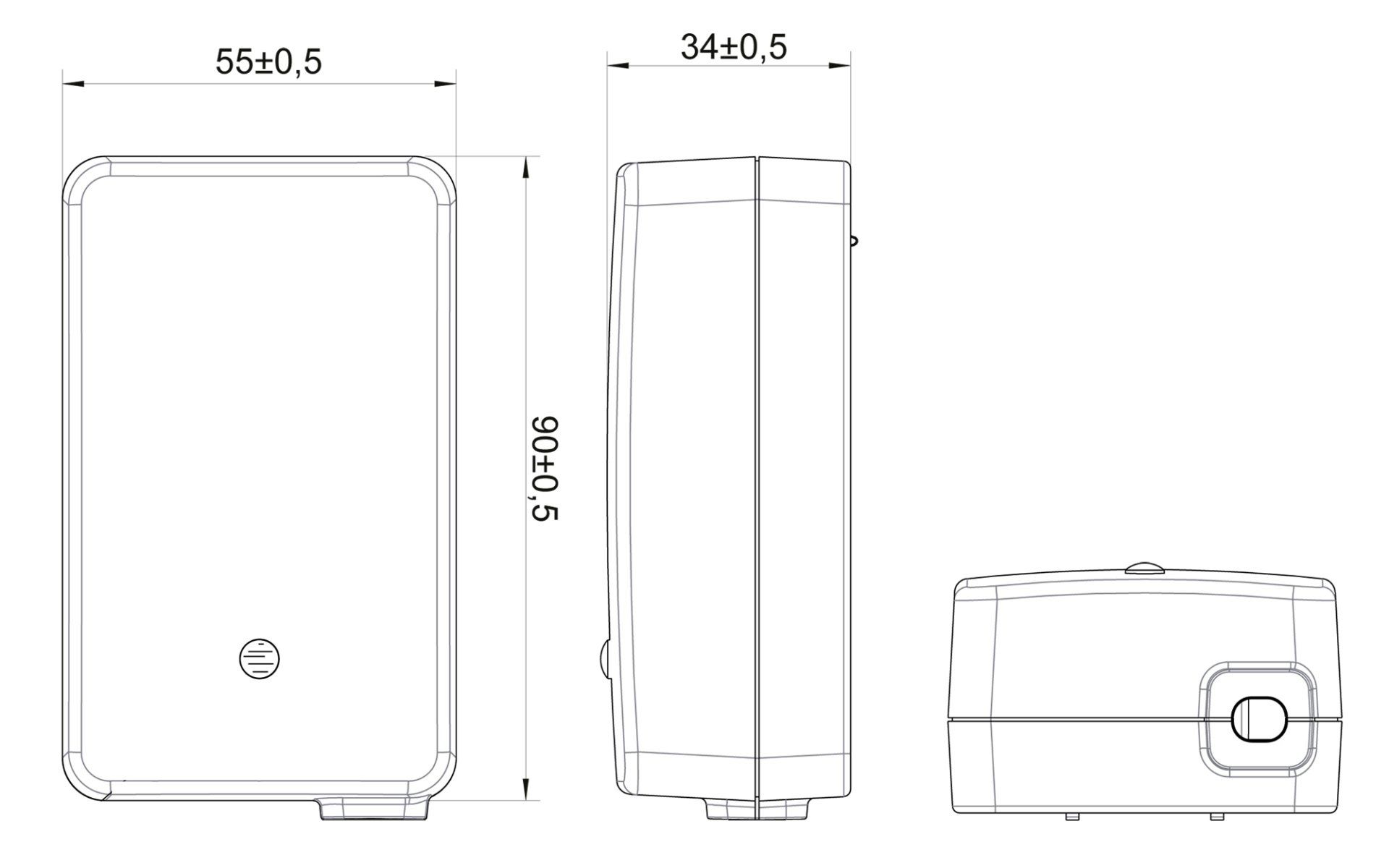

A black and white drawing of a power supply with measurements on a white background.

Input Voltage:   100 - 240V AC (±10%)


Output voltage:   Various (see table below)


Frequency:   50 - 60Hz


Leakage Current:   ≤ 100µA


Stand-by:   ≤ 0.1W


MTBF:   200,000 hours acc. Mil217F (based on calculations at 120Vac/60Hz & 230Vac/50Hz, ambient 25°C and 100% load)

(The MTBF are theoretically determined values, which does not guarantee the lifetime of the product or of the electrolytic capacitors)

Operating Temperature:   0 - 40°C


Storage Temperature:   -25 - 70°C


Operating Altitude:   3000m


Humidity:   10 - 90%


Standards:   IEC 60950-1, IEC 60065, IEC 60335


Approvals:   EU, USA, AUS, JPN


Safety Class:   II


EMC:   EN 55022, EN 55024


Overload & Overvoltage protection


Continuously short circuit proof


DOE Level VI Efficiency

PSU Dimensions:   90 x 55 x 34 mm


Weight:   254g


Casing:   Double Safety, Snapped & Welded


Plug Connector:   AC input / Interchangeable primary adapter system


DC output:   JST Plug


View Accessories

Condcted and Radiated Emmisions:   EN55032, EN55011, FCC15, Class B, EN60601-1-2, IEC60601-1-2 4th Edition, EN55014-1


Immunity:   EN55014-2, EN60601-1-2, IEC60601-1-2 4th Edition


Harmonics:   EN61000-3-2


Flicker noise:   EN61000-3-3


ESD (contact/ air):   EN61000-4-2


Immunity against radiated field:   EN61000-4-3


Immunity against conducted disturbances:    EN61000-4-4


Voltage dips:   EN61000-4-11

AVAILABLE OUTPUTS
CLICK TILES BELOW TO DOWNLOAD RELEVANT DATASHEET
Three batteries are stacked on top of each other on a white background.

12.6V 2000mA [PEAK]

FW8103M/03/4.2/2.0

Part Number: 1960274

Button
A line drawing of four batteries stacked on top of each other on a white background.

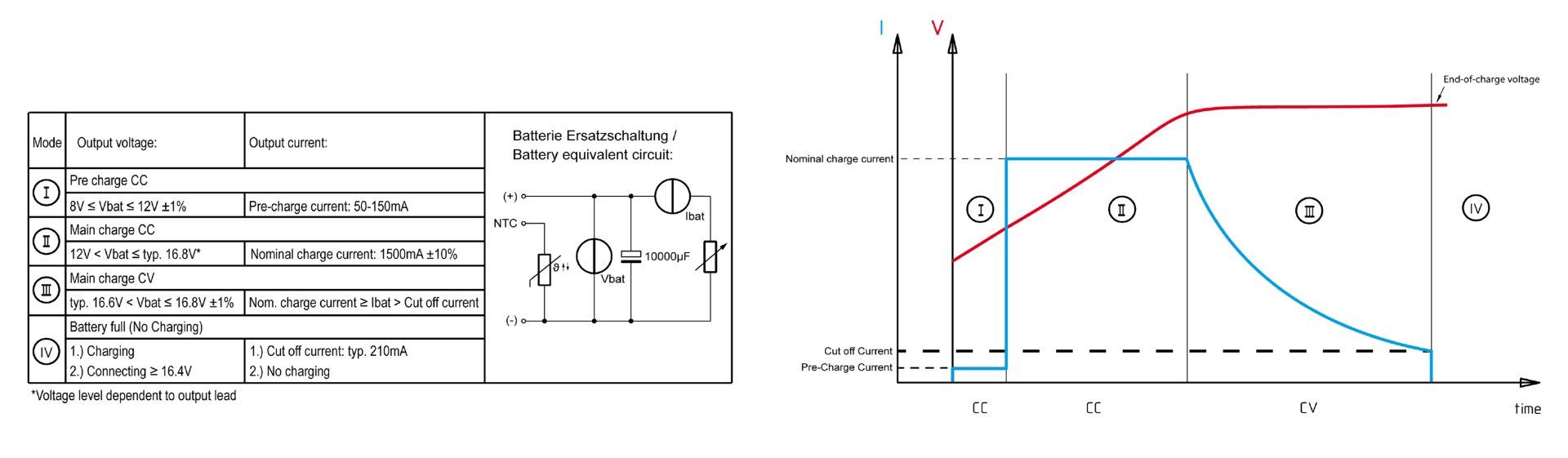

Output characteristic diagram

Typical behaviour at ambient temperature 25°C after 2min of operation in each mode
Charger Output characteristic CCCCCV

Chemistry : Li-Ion / Li-Ion Polymer
Range of application : Household, Medical
End-of-charge voltage: 4.2V / Cell
Capacity range : typ. 2-20Ah
Recommended NTC-sensor: R = 10kR ±5% / B = 3988K

A drawing of a graph with a red line and a blue line showing a charge curve
Required Accessories

For the operation of this device you need a primary AC adapter
This can be found here: AC ADAPTERS

IPX2 FOX PLUGS

NEW!

The optional IP42 plug adapter from FRIWO is an interchangeable adapter system that offers additional protection for use in damp environments.
