FOX50-C
FW-Type: FW8101M
Medical Grade Interchangeable Li-Ion Charger

Input Voltage:   100 - 240V AC (±10%)


Output voltage:   Various (see table below)


Frequency:   50 - 60Hz


Leakage Current:   ≤ 100µA


Stand-by:   ≤ 0.1W


MTBF:   200,000 hours acc. Mil217F (based on calculations at 120Vac/60Hz & 230Vac/50Hz, ambient 25°C and 100% load)

(The MTBF are theoretically determined values, which does not guarantee the lifetime of the product or of the electrolytic capacitors)

Operating Temperature:   0 - 40°C


Storage Temperature:   -25 - 70°C


Operating Altitude:   3000m


Humidity:   10 - 90%


Standards:   IEC 60950-1, IEC 60065, IEC 60335


Approvals:   EU, USA, AUS, JPN


Safety Class:   II


EMC:   EN 55022, EN 55024


Overload & Overvoltage protection


Continuously short circuit proof


DOE Level VI Efficiency

Charger Dimensions:   179 x 86 x 50.5 mm


Weight:   507g


Casing:   Double Safety, Snapped & Welded


AC Input:   2 pole socket, IEC60320-C8


DC output:   3 pole, JST Plug


Condcted and Radiated Emmisions:   EN55032, EN55011, FCC15, Class B, EN60601-1-2, IEC60601-1-2 4th Edition, EN55014-1


Immunity:   EN55014-2, EN60601-1-2, IEC60601-1-2 4th Edition


Harmonics:   EN61000-3-2


Flicker noise:   EN61000-3-3


ESD (contact/ air):   EN61000-4-2


Immunity against radiated field:   EN61000-4-3


Immunity against conducted disturbances:    EN61000-4-4


Voltage dips:   EN61000-4-11

AVAILABLE OUTPUTS
CLICK TILES BELOW TO DOWNLOAD RELEVANT DATASHEET

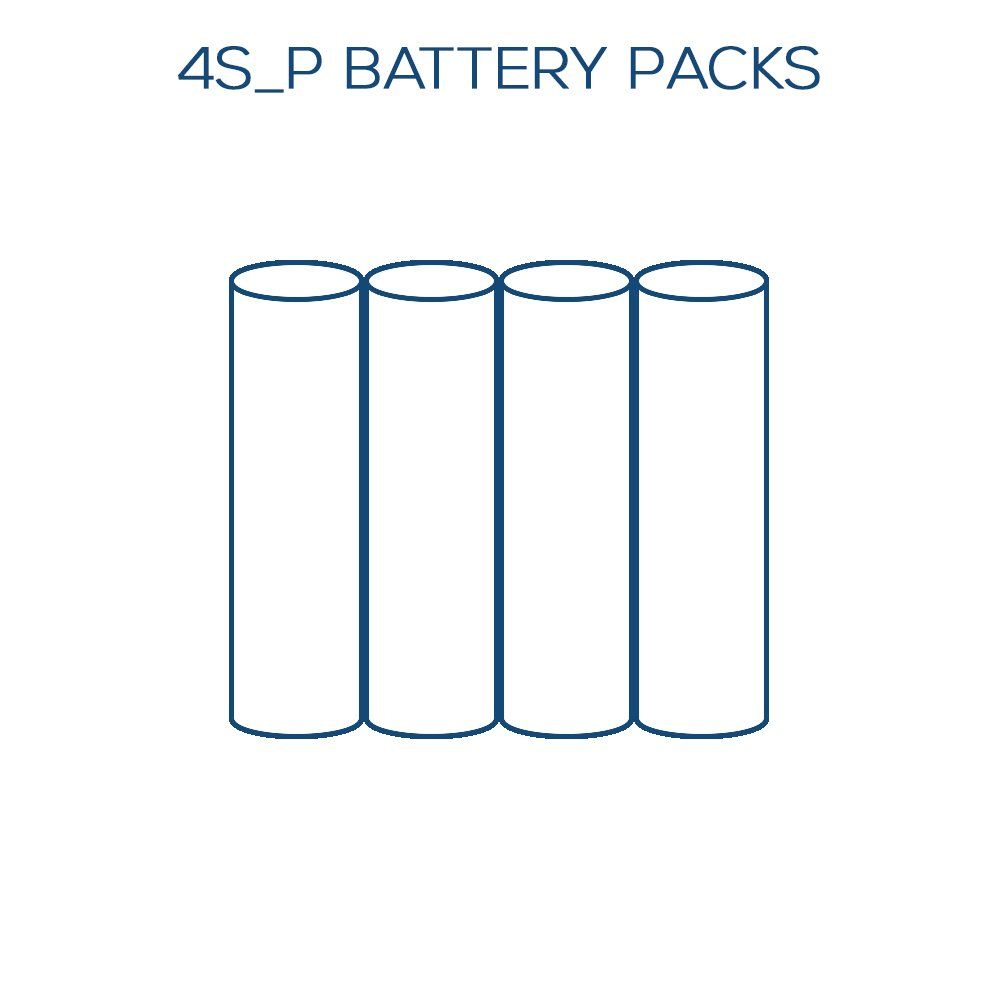

4 batteries

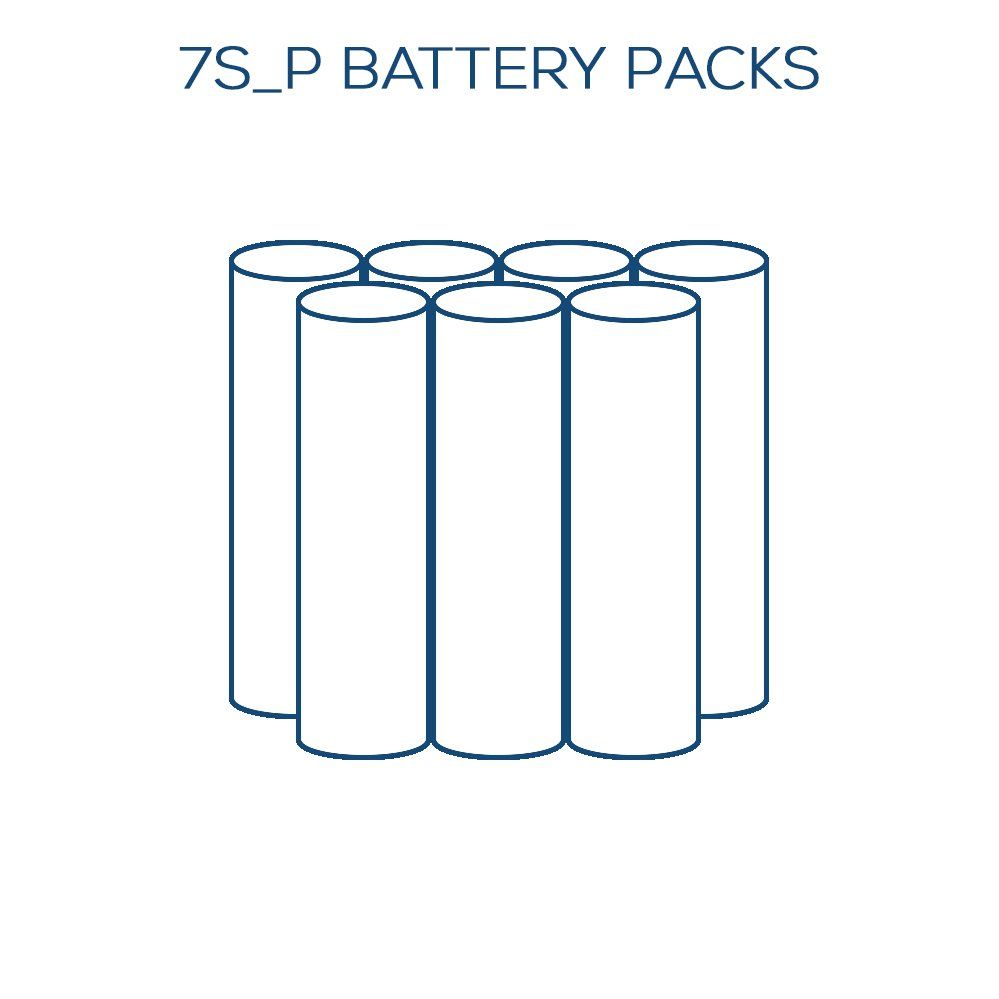

7 batteries

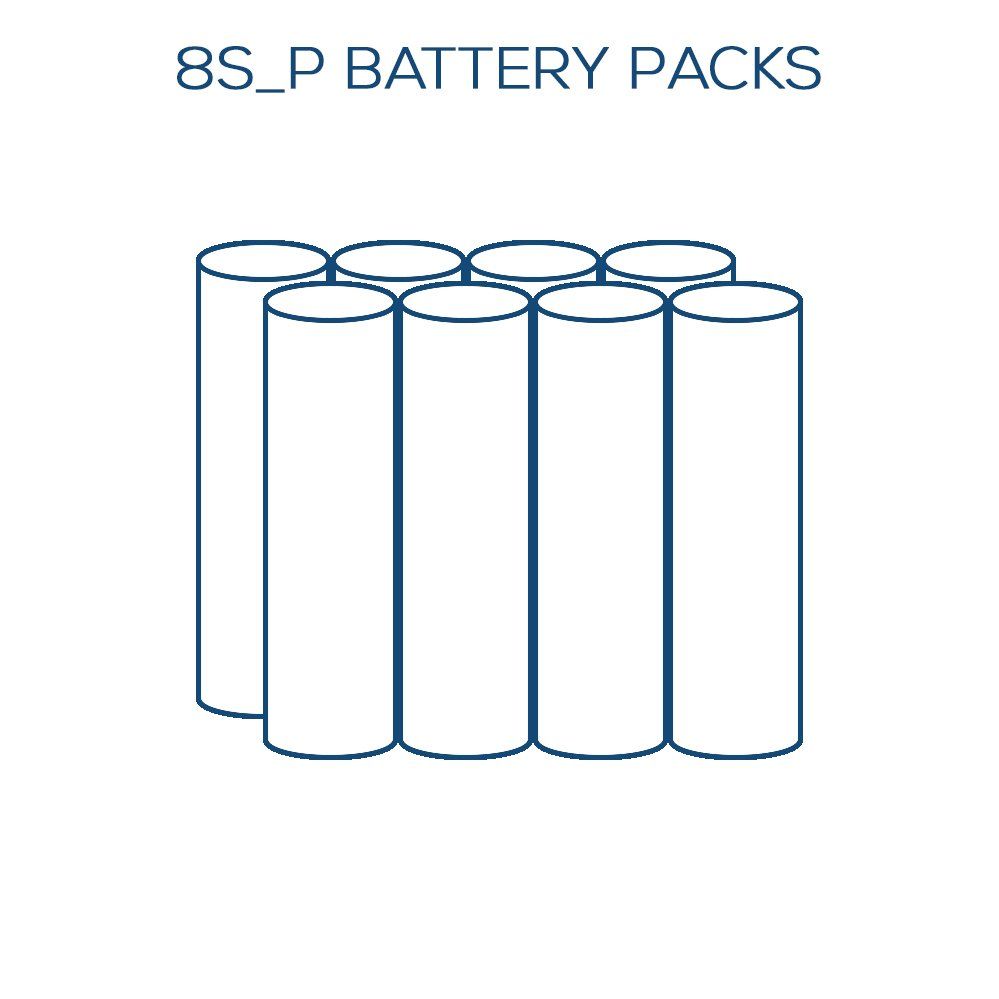

8 batteries
Required Accessories

For the operation of this device you need a primary AC cord

This can be found HERE

BATTERY PACKS SUITABLE FOR THIS CHARGER...
