FRIWO | UK

HERC250 CA

FW-Type: FW8250M/CA/HERC

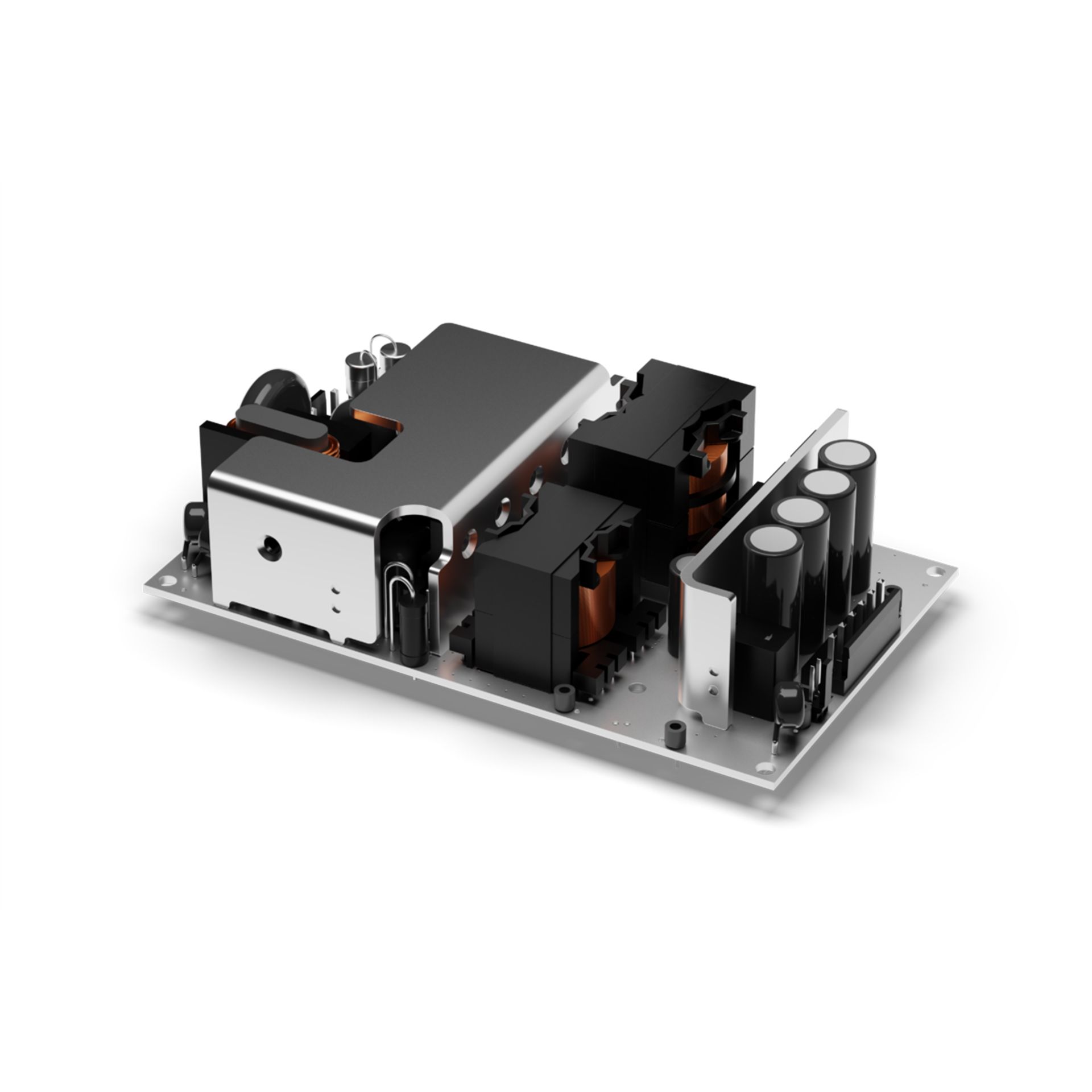

250 Watt Industrial & Medical Grade Open Frame Power Supply

A black and white cross icon on a white background.

Medical Grade

A black and white icon of an open frame power supply on a white background.

Open Frame Design

A medical open frame power supply on a white background.
Tick

Efficiency Level VI

Tick

Overload Protection

Tick

Overvoltage Protection

Tick

Short Circuit Proof

Dimensions

A black and white drawing of an open frame power supply with measurements.

Technical Data

Input voltage 100 – 240 V ± 10 %
Frequency 50 – 60 Hz
Input current 3000 – 1300 mA
Earth Leakage Current ≤ 100 μA
Touch Current ≤ 100 μA
Output Voltage Tolerance +/- 5 %
Stand-by ≤ 0.15 W
MTBF 200.000 h*

* Mil217F based on calculations at 120 VAC / 60 Hz & 230 VAC / 50 Hz,

Ambient temperature 25°C, 100% load

Also Available As Open Frame!

Available Voltages: 12V - 24V - 48V

Take Me There!

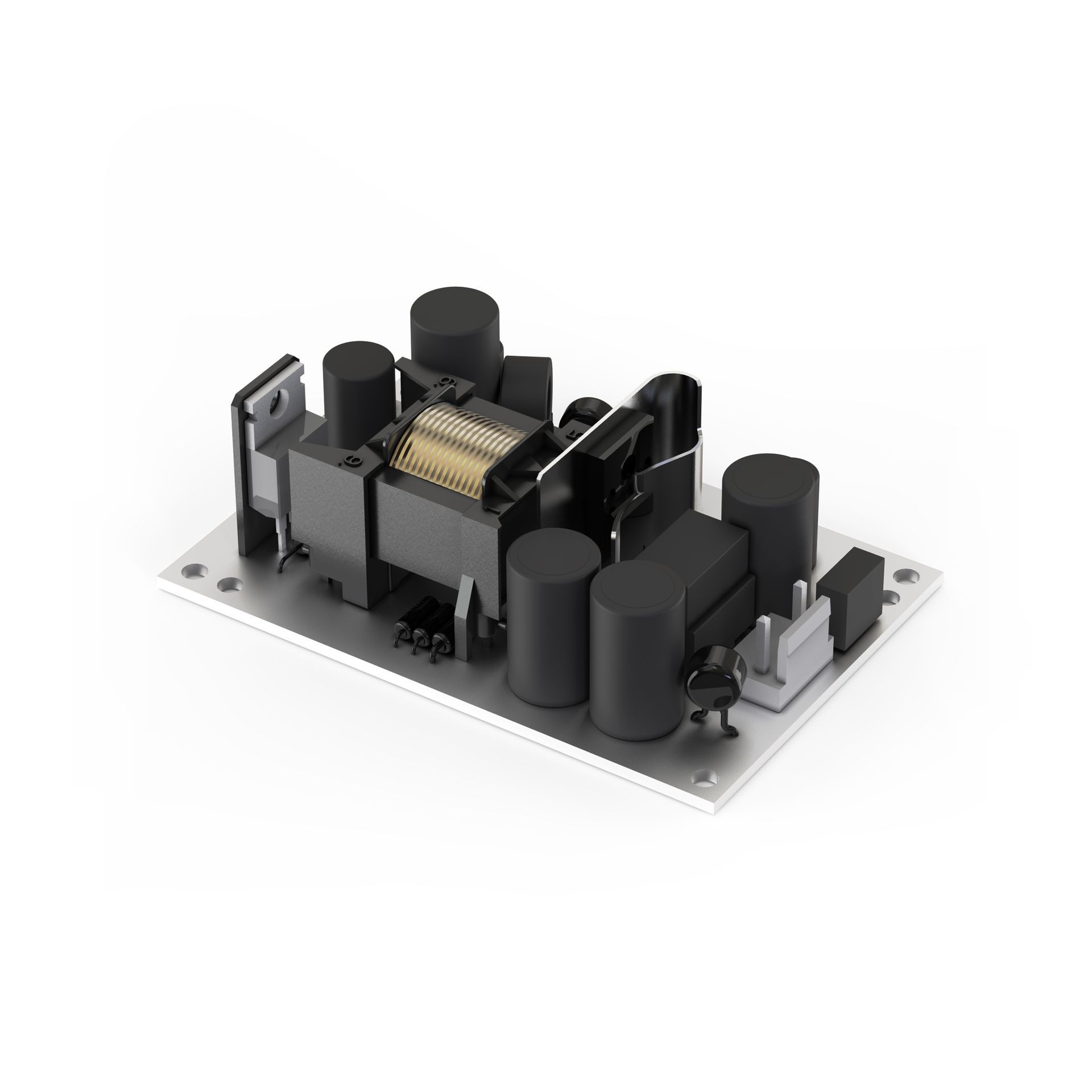

6W Friwo Power Supply

Available Outputs

To access the respective datasheet, just click on the appropriate download button below.

12V 16,667mA*

12V 20,833mA**

FW8250M/CA/12/HERC

Part Number: 1962018

24V 9,375mA*

24V 10,420mA**

FW8250M/CA/24/HERC

Part Number: 1962019

48V 5,210mA*

FW8250M/CA/48/HERC

Part Number: 1962020

...V ...mA

Need a Custom Solution?

Just get in touch and see how we can help you!

*Output when Convection Cooled: 225W/250W

**Output when Forced Cooled: 250W

Environmental specifications

Operating temperature -25 – 70° C
Humidity 95 % Max.
Storage temperature -40 – 85° C
Operating altitude 5000 m

Safety specifications

Safety Standard IEC60601-1, ES60601-1, IEC62368-1
Approvals UK, EU
EMC EN 61000-4-5, EN 61000-4-4, EN 61000-4-2
Medical Protection 2 x MOPP

Labels / Certifications

TBA

Further approvals possible after consultation.
