FRIWO | UK

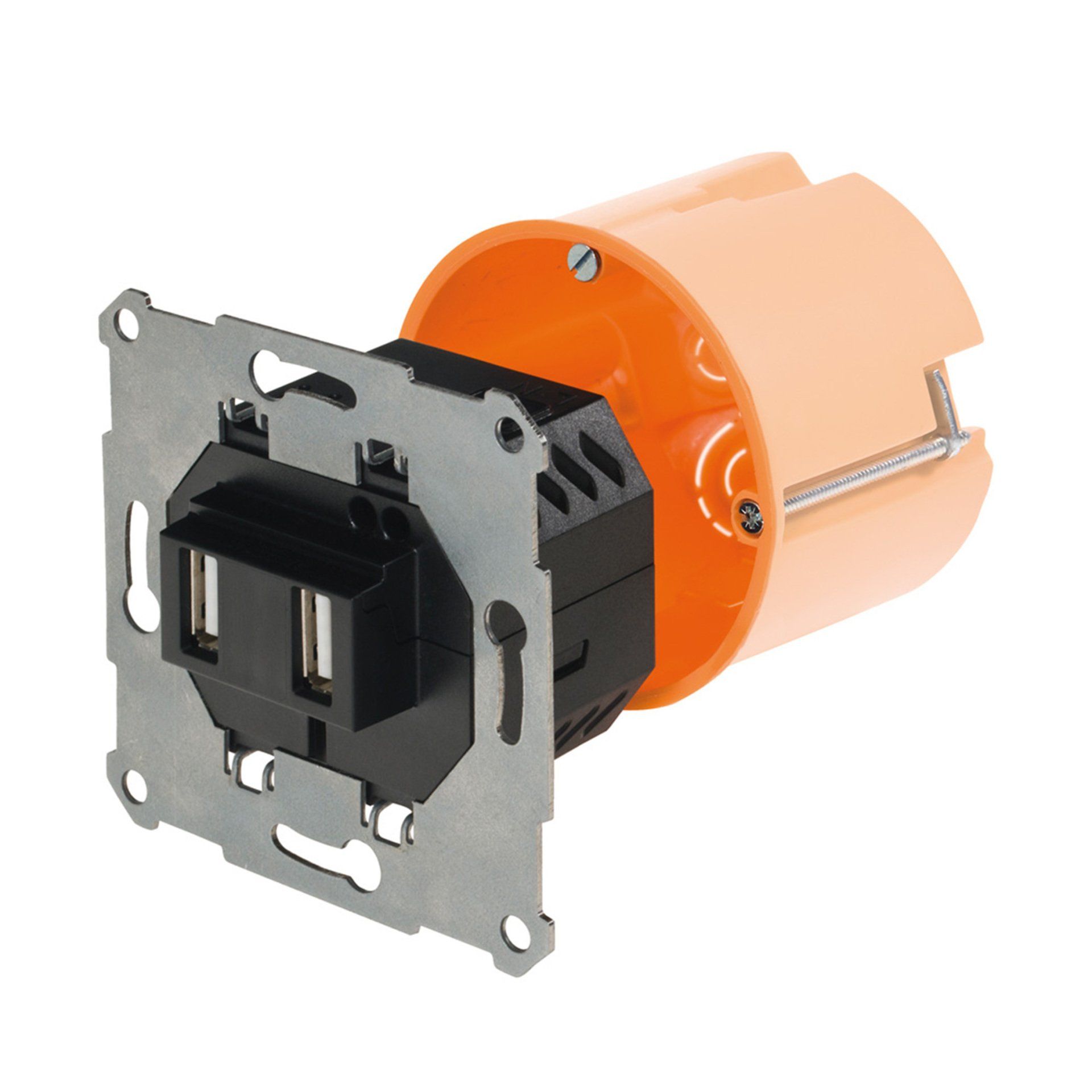

UP USB IN WALL PSU
FW-Type: FW7810/XX
Industrial Grade USB Power Supply
  • Fits into all standard in-wall junction boxes
  • Dual connection access via two USB ports
  • Broad range of applications chargeable
  • Independent from notebooks and PCs
  • No more external chargers required
  • Environmentally friendly and energy saving due to high efficiency and low standby-power
  • Easy handling and operation, fulfilling highest safety standards

Input Voltage:   100 - 240V AC (±10%)


Output voltage:   Various (see table below)


Frequency:   50 - 60Hz


Leakage Current:   ≤ 10µA


Stand-by:   ≤ 0.1W


MTBF:   200,000 hours acc. Mil217F (based on calculations at 120Vac/60Hz & 230Vac/50Hz, ambient 25°C and 100% load)

(The MTBF are theoretically determined values, which does not guarantee the lifetime of the product or of the electrolytic capacitors)

Operating Temperature:   0 - 40°C


Storage Temperature:   -40 - 70°C


Operating Altitude:   3000m


Humidity:   10 - 95%


Standards:  EN60950-1, EN62368-1


Protection Class:   II


Approvals:   EU, USA, AUS, JPN


EMC:   EN 55022, EN 55024


Overload & Overvoltage protection


Continuously short circuit proof


DOE Level VI Efficiency

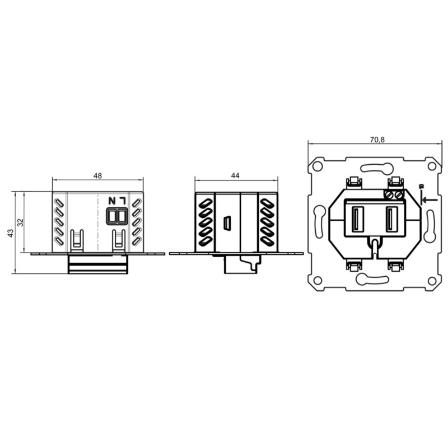

PSU Dimensions:   Various (see datasheet)


Weight:   Various (see datasheet)


AC input:   Screw terminal 2 x 2.5 mm²


DC output:   USB type A female


View Accessories
AVAILABLE OUTPUTS
GET IN TOUCH FOR FURTHER INFORMATION AND DATASHEETS
Smart IC* Output Voltage V Current mA Support Ring FW Number Part Number
NO 5 2100 YES FW7810 1897516
NO 5 2100 NO FW7810 1899027
YES 5 3000 YES FW7810/TAE3AS 1899549
YES 5 3000 NO FW7810 1899778
*The Smart IC Variant enables intelligent device recognition for faster charging
COMING SOON!

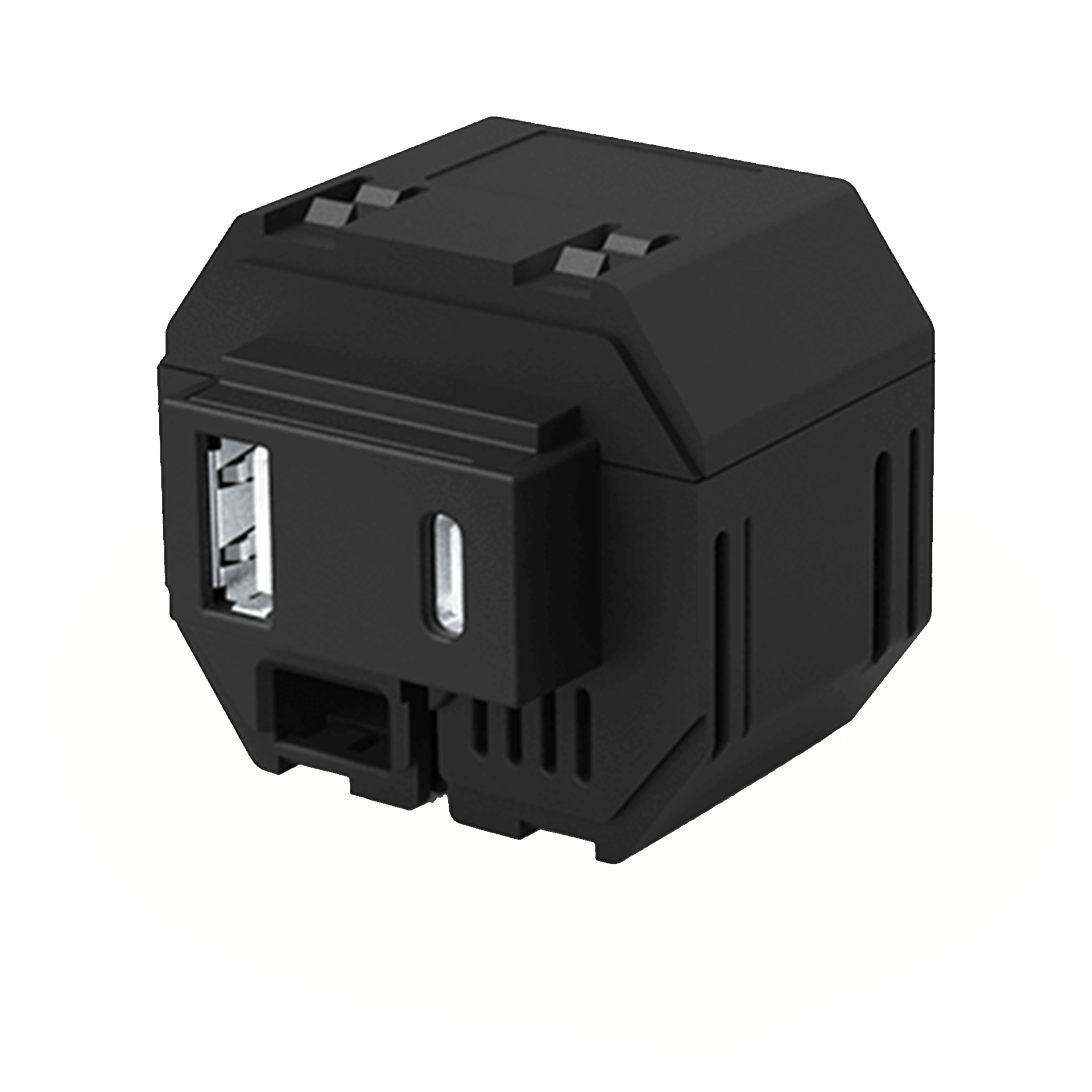

UP USB WITH TYPE-C
NEED SOME HELP?
Just get in touch & speak to one of our experts.

We will gladly guide you through our range and find the perfect product to power your success!
NEED A QUOTE?
Have you found the product for you? Then Great!

Just let us know the Part Number or FW Number, your required connector and we will do the rest!
