FRIWO | UK

UP18 IN WALL PSU
FW-Type: FW7803/XX
Industrial Grade Waterproof Power Supply
Fits into all standard in-wall junction boxes, easy and invisible mounting, safe against vandalism, many applications: Sanitary installations, security equipment, lighting, etc.

Compact design Cost reductions by long lifetime and high efficiency

Input Voltage:   100 - 240V AC (±10%)


Output voltage:   Various (see table below)


Frequency:   50 - 60Hz


Leakage Current:   ≤ 10µA


Stand-by:   ≤ 0.1W


MTBF:   200,000 hours acc. Mil217F (based on calculations at 120Vac/60Hz & 230Vac/50Hz, ambient 25°C and 100% load)

(The MTBF are theoretically determined values, which does not guarantee the lifetime of the product or of the electrolytic capacitors)

Operating Temperature:   0 - 40°C


Storage Temperature:   -40 - 70°C


Operating Altitude:   3000m


Humidity:   10 - 95%


Standards:  EN60950-1 / EN60335-1 / EN61558-1 / UL1310


Approvals:   EU, USA, AUS, JPN


Safety Class:   II


EMC:   EN 55022, EN 55024


Overload & Overvoltage protection


Continuously short circuit proof


DOE Level VI Efficiency

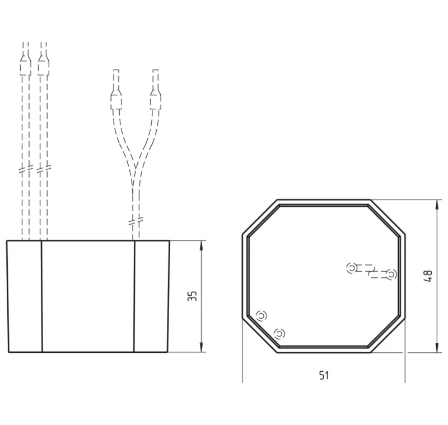

PSU Dimensions:   51 x 48 x 35mm


Weight:   144g


Casing:   Potted


AC input:   150 mm cable


DC output:   150 mm cable


IP Rating:   67


View Accessories
AVAILABLE OUTPUTS*
GET IN TOUCH FOR FURTHER INFORMATION AND DATASHEETS
A blue 12v logo on a white background.
A blue 24v logo on a white background
A blue letter v with three dots on a white background.

CUSTOM OUTPUT

Available for OEM Projects

that meet the required MOQ

Button
*OTHER VOLTAGE AND CURRENT VARIANTS AVAILABLE
