A white background with the Haredata electronic logo

FRIWO | UK

DT12-M

FW-Type: FW8004M/DT

12 Watt Medical Grade Desktop Power Supply

A black and white cross icon on a white background.

Medical Grade

A black and white icon of a desktop power supplyon a white background.

Desktop Model

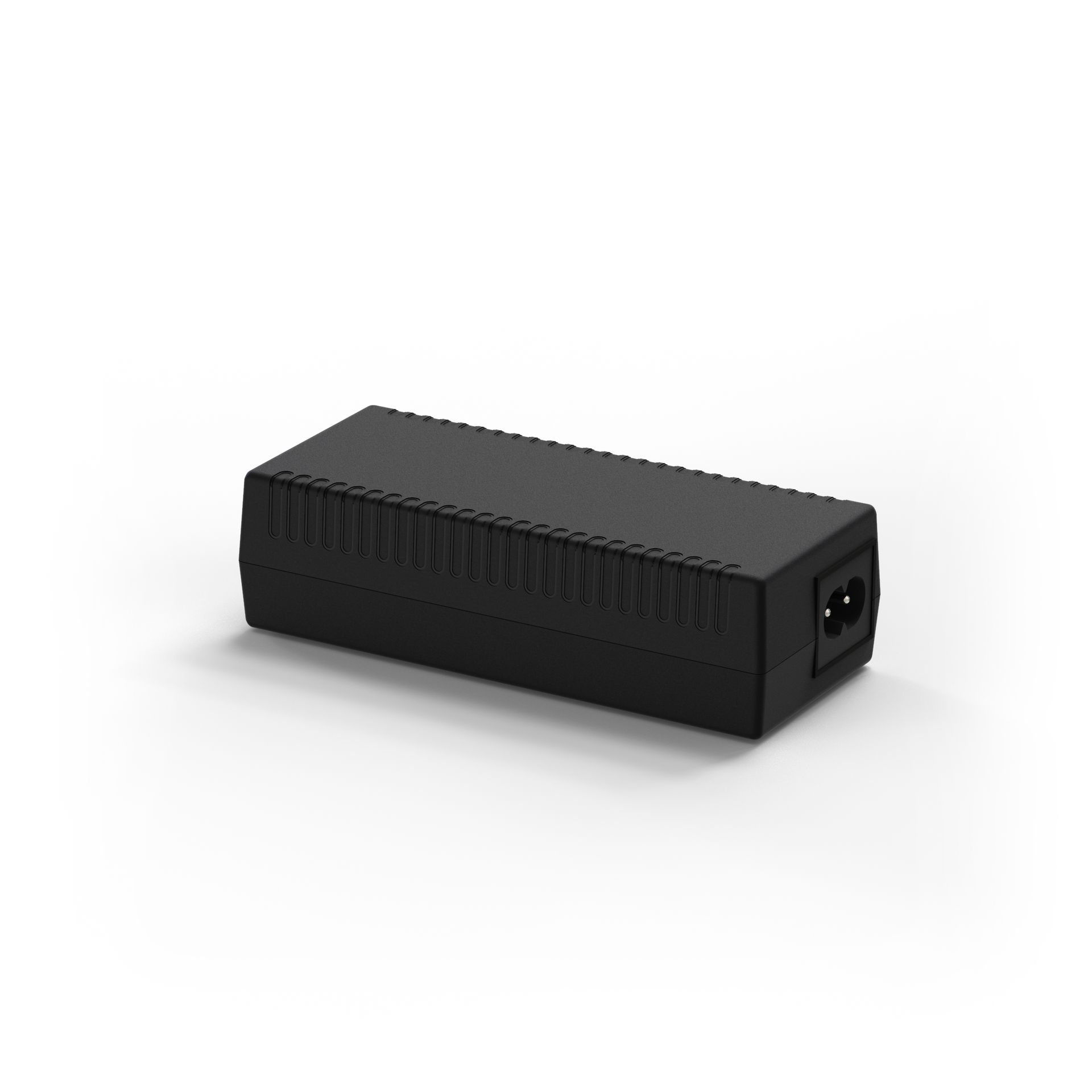

A black desktop power supply is sitting on a white surface.
Tick

Efficiency Level VI

Tick

Overload Protection

Tick

Overvoltage Protection

Tick

Short Circuit Proof

Dimensions

A black and white drawing of a desktop power supply with measurements on a white background.

Technical Data

Input voltage 100 – 240 V ± 10 %
Frequency 50 – 60 Hz
Input current 250 – 130 mA
Leakage current ≤ 10 μA
Output voltage tolerance ± 5 %
Stand-by ≤ 0.1 W
Efficiency DoE: Energy Efficiency level VI
MTBF 200.000 h*

* Mil217F based on calculations at 120 VAC / 60 Hz & 230 VAC / 50 Hz,

Ambient temperature 25°C, 100% load

Available Outputs

To access the respective datasheet, just click on the appropriate download button below.

5V 2000mA

FW8004M/DT/05

Part Number: 1960134

12V 1000mA

FW8004M/DT/12

Part Number: 1960077

24V 500mA

FW8004M/DT/24

Part Number: 1960227

...V ...mA

Need a Custom Solution?

Just get in touch and see how we can help you!

Industrial Grade

Don't Need Medical Approval?

This power supply is available for non-medical use.

Environmental specifications

Operating temperature 0 – 40° C
Humidity 10 – 95 %
Storage temperature -40 – 70° C
Operating altitude 2000 m

Safety specifications

Safety Standard IEC 60601-1
Approvals UK, EU, USA
Safety Class II
EMC EN 60601-1-2:2015
Medical Protection 2 x MOPP

Labels / Certifications

A black and white logo for uk ca on a white background.
A black and white ce logo on a white background.
A black and white logo for a company called siq on a white background.
The RU logo is a black and white logo on a white background.

Further approvals possible after consultation.


Want to know more about Safety Agencies & Markings?

VIEW BLOG

REQUIRED ACCESSORIES

Tick

AC Power Cords

You will require a AC cable that is compatible with the IEC320 C8 socket.


AC Power Cords

DC Output Leads

Check out our range of 'Snap-In' DC connectors that fit onto this unit.


'Snap-In' DC Connectors
