DC Barrel Plug

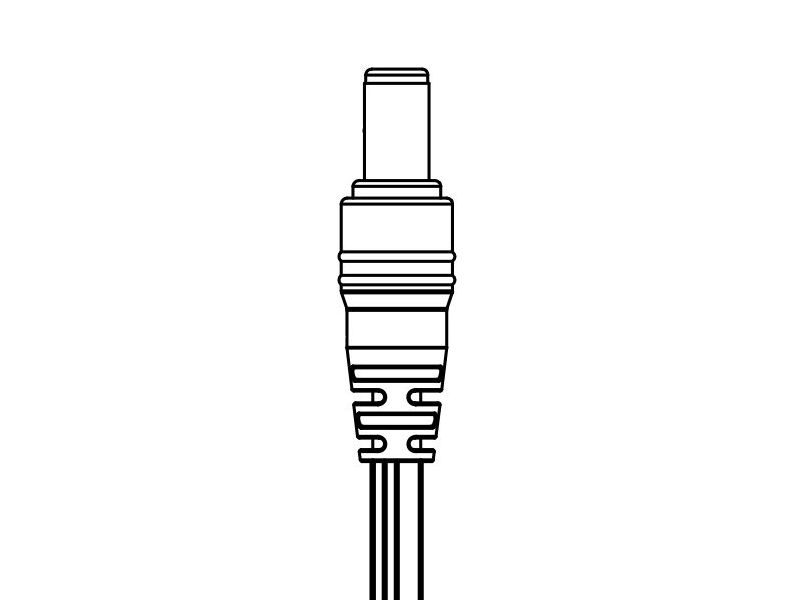

Straight Connector

Pros:

• Standard design
• Widely available
• Easy to install & use
• Low cost
• Large selection of sizes & lengths

Cons:

• Prone to accidental disconnection
• Space limitations

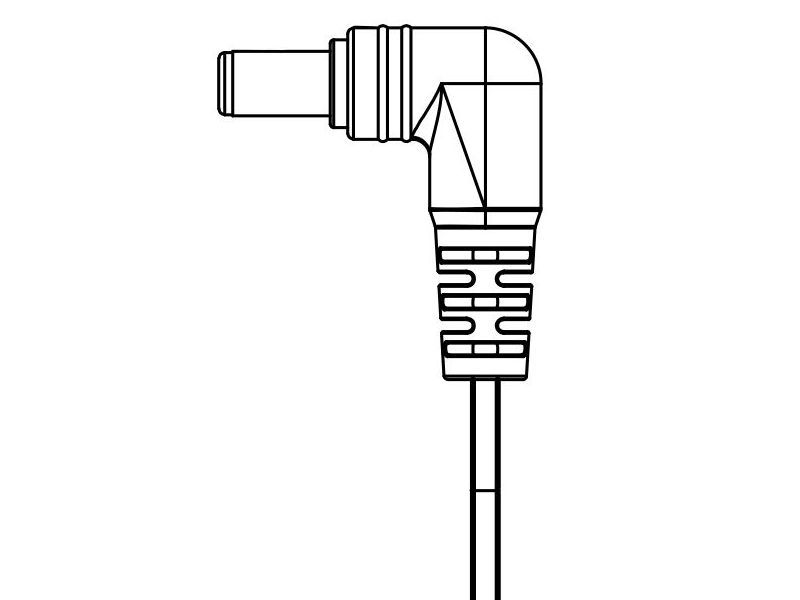

Right Angle Connector

Pros:

• Similar pros to straight connector
• Space-saving design
• Suitable for tight spaces

Cons:

• Similar cons to straight connector
• Limited flexibility in cable routing

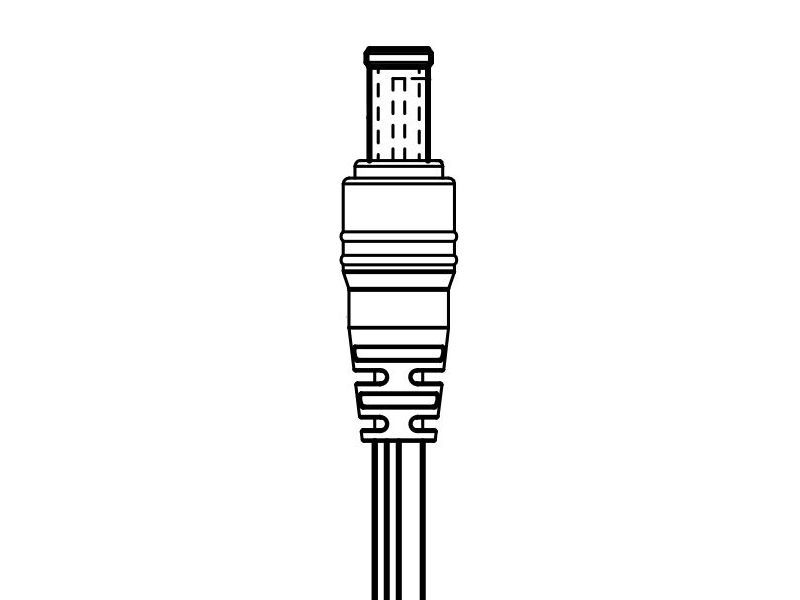

DC Barrel Plug with Inner Pin

Straight Connector

Pros:

• Secure connection
• Less prone to accidental disconnection
• Improved Electrical Contact


Cons:

• Requires careful handling during insertion
• Reduced Compatibility

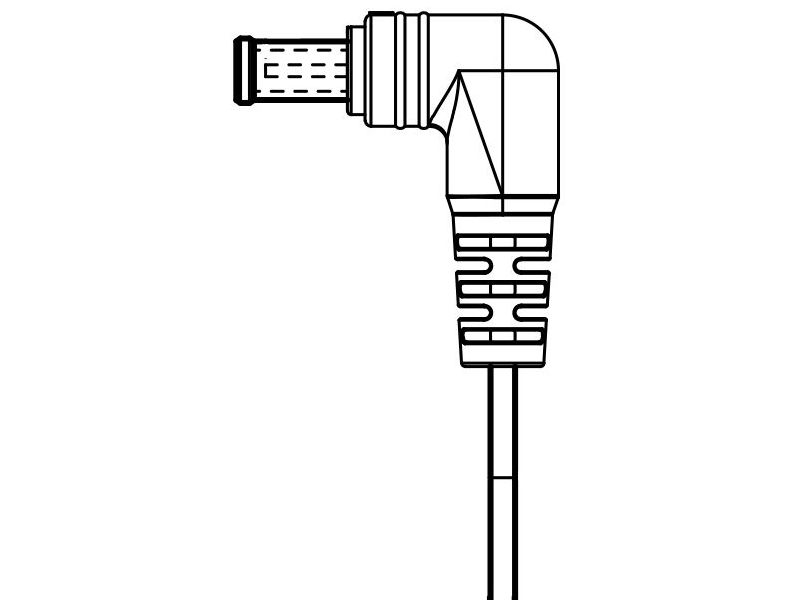

Right Angle Connector

Pros:

• Similar pros to straight connector
• Space-saving design
• Suitable for tight spaces

Cons:

• Similar cons to straight connector
• Limited flexibility in cable routing

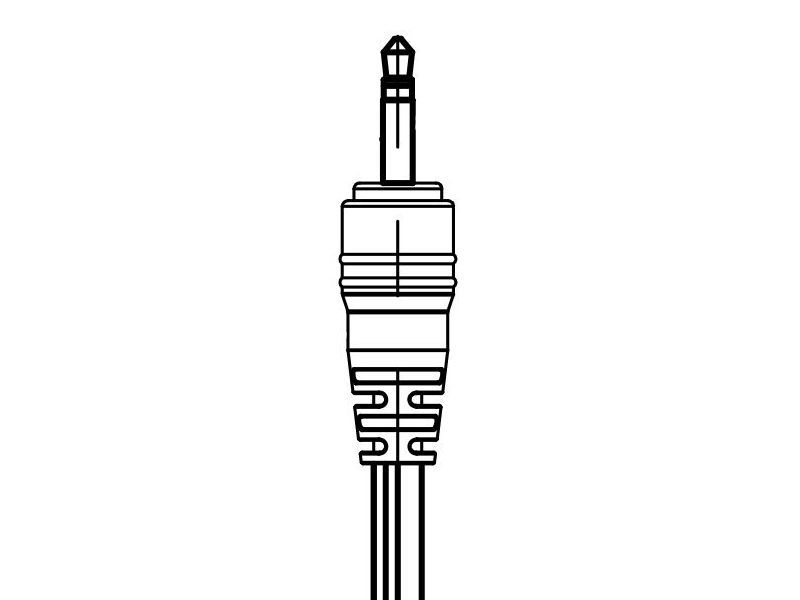

DC Stereo Jack

Straight Connector

Pros:

• Can carry both power and audio signals
• Standardized Design
• Ease of Use

Cons:

• Space Limitations
• Cable Strain

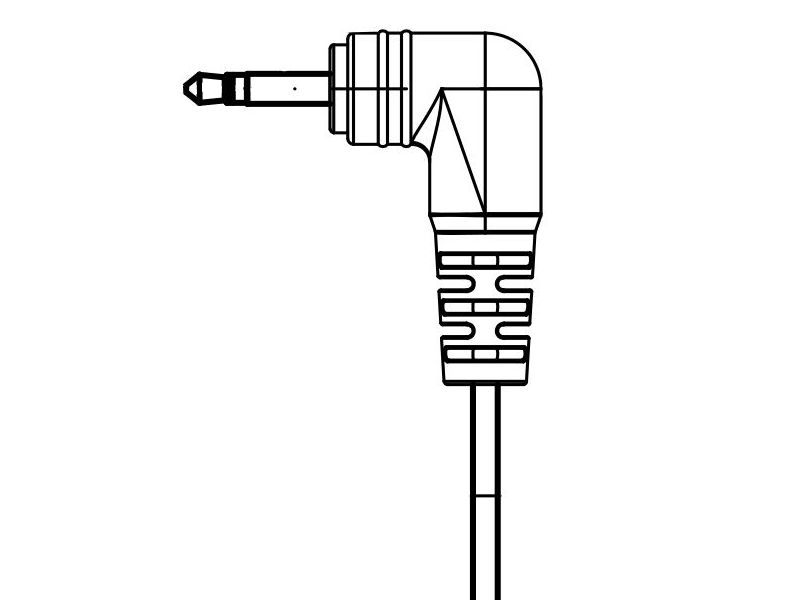

Right Angle Connector

Pros:

• Similar pros to straight connector
• Space-saving design
• Suitable for tight spaces

Cons:

• Similar cons to straight connector
• Limited flexibility in cable routing

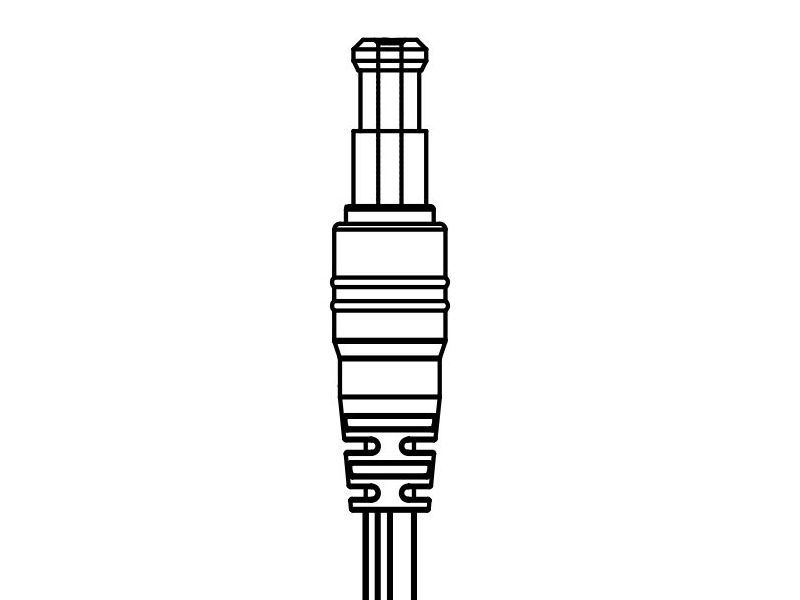

DIN45323

Straight Connector

Pros:

• Robust design
• Suitable for industrial applications
• Secure Connection


Cons:

• Bulky size
• Less common in consumer electronics

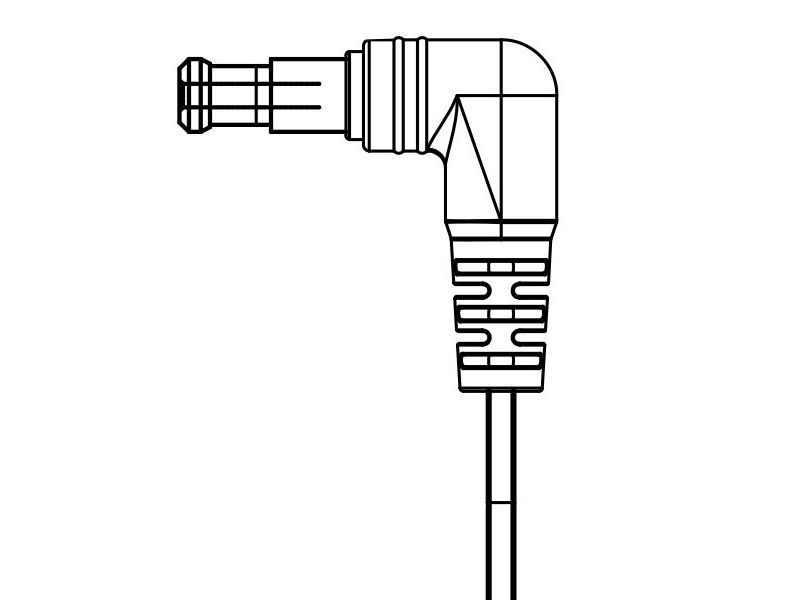

Right Angle Connector

Pros:

• Similar pros to straight connector
• Space-saving design
• Suitable for tight spaces

Cons:

• Similar cons to straight connector
• Limited flexibility in cable routing.

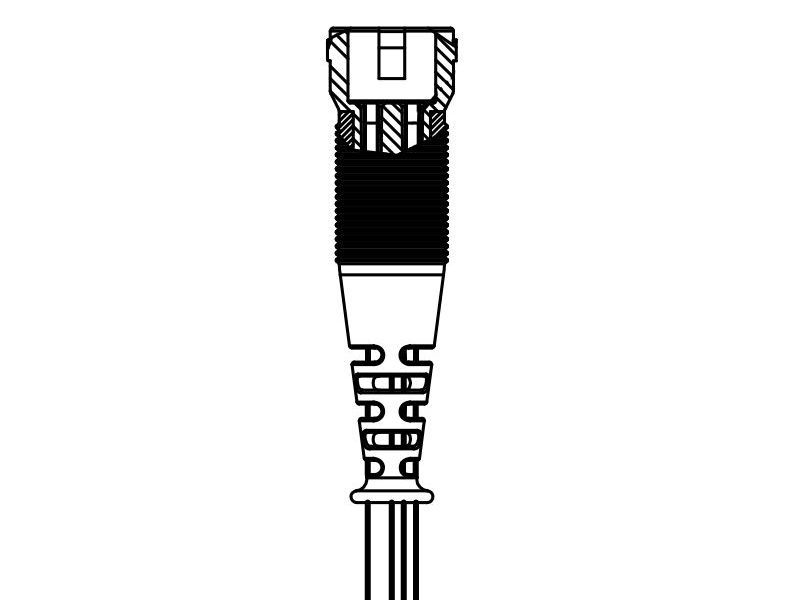

Distribution Lead

Pros:

• Allows multiple connections from a single source
• Simple Installation
• Standardization

Cons:

• must ensure correct orientation of connectors
• Space Limitations

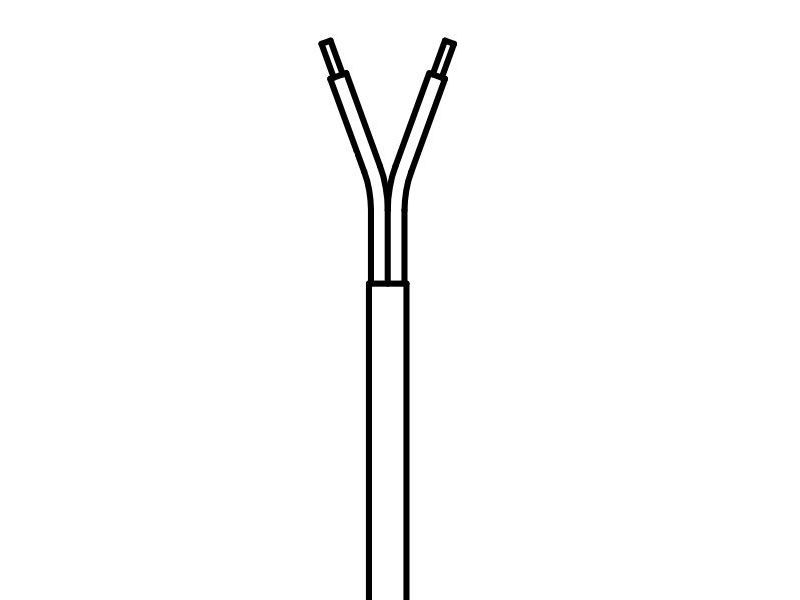

Stripped & Tinned Lead

Pros:

• Customizable length
• Suitable for bespoke installations
• Reliable Connections

Cons:

• Requires additional preparation before use
• Skill requirement to connect DC plugs

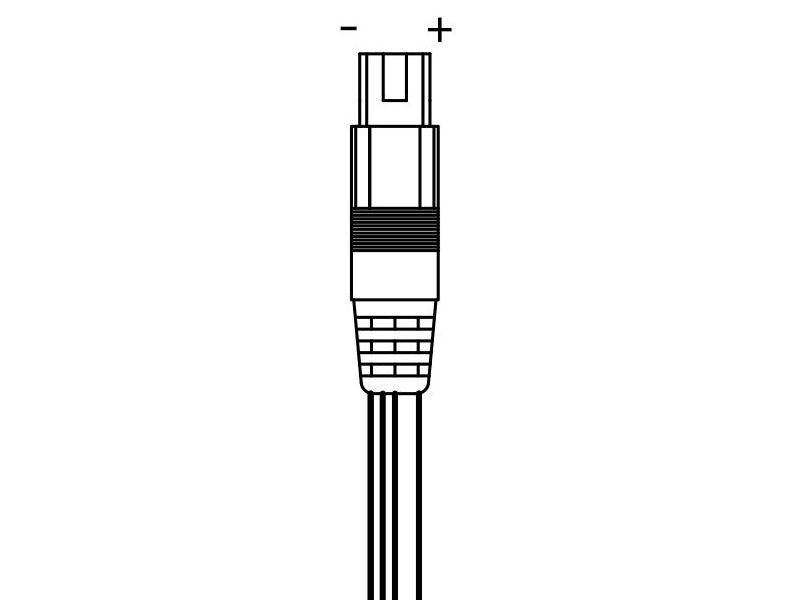

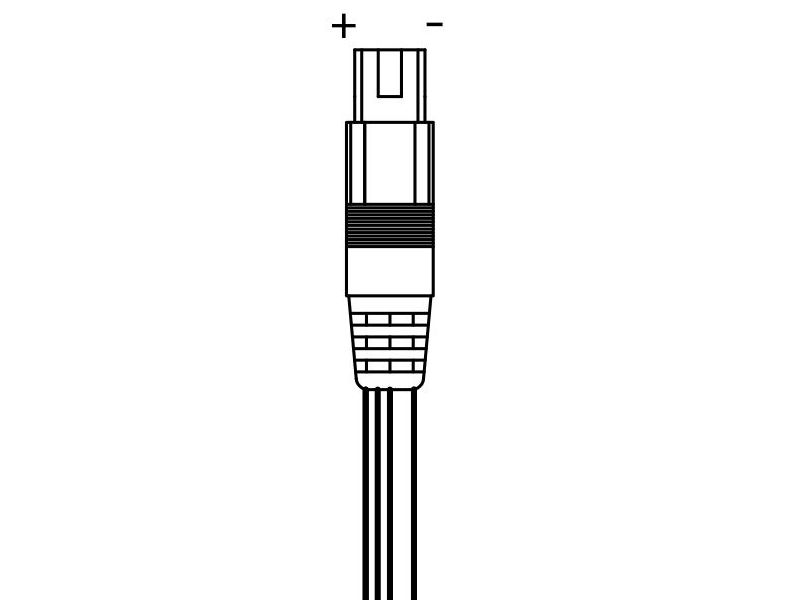

Texas Plug

Pros:

• Polarized design
• Available with left or right pin +
• Prevents reverse polarity connections
• Secure Connection
• Robust Construction


Cons:

• Requires matching socket for proper function
• Cost

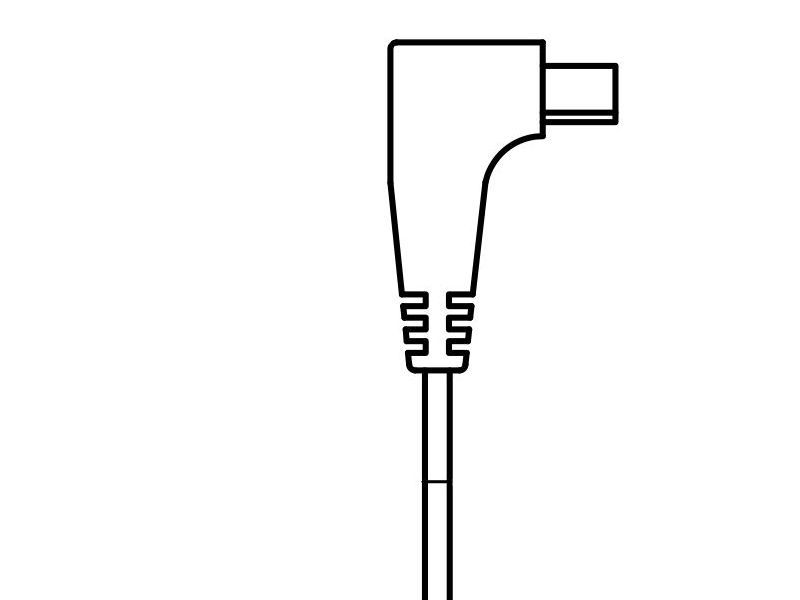

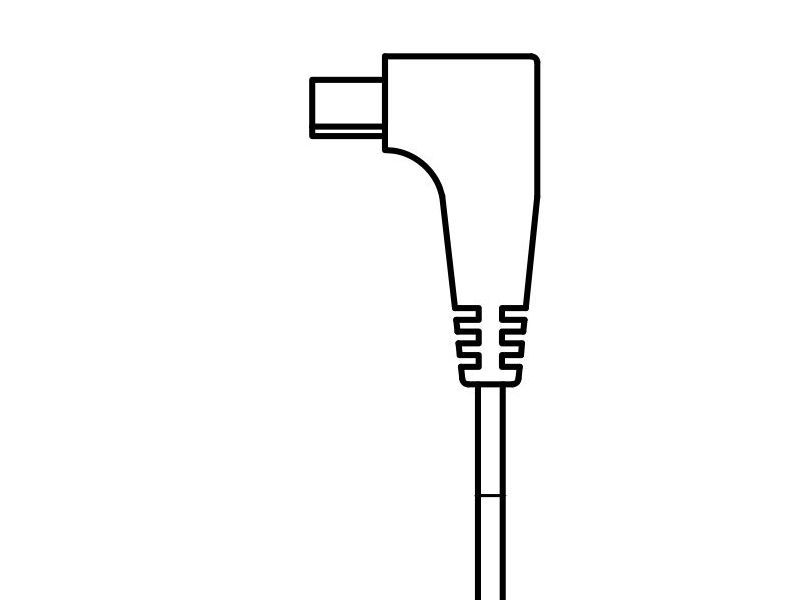

Right-Angle Texas Plug

Pros:

• Polarized design
• Available with left or right pin +
• Prevents reverse polarity connections
• Space-saving design
• Suitable for tight spaces

Cons:

• Requires matching socket for proper function
• Limited flexibility in cable routing

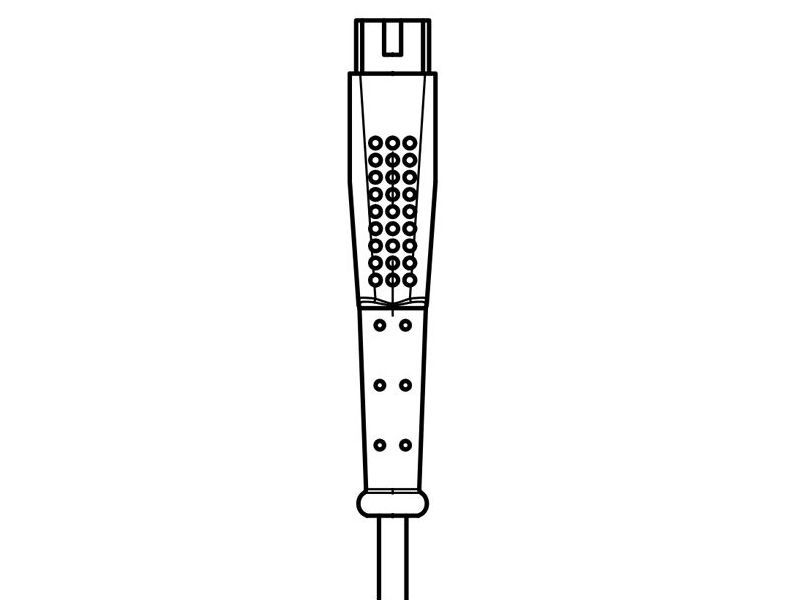

3-Pole Texas Plug

Pros:

• Additional pole for grounding
• Enhanced safety
• Secure Connection

Cons:

• Limited compatibility with standard 2-pole sockets
• Orientation Consideration
• Cost

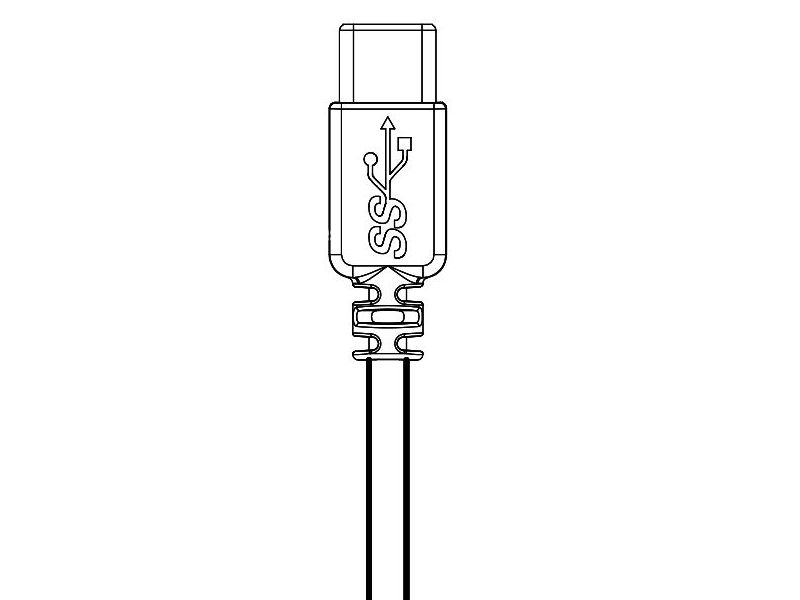

USB Type-C

Pros:

• Reversible design
• Fast data transfer
• Versatile Available with 56 kΩ, 22kΩ or 10 kΩ resistor

Cons:

• Higher cost compared to traditional barrel connectors

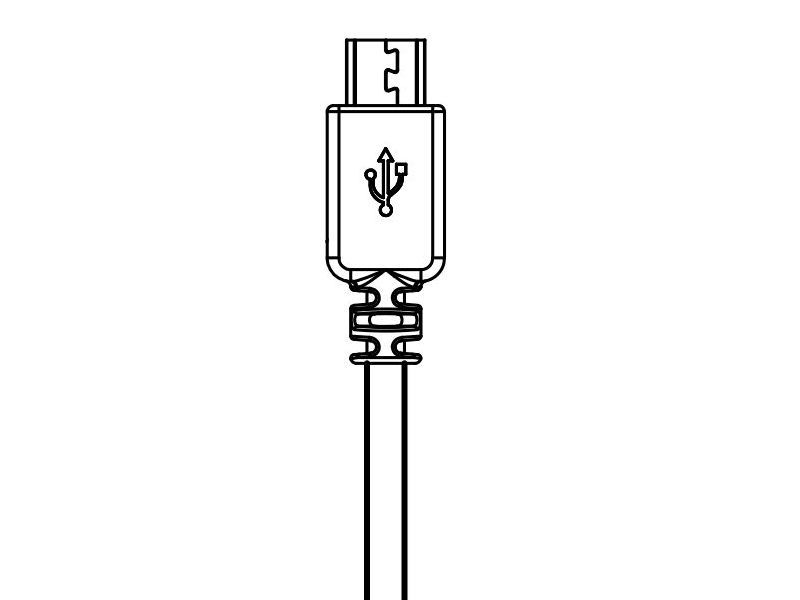

Micro USB

Pros:

• Compact size
• Widely used in mobile devices
• Widely available.

Cons:

• Less robust than other connector types
• Slower data transfer speeds
• Limited charging speeds
• Non-reversible design.

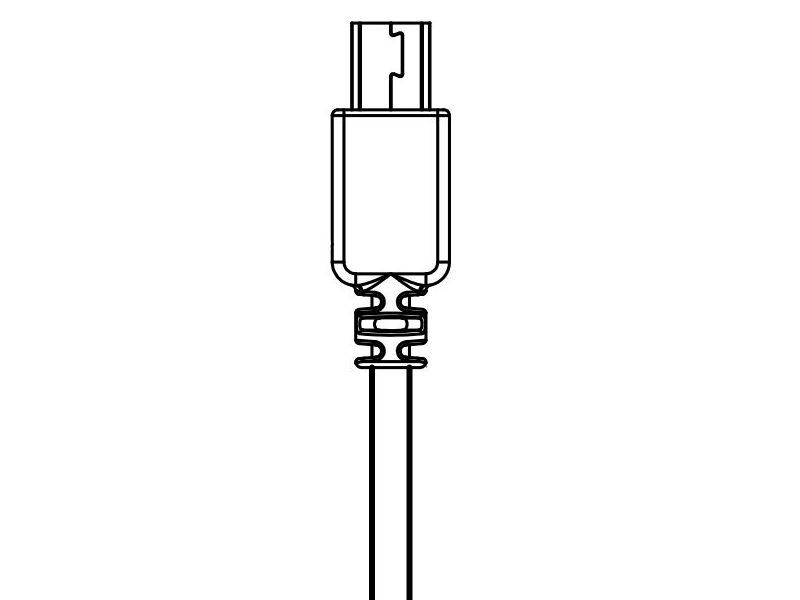

Mini USB

Pros:

• More durable than Micro USB
• Faster data transfer speeds than Micro USB
• Compact Size

Cons:

• Larger than Micro USB
• Limited power capabilities
• Limited availability and adoption
• Non-reversible design

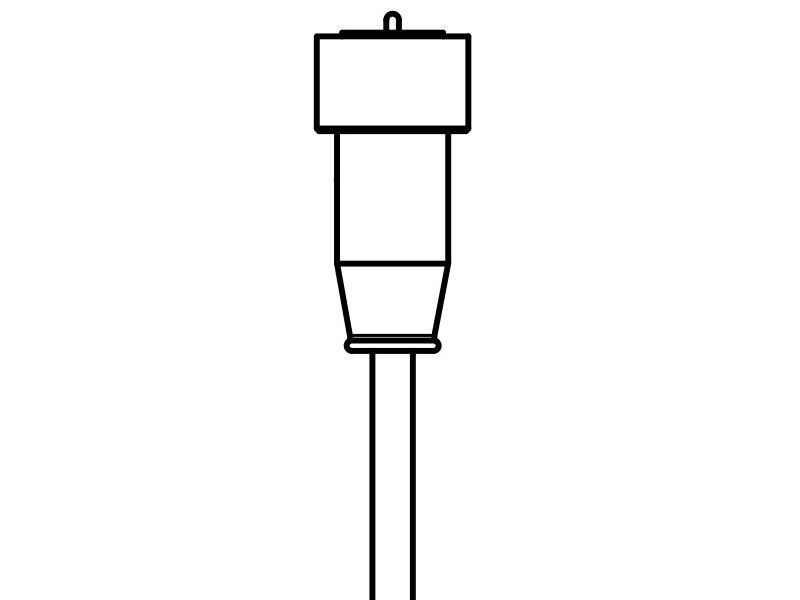

Magnetic Connector

Pros:

• Easy and secure connection
• Prevents damage from accidental pulls

Cons:

• Limited availability and compatibility
• Higher cost

Specialised Connectors
